Repeat steps 1 and 2 with the second ferrite bead at the opposite end of the
3
X.link cable.
Connect your X.link breakout box to your
computer

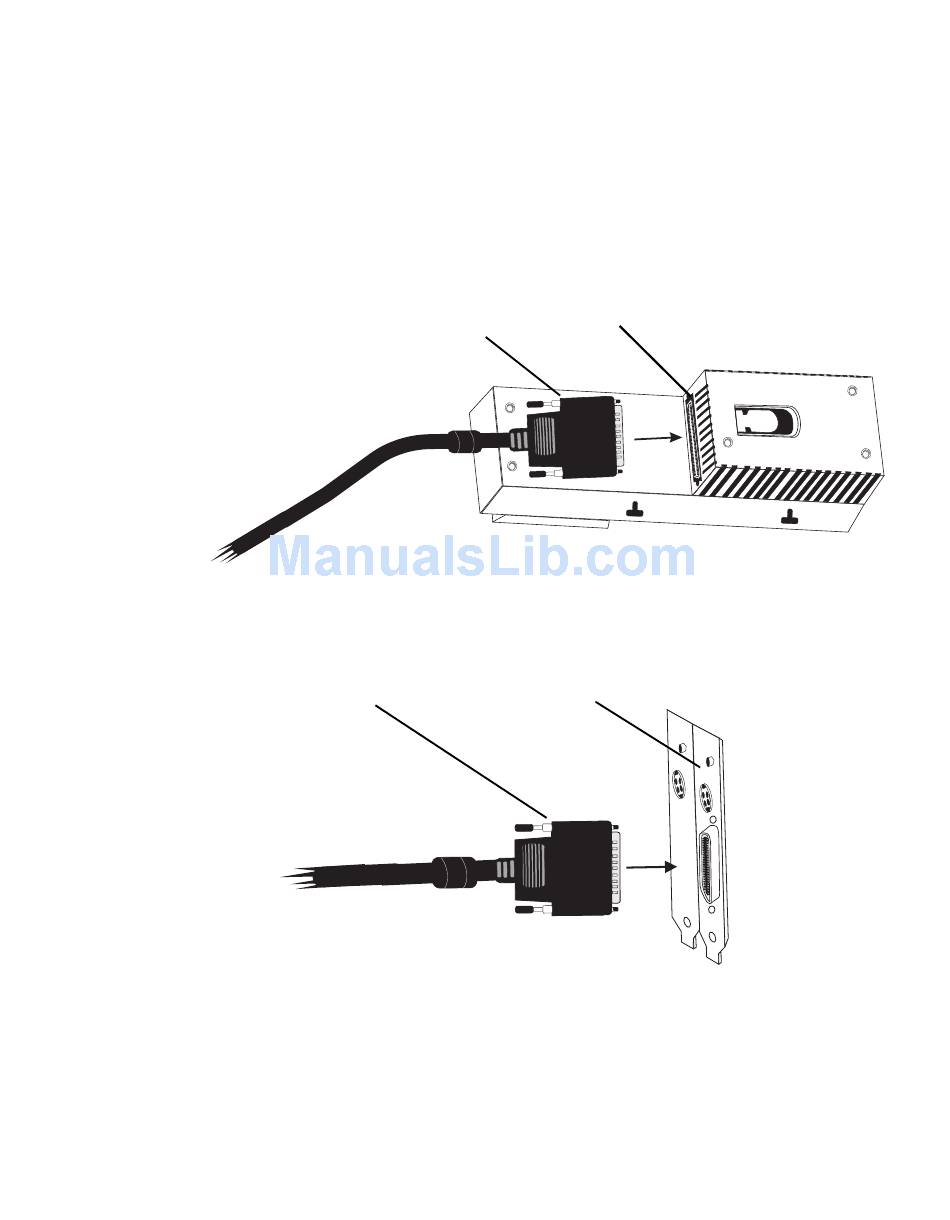

Connect one end of the X.link cable to the X.link connector on the backside
1
of your X.link breakout box. Tighten the thumb screws until snug to ensure a
stable connection.
Attach the opposite end of the X.link cable to the bracket connector on the
2
backplate of your installed X.io card.
X.link cable
²Caution
cause your Matrox Axio system to not perform properly). Also, do not bend
the attached cable too sharply. Excessive bending or flexing can damage
internal, shielded wires.
X.link cable
Use extra care when attaching the X.link connectors (bent pins can

Connect your X.link breakout box to your computer

X.link cable
connector
X.io card
39
