Specifying your video output settings (X.linkLE)

You can specify various settings to configure your video output signals from the
X.linkLE breakout box, such as to specify your main and secondary SDI output
formats, analog output format, and the setup level for NTSC analog video.
Advanced settings, such as horizontal delay and SC/H phase adjustments are
provided on a separate page.

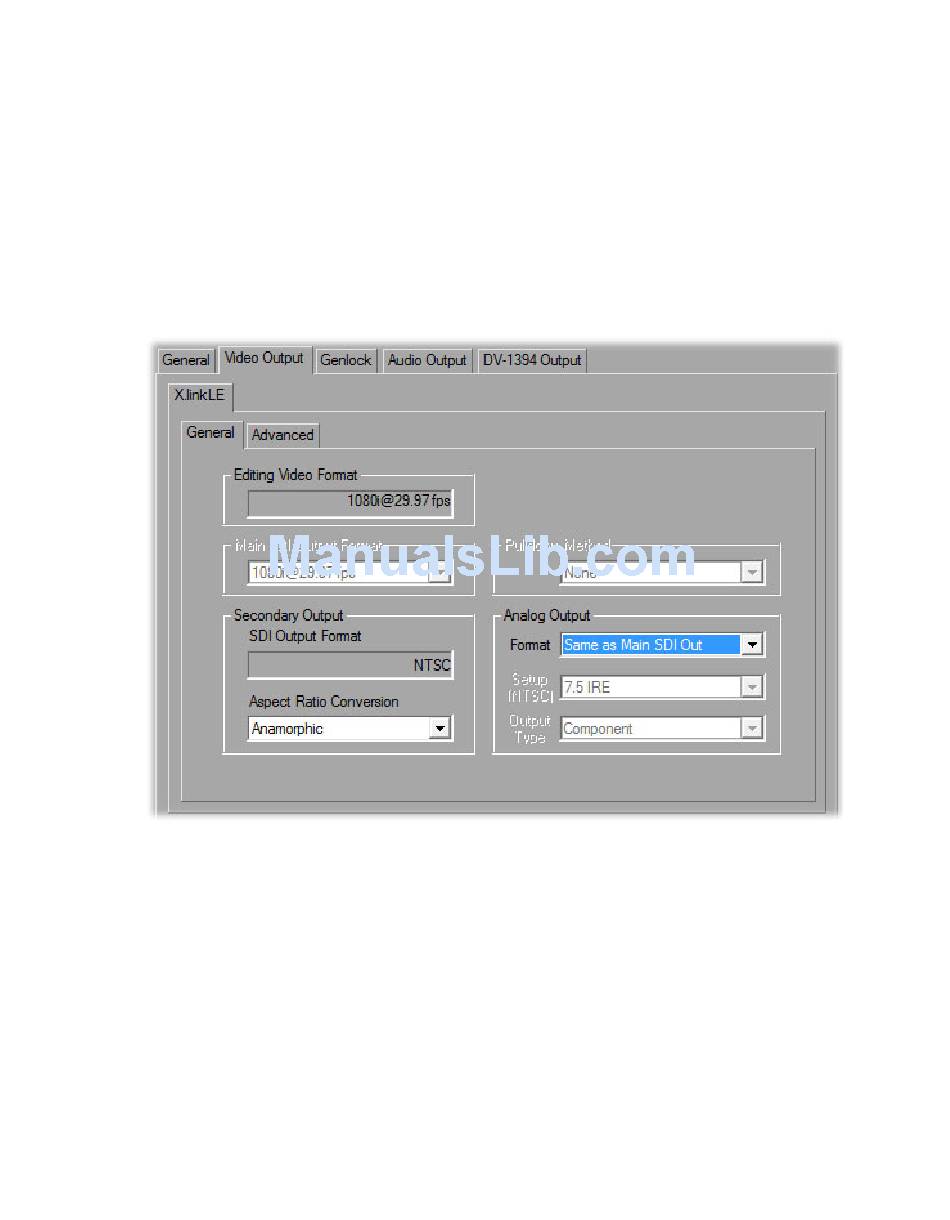

° To specify your video output settings:
Choose Sequence > Sequence Settings and click the Playback
1
Settings
Click the Video Output tab, then click the General tab.
2
Under Main SDI Output Format , select the video format you want for your
3
main SDI output (SDI OUT 1) from the X.linkLE breakout box. Depending
on your sequence's video format, you may not be able to change the main
SDI output format.
¦ Note
supports SD-SDI video only. If you're working with an HD sequence, your
secondary SDI output format will be set to NTSC or PAL depending on your
sequence's video format, and the video output will be downconverted (this
includes appropriate color space conversion from HD to SD). The second SDI
output won't be available, however, for a 1080p @ 24 fps sequence.
Chapter 7, Defining Your Adobe Premiere Pro Settings
button.
The second SDI output (SDI OUT 2) from the X.linkLE breakout box
