164

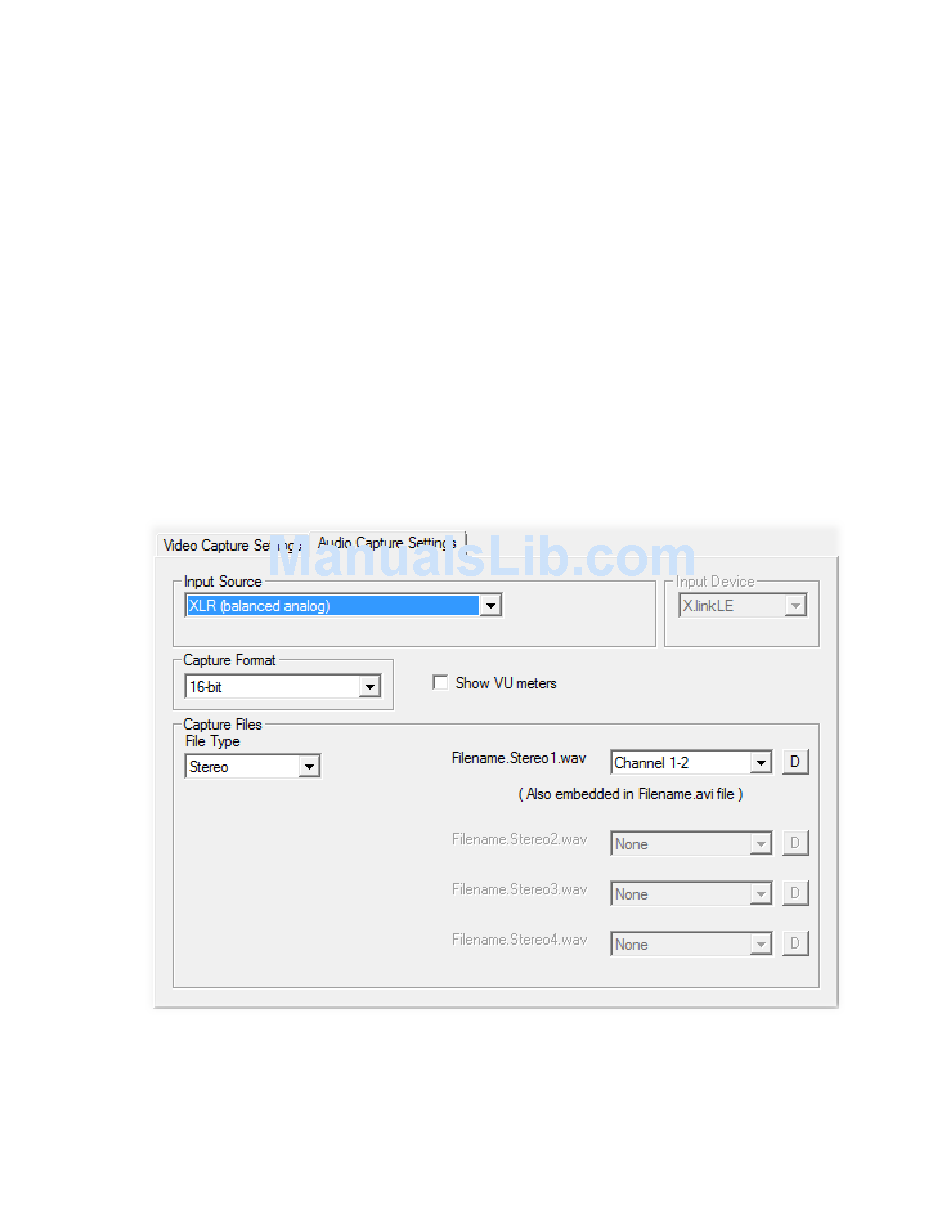

Specifying your audio capture settings
You can specify various audio capture settings, such as to specify the type of
audio files (either stereo .wav or mono .wav) that you want to create when
capturing audio in A/V Tools.
Remarks
• When you capture to an .avi file using A/V Tools, the clip's video and audio
are saved to the .avi file, and the clip's audio is also saved to one or more
separate .wav files. You could choose to edit the separate .wav files using
audio post-processing software, such as Adobe Soundbooth.
• The separate .wav files are not supported in the A/V Tools clip list, but you
can import them into Adobe Premiere Pro.
° To specify your settings for capturing audio in A/V Tools:
Click the Options button in the Matrox A/V Tools dialog box.
1
Click the Capture Settings button. This displays the Matrox Capture
2
Settings
Click the Audio Capture Settings tab.
3
Under Input Source , select the audio input source you want to capture. For
4
example, if you want to capture the embedded audio of your SDI source,
select SDI (embedded audio) .
¦ Note
audio on Axio LE, you can set your audio capture source to SDI (embedded
Chapter 9, Using Matrox A/V Tools
dialog box.
If you experience dropped frames when capturing embedded SDI
