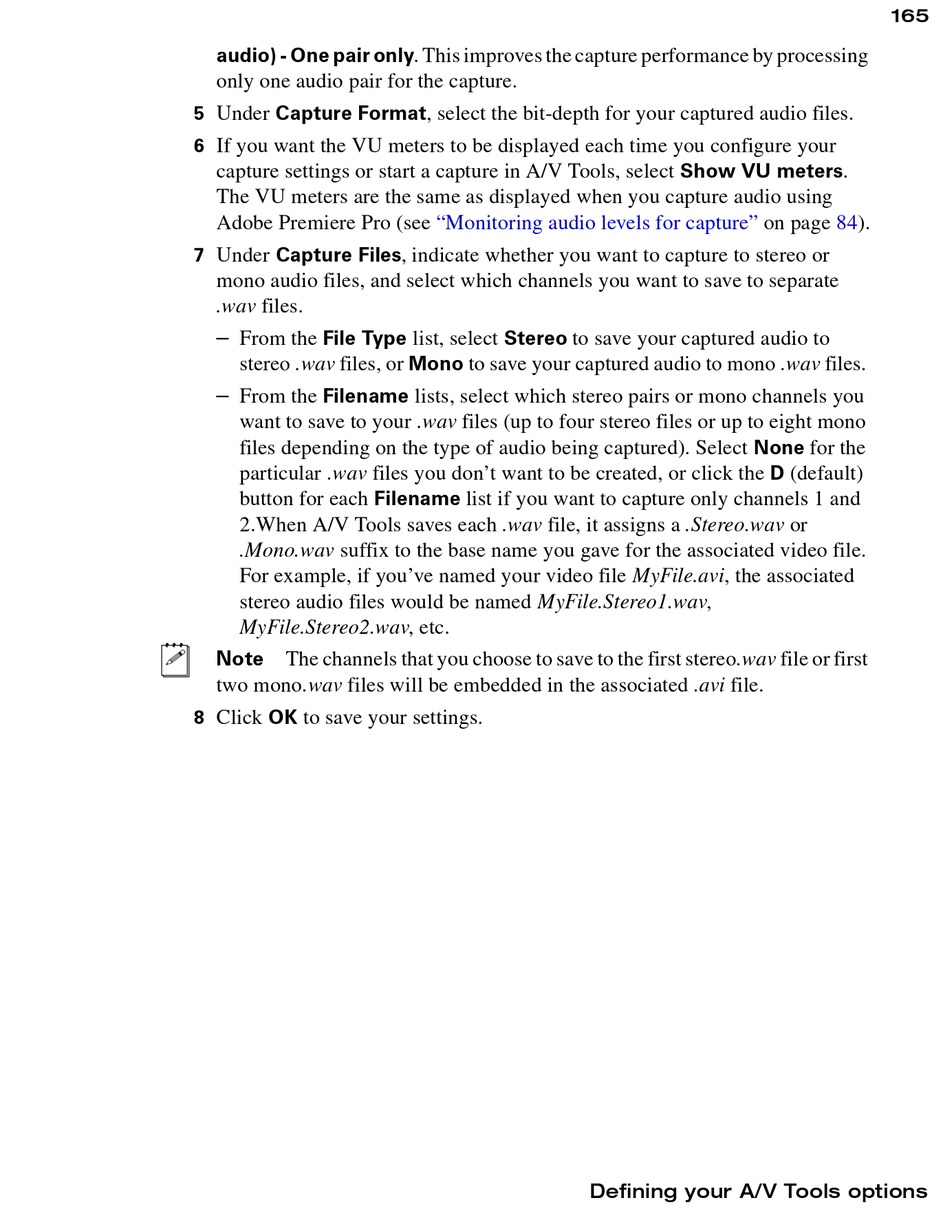

audio) - One pair only
only one audio pair for the capture.
Under Capture Format , select the bit-depth for your captured audio files.
5
If you want the VU meters to be displayed each time you configure your
6
capture settings or start a capture in A/V Tools, select Show VU meters .
The VU meters are the same as displayed when you capture audio using
Adobe Premiere Pro (see
Under Capture Files , indicate whether you want to capture to stereo or
7
mono audio files, and select which channels you want to save to separate
.wav files.
From the File Type list, select Stereo to save your captured audio to
$
stereo .wav files, or Mono to save your captured audio to mono .wav files.
From the Filename lists, select which stereo pairs or mono channels you
$
want to save to your .wav files (up to four stereo files or up to eight mono
files depending on the type of audio being captured). Select None for the
particular .wav files you don't want to be created, or click the D (default)
button for each Filename list if you want to capture only channels 1 and
2.When A/V Tools saves each .wav file, it assigns a .Stereo.wav or
.Mono.wav suffix to the base name you gave for the associated video file.
For example, if you've named your video file MyFile.avi, the associated
stereo audio files would be named MyFile.Stereo1.wav,
MyFile.Stereo2.wav, etc.
¦ Note
The channels that you choose to save to the first stereo.wav file or first
two mono.wav files will be embedded in the associated .avi file.
Click OK to save your settings.
8
. This improves the capture performance by processing
"Monitoring audio levels for capture"
Defining your A/V Tools options
165
on page 84).
