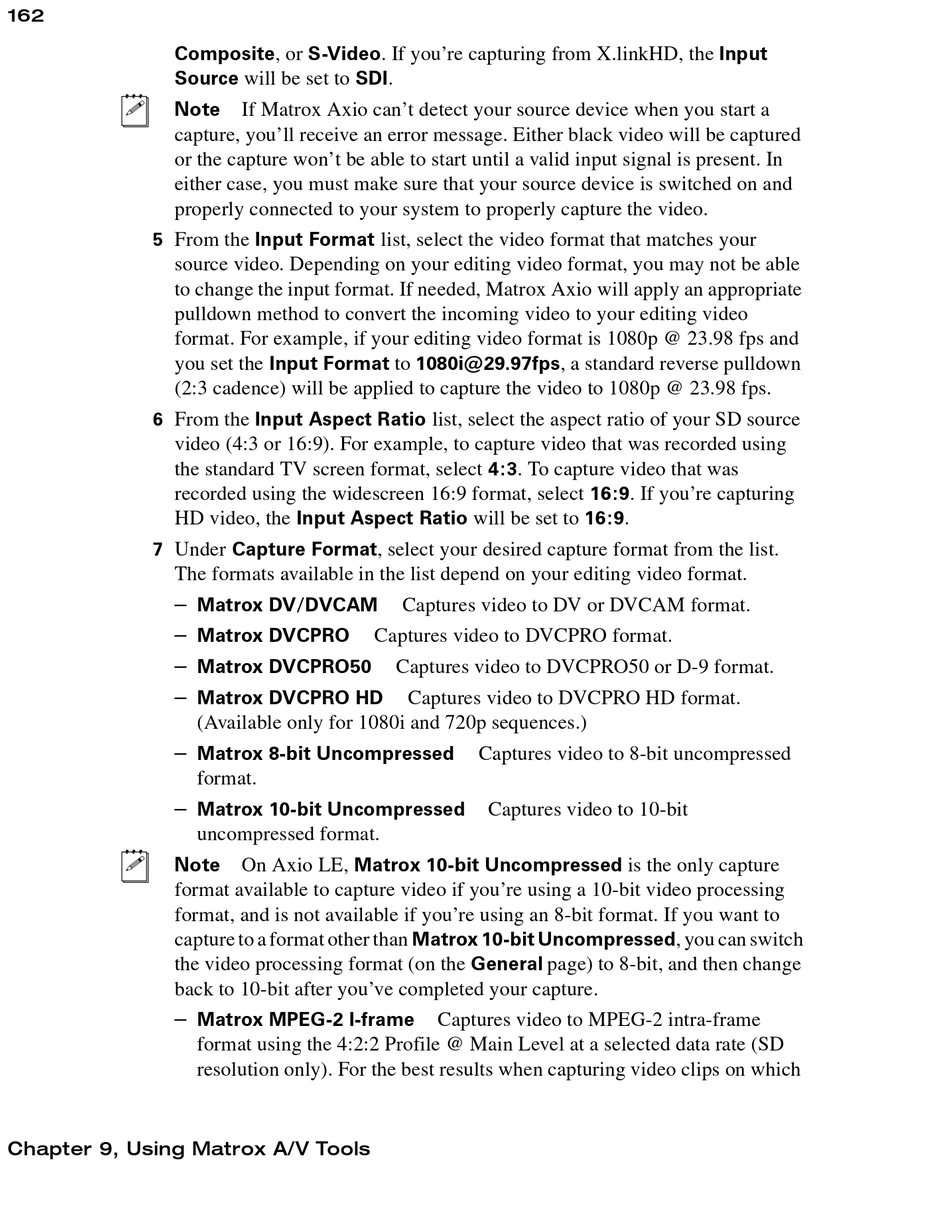

Matrox Axio Installation And User Manual page 182

162
Composite
Source
¦ Note
capture, you'll receive an error message. Either black video will be captured
or the capture won't be able to start until a valid input signal is present. In
either case, you must make sure that your source device is switched on and
properly connected to your system to properly capture the video.
5 From the Input Format list, select the video format that matches your
source video. Depending on your editing video format, you may not be able
to change the input format. If needed, Matrox Axio will apply an appropriate
pulldown method to convert the incoming video to your editing video
format. For example, if your editing video format is 1080p @ 23.98 fps and
you set the Input Format to 1080i@29.97fps , a standard reverse pulldown
(2:3 cadence) will be applied to capture the video to 1080p @ 23.98 fps.
From the Input Aspect Ratio list, select the aspect ratio of your SD source
6
video (4:3 or 16:9). For example, to capture video that was recorded using
the standard TV screen format, select 4:3 . To capture video that was
recorded using the widescreen 16:9 format, select 16:9 . If you're capturing
HD video, the Input Aspect Ratio will be set to 16:9 .
Under Capture Format , select your desired capture format from the list.
7
The formats available in the list depend on your editing video format.
$
$
$
$
$
$
¦ Note
format available to capture video if you're using a 10-bit video processing
format, and is not available if you're using an 8-bit format. If you want to
capture to a format other than Matrox 10-bit Uncompressed , you can switch
the video processing format (on the General page) to 8-bit, and then change
back to 10-bit after you've completed your capture.
$
Chapter 9, Using Matrox A/V Tools
, or S-Video . If you're capturing from X.linkHD, the Input
will be set to SDI .
If Matrox Axio can't detect your source device when you start a
Matrox DV/DVCAM
Matrox DVCPRO
Matrox DVCPRO50
Matrox DVCPRO HD
(Available only for 1080i and 720p sequences.)
Matrox 8-bit Uncompressed
format.
Matrox 10-bit Uncompressed
uncompressed format.
On Axio LE, Matrox 10-bit Uncompressed is the only capture
Matrox MPEG-2 I-frame
format using the 4:2:2 Profile @ Main Level at a selected data rate (SD
resolution only). For the best results when capturing video clips on which
Captures video to DV or DVCAM format.
Captures video to DVCPRO format.
Captures video to DVCPRO50 or D-9 format.
Captures video to DVCPRO HD format.
Captures video to 8-bit uncompressed
Captures video to 10-bit
Captures video to MPEG-2 intra-frame
