Matrox Axio Installation And User Manual page 42

22

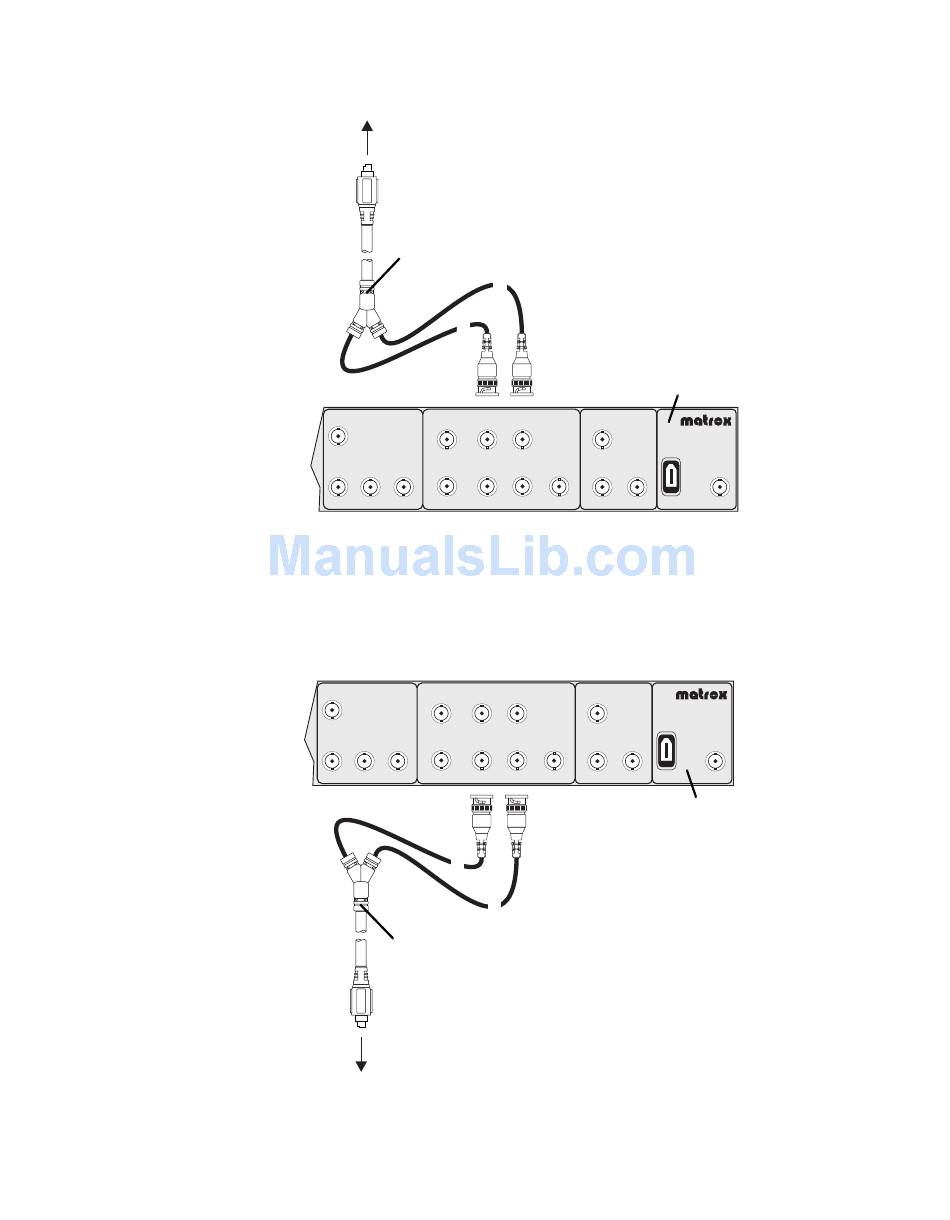

For S-Video output, connect the S-Video adapter cable labeled Y to the Pb/Y
3
OUT connector, and connect the S-Video adapter cable labeled C to the Pr/C
OUT connector, at the front of the X.linkLE breakout box.
Connect the other end of the cable to the S-Video IN connector on your
4
record device.
Chapter 3, Connecting External Devices to Matrox Axio LE
To S-Video OUT connector
on source device
X.linkLE S-Video adapter cable
IN 1/2 Y/CVBS IN
DIGITAL AUDIO
AES/EBU
Y/CVBS OUT Pb/Y OUT Pr/C OUT
OUT 1/2 OUT 3/4 OUT 5/6
IN 1/2 Y/CVBS IN
DIGITAL AUDIO
AES/EBU
OUT 1/2 OUT 3/4 OUT 5/6 Y/CVBS OUT Pb/Y OUT Pr/C OUT
X.linkLE S-Video adapter cable
To S-Video IN connector
on record device
C
Y
Pb/Y IN Pr/C IN IN
ANALOG
SDI
VIDEO
CVBS OUT OUT 1 OUT 2
Pb/Y IN Pr/C IN IN
ANALOG
SDI
VIDEO
CVBS OUT
OUT 1 OUT 2
Y
C
X.linkLE breakout
box (partial view)
REF IN
75 OHM
1394
REF IN
1394 75 OHM
X.linkLE breakout
box (partial view)
