4.
Use a #2 Phillips-head screwdriver to tighten the captive screws on each side of the
DC power supply to secure it to the chassis.
5.
Attach wires to the terminal blocks on the front of the unit. To attach a wire, loosen the
terminal screw, insert the exposed end of the wire, and tighten the terminal screw.
6.
Connect the safety ground wire to a reliable earth ground.
7.
Connect the DC input wiring to a DC power source. See
diagram of the wiring connections between the SSR and a DC power source.
Installing the Control Module
The primary Control Module always resides in the CM slot. If you need to replace the
primary Control Module in the CM slot, or you want to install a redundant Control
Module in slot CM/1, use the following procedure. You will need a #2 Phillips-head
screwdriver to perform this procedure.
The primary Control Module must be installed in slot CM. The redundant Control
Module must be installed in slot CM/1. (See
the chassis slots.)
Figure 34
the figure describes how to do this.
Card Guides
Circuit Card
Metal Plate
To install the Control Module:
SSR 8000/8600 Getting Started Guide
shows an example of how to install a Control Module. The procedure following
SSR-CM-2
10/100 Mgmt
Console
SSR-8

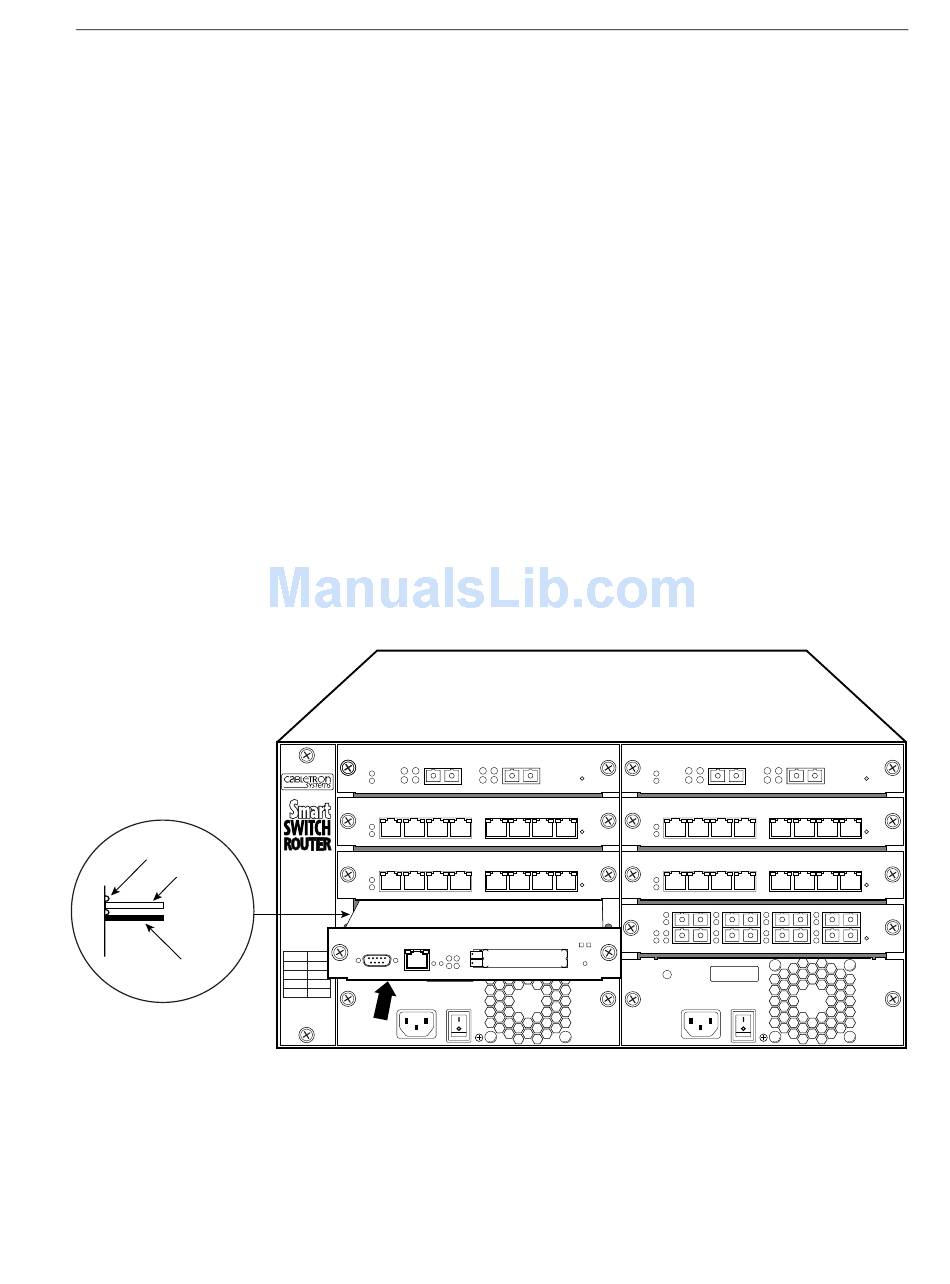

Figure 34. Installing a Control Module
Chapter 2: Hardware Installation
Figure 32
"Chassis" on page 12
CONTROL MODULE
and
Figure 33
for a
for information about
63
