SSR 8600 DC Power Supply
Figure 30
The SSR 8600 DC power supply has a five-terminal wiring block on the front panel. The
wiring block contains two positive(+) terminals, two negative(-) terminals, and a safety
ground. The DC supply is designed to be powered by a 48 Volt DC source.
Internally, the SSR 8600 DC power supply consists of two separate power supplies. Each
of these internal power supplies must be energized to produce sufficient power for the
SSR 8600 to operate. Each internal power supply is connected to source power through a
pair of positive (+) and negative (-) wiring lugs on the wiring block.
internal relationship of the wiring lugs of the SSR 8600 DC power supply.
Note:
For the SSR 8600 to work properly, both positive (+) terminals and both negative
(-) terminals of the SSR 8600 DC power supply MUST be connected to the DC
source.
SSR 8000/8600 Getting Started Guide

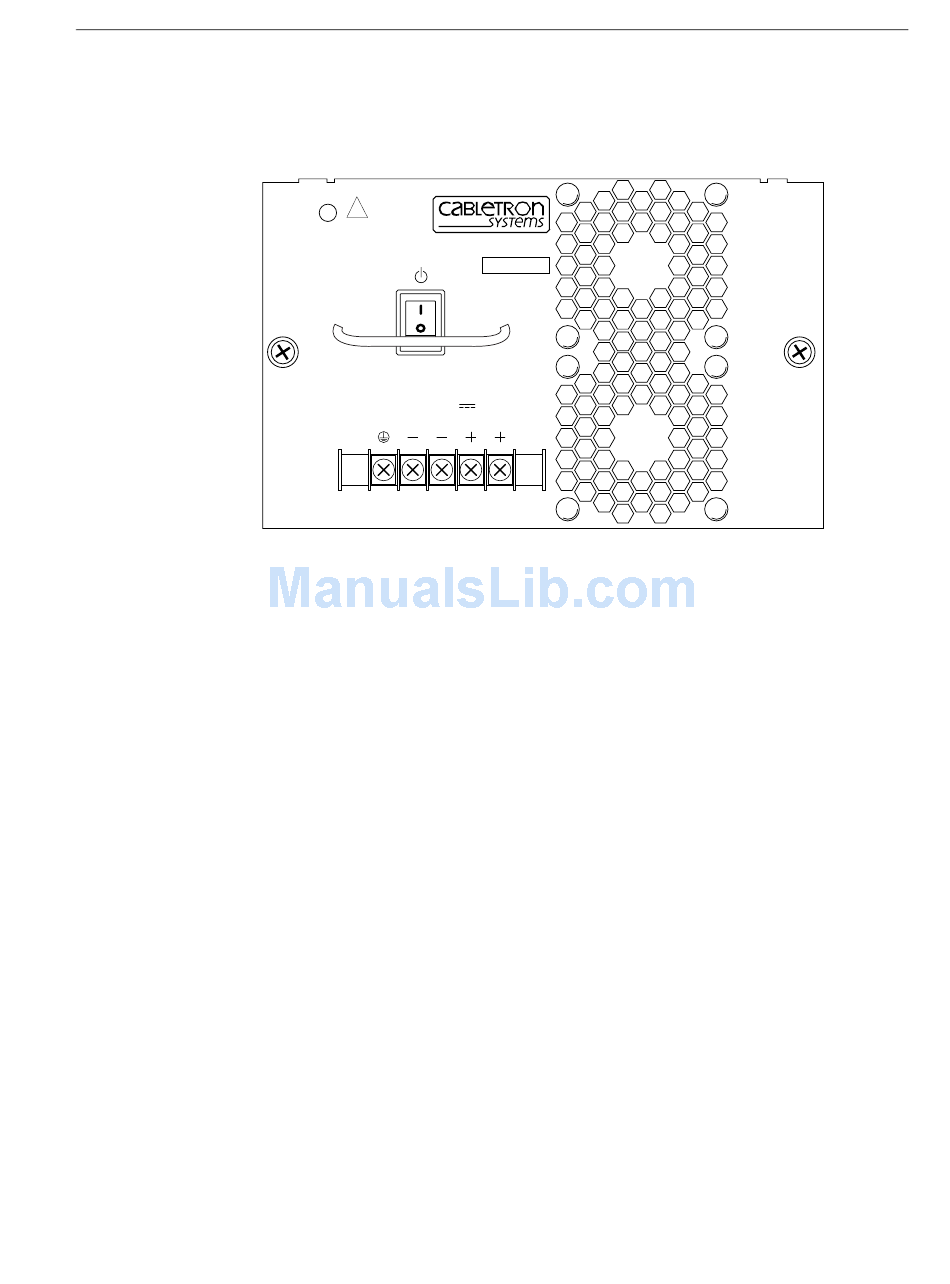

shows the front view of an SSR 8600 DC Power Supply.
To be installed in a restricted
!
access area in accordance
with the NEC or authority
having jurisdiction.
See manual for installation
PWR
instructions.
48/60V
27A MAX
Figure 30. Front View of an SSR 8600 DC Power Supply
SSR-PS-16-DC
SN
Chapter 2: Hardware Installation
Figure 31
shows the
59
