Chapter 1: Features Overview
External Controls
The Control Module has the following external controls. Where appropriate, this guide
describes how to use the controls.
•
Male DB-9 Data Communications Equipment (DCE) port for serial connection from a
management terminal. Use this port to establish a direct CLI connection to the SSR. The
default baud rate is 9600.
•
10/100Base-TX Data Terminal Equipment (DTE) port for network ("in-band")
connection from a management terminal. The port is configured as a Media Data
Interface (MDI). Use this port to establish a CoreWatch management connection to the
SSR over a local or bridged Ethernet segment.
•
Reset switch (RST). Use this switch to reboot the SSR's CPU.
•
Status LEDs. These LEDs indicate whether the Control Module is online or offline.
•
PCMCIA flash memory slots. These slots let you install system image software
upgrades as well as older system image software versions.
Note:
You can install a PCMCIA card in either slot but you cannot use two PCMCIA
cards at the same time.
AC Power Supply
The power supply delivers 3.3, 5, and 12 DC volts to the SSR's Control Module(s), fan
modules, and other components. A single power supply provides enough current to
operate a fully-configured chassis. The power supply has its own internal cooling fan. The
vent on the front of the power supply is the inlet vent for the cooling fan.

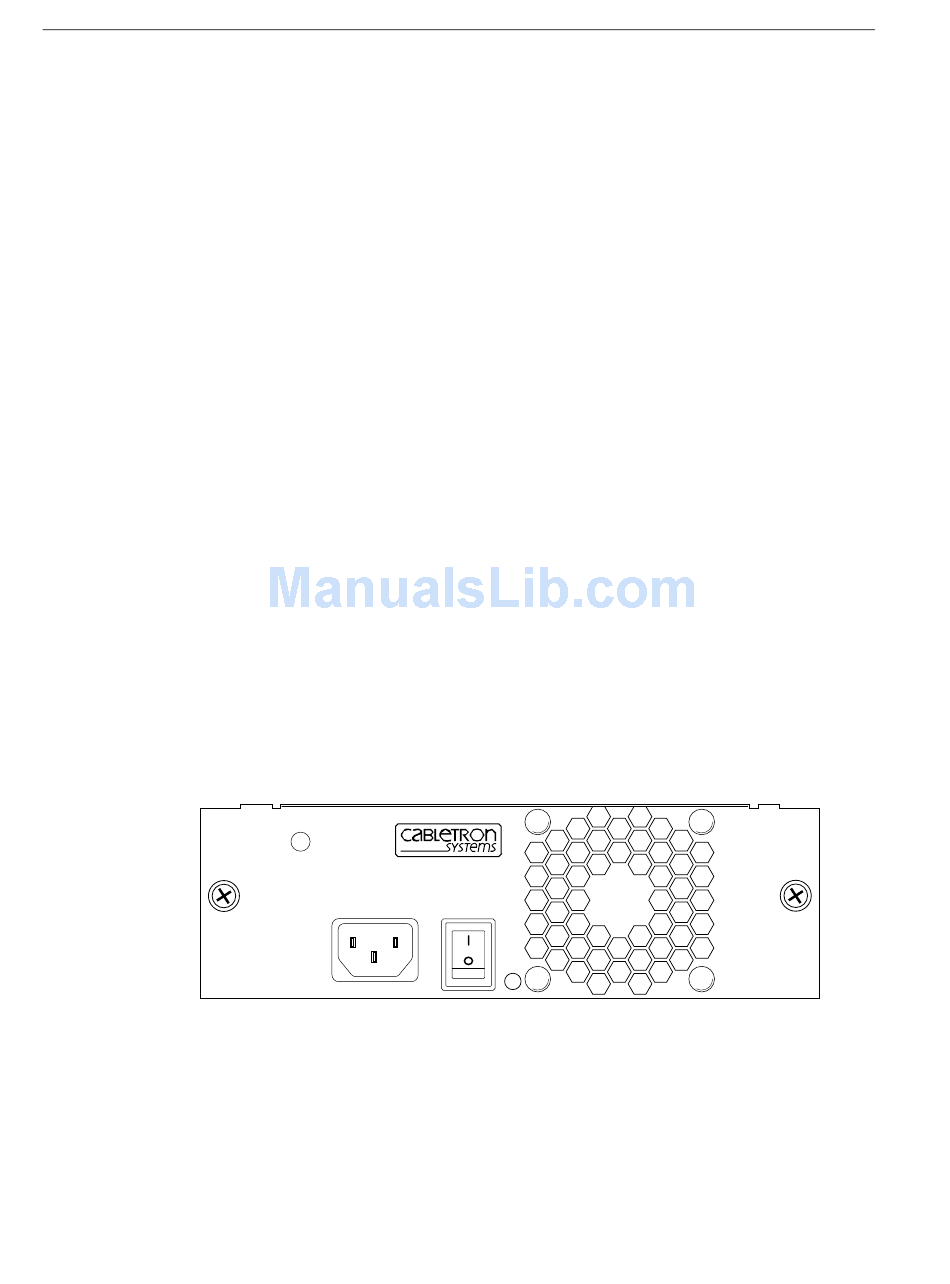

Figure 4
shows the front view of an SSR 8000 AC power supply.
16
PWR
SSR-PS-8
100-125~5A
200-240~3A
50-60 Hz
Figure 4. Front view of an SSR 8000 AC power supply
SSR 8000/8600 Getting Started Guide
