7F06-02 FDDI SmartSWITCH

Interface Module

User's Guide
9031672-01

Advertisement

Table of Contents
loading

Related Manuals for Cabletron Systems SmartSWITCH 7F06-02

Summary of Contents for Cabletron Systems SmartSWITCH 7F06-02

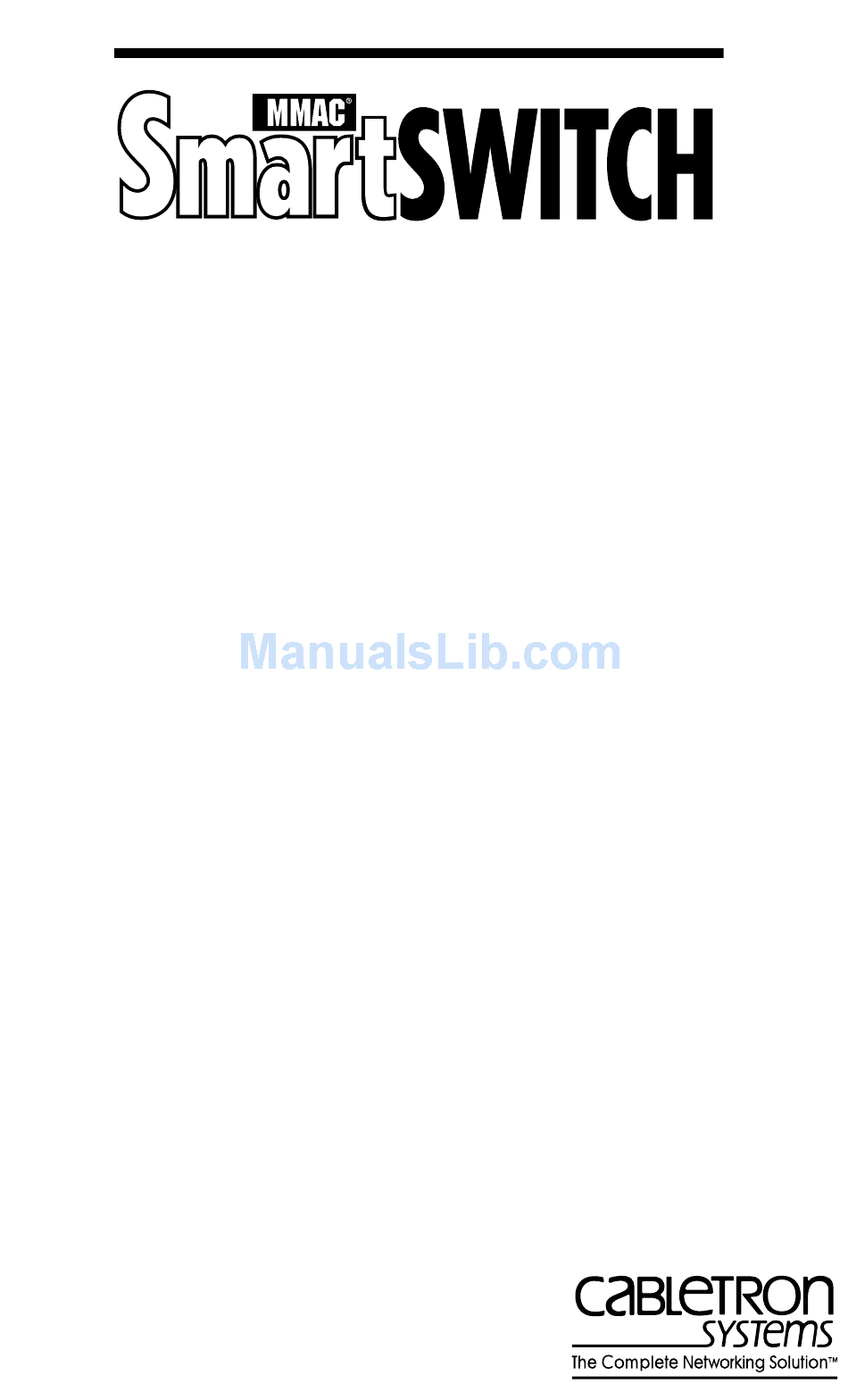

  • Page 1: Interface Module

    ™ 7F06-02 FDDI SmartSWITCH Interface Module User’s Guide 9031672-01...
  • Page 2 The hardware, firmware, or software described in this manual is subject to change without notice. In no event shall Cabletron Systems be liable for any incidental, indirect, special, or consequential damages whatsoever (including but not limited to lost profits) arising out of or related to this...

  • Page 3: Fcc Notice

    Notice FCC NOTICE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 4 Notice VCCI NOTICE This equipment is in the 1st Class Category (information equipment to be used in commercial and/or industrial areas) and conforms to the standards set by the Voluntary Control Council for Interference by Information Technology Equipment (VCCI) aimed at preventing radio interference in commercial and/or industrial areas.

  • Page 5: Table Of Contents

    CHAPTER 3 INSTALLATION/REMOVAL 3.1 UNPACKING THE 7F06-2 MODULE...3-1 3.2 INSTALLING FPIMS ...3-1 3.3 INSTALLING/REMOVING THE 7F06-02 MODULE ...3-2 3.3.1 Installing in the 7C03 SmartSwitch ...3-2 3.3.2 Removing from the7C03 SmartSwitch...3-3 3.3.3 Installing in the 7C04 or 7C04-R Workgroup SmartSwitch ...3-5 3.3.4 Removing from the 7C04 or 7C04-R Workgroup SmartSwitch.3-...
  • Page 6 Contents 5.7 PHYSICAL ...5-2 5.7.1 Dimensions ...5-2 5.7.2 Weight ...5-2...

  • Page 7: Chapter 1 Introduction

    The 7F06-02 Module is a two port FDDI module. This module connects to a network and the 7X00 SmartSwitch™ Control Module in the 7C03,7C04 or 7C04-R MMAC SmartSwitch via a SmartSwitch bus.

  • Page 8: The 7F06-02 Module

    INTRODUCTION 1.2 THE 7F06-02 MODULE The 7F06-02 Module provides two Fiber Optic ports via front panel FPIM modules. 1.2.1 Cable Type and FPIMs The 7F06-02 module has two front panel connectors that interface to the 7X00 Smart Switch Module through the chassis backplane.

  • Page 9: 7C03 Mmac Smartswitch, The 7C04 Workgroup Smartswitch And The 7C04-R Workgroup Smartswitch

    1.2.2 7C03 MMAC SmartSwitch, the 7C04 Workgroup SmartSwitch and the 7C04-R Workgroup SmartSwitch The 7F06-02 Module is designed to be installed in the 7C03 MMAC SmartSwitch, the 7C04 Workgroup SmartSwitch or the 7C04-R Workgroup SmartSwitch. The modular design of the 7C03 MMAC SmartSwitch allows other...

  • Page 10: Features

    INTRODUCTION Token Ring to be used with the 7F06-02 Module. These modules provide the capability to share data without the use of external bridges or routers. The 7C03 MMAC SmartSwitch is a unique module that can be installed in an MMAC Series chassis. The 7C04 Workgroup SmartSwitch and the 7C04-R Workgroup SmartSwitch are stand- alone chassis that provide the same functions.

  • Page 11: Related Manuals

    7C04-R Workgroup SmartSwitch Installation Guide 1.5 GETTING HELP If you need additional support with the 7C03 MMAC SmartSWITCH, or if you have any questions, comments or suggestions concerning this manual, contact Cabletron Systems Technical Support: By phone: By fax: By World Wide Web:...

  • Page 12: Chapter 2 Network Requirements

    Before installing Cabletron Systems 7F06-02 Module, review the network requirements outlined in this chapter. All requirements included in this chapter should be met to ensure satisfactory performance of the 7F06-02 Module. Failure to do so may result in unsatisfactory network performance. 2.1 FPIM MODULE SPECIFICATIONS This module uses Fiber Port Interface Modules (FPIM) to provide front panel cable connections.
  • Page 13 NETWORK REQUIREMENTS Transmitter power parameters are listed in Table 2-2. Table 2-2. Transmitter Power Parameters Parameter 50/125 m -13.0 dBm fiber 62.5/125 -10.0 dBm m fiber 100/140 -7.0 dBm m fiber Error Rate Better than The link distance is up to 2 kilometers on the multimode fiber- optic cable as specified by ANSI MMF-PMD.

  • Page 14: Fpim-02 And Fpim-04

    2.1.2 FPIM-02 and FPIM-04 The FPIM-02 has an RJ-45 connector supporting an Unshielded Twisted Pair (UTP) connection. The FPIM-04 has an RJ-45 connector supporting a Shielded Twisted Pair (STP) connection. The pinouts for both are listed in Table 2-3. Table 2-3. FPIM-02 and FPIM-04 Pinouts Pin Number The link distance is up to 100 meters on unshielded twisted pair cable as specified by ANSI TP-PMD.

  • Page 15: Fpim-05 And Fpim-07

    NETWORK REQUIREMENTS 2.1.3 FPIM-05 and FPIM-07 The FPIM-05 and FPIM-07 provide a Single-mode fiber connection. The FPIM-05 uses a MIC style connector and the FPIM-07 uses an SC type connector. The specifications for both devices are listed in Table 2-4. Table 2-4.

  • Page 16: Chapter 3 Installation/Removal

    DO NOT install the module; contact Cabletron Systems Technical Support. 3.2 INSTALLING FPIMS The 7F06-02 module is shipped without FPIMs. To install an FPIM, follow the procedure below: 1. Remove the module if it is installed in the 7C03 MMAC SmartSWITCH chassis by reversing the procedure in Section 3.3.

  • Page 17: Installing/Removing The 7F06-02 Module

    3.3 INSTALLING/REMOVING THE 7F06-02 MODULE The following procedure detail the installing and removal procedure for the 7F06-02 module. 3.3.1 Installing in the 7C03 SmartSwitch The 7F06-02 Module is installed in the 7C03 MMAC SmartSwitch using the following steps and referring to Figure 3-2.

  • Page 18: Removing From The7C03 Smartswitch

    Figure 3-2. Installing the 7F06-02 Module in the 3.3.2 Removing from the7C03 SmartSwitch The 7F06-02 Module inserted in the 7C03 MMAC SmartSwitch can be removed whenever necessary. Follow the steps below and refer to Figure 3-3 to remove the module.
  • Page 19 INSTALLATION/REMOVAL Note: Before removing the 7F06-02 module, attach the wrist strap included with the SmartSwitch or SmartSwitch module by following the instructions printed on the package. 1. Use a slotted screwdriver to loosen the two screws that secure the module to the chassis.

  • Page 20: Installing In The 7C04 Or 7C04-R Workgroup Smartswitch

    3.3.3 Installing in the 7C04 or 7C04-R Workgroup SmartSwitch The 7F06-02 Module is installed in the 7C04 or 7C04-R Workgroup SmartSwitch using the following steps and referring to the appropriate figure. Notes: The top slot in the 7C04 Workgroup SmartSwitch is reserved for the 7X00 SmartSwitch Module.
  • Page 21 INSTALLATION/REMOVAL Figure 3-4. Installing the 7F06-02 Module in the 7C04 Workgroup Figure 3-5. Installing the 7F06-02 Module in the 7C04-R Workgroup SmartSwitch FANS SmartSwitch...

  • Page 22: Removing From The 7C04 Or 7C04-R Workgroup Smartswitch.3

    3.3.4 Removing from the 7C04 or 7C04-R Workgroup SmartSwitch The 7F06-02 Module, inserted in the 7C04 or the 7C04-R Workgroup SmartSwitch, can be removed whenever necessary. Follow the steps below and refer to the appropriate figure to remove the module.
  • Page 23 INSTALLATION/REMOVAL Ejector Tabs Figure 3-7. Removing the 7F06-02 Module from the 7C04-R Workgroup Screws SmartSwitch FANS...

  • Page 24: Chapter 4 Troubleshooting

    With LANVIEW LEDs the status of each transmit and receive port on the 7F06-02 Module can be determined, at a glance. This section discusses the function and purpose of the LEDs on the 7F06-02 Module.
  • Page 25 TROUBLESHOOTING Table 4-1 indicates the state of the receive port. LED Color Yellow (Flashing) Table 4-2 indicates the state of the transmit port. LED Color Green (Flashing) Table 4-1. Port Receive LEDs Data activity (flashing to steady on indicates rate) No activity, port can be disabled or enabled Table 4-2.
  • Page 26 Table 4-3 indicates the state of the A/B Link LEDs. Green Green Green Green Green Green Green Yellow Green Yellow Green Green Green Green Yellow Yellow Green Yellow Yellow Green Green Green Green Yellow Table 4-3. Link LEDs Green Ports Enabled & Active Green THRU A, MAC on Primary, Secondary Bypasses Board...

  • Page 27: Chapter 5 Technical Specifications

    TECHNICAL SPECIFICATIONS This chapter includes the technical specifications for Cabletron Systems 7F06-02 module. Cabletron Systems reserves the right to change these specifications at any time without notice. 5.1 STANDARDS IEEE 802.1D IEEE 802.3i 10BASE-T 5.2 EMI The EMI requirements of: •...

  • Page 28: Safety

    TECHNICAL SPECIFICATIONS 5.5 SAFETY It is the responsibility of the person who sells the system to which the module will be a part to ensure that the total system meets allowed limits of conducted and radiated emissions. This equipment meets the safety requirements of: •...
