The SSR 8600 DC power supply has a five-terminal wiring block on the front panel,
consisting of two positive(+) terminal, two negative(-) terminal and a safety ground. The
DC supply is designed to be powered by a 48 Volt DC source.
DC Power Supply Specifications
The following table lists the physical specifications for the SSR's DC Power Supplies.
Dimensions
Weight
Power Output
Voltage Range
The following table lists the environmental specifications for the SSR's DC Power
Supplies
Operating Temperature
Non-operating
temperature
Operating Humidity
Switching Fabric Module (SSR 8600 only)
On the SSR 8600, the switching fabric is contained on a separate plug-in module. The SSR
8600 has slots for two of these modules. When two switching fabric modules are installed,
the module in the slot labelled "Fabric 1" serves as the primary switching fabric module,
and the module in the slot labelled "Fabric 2" serves as a redundant switching fabric
module.

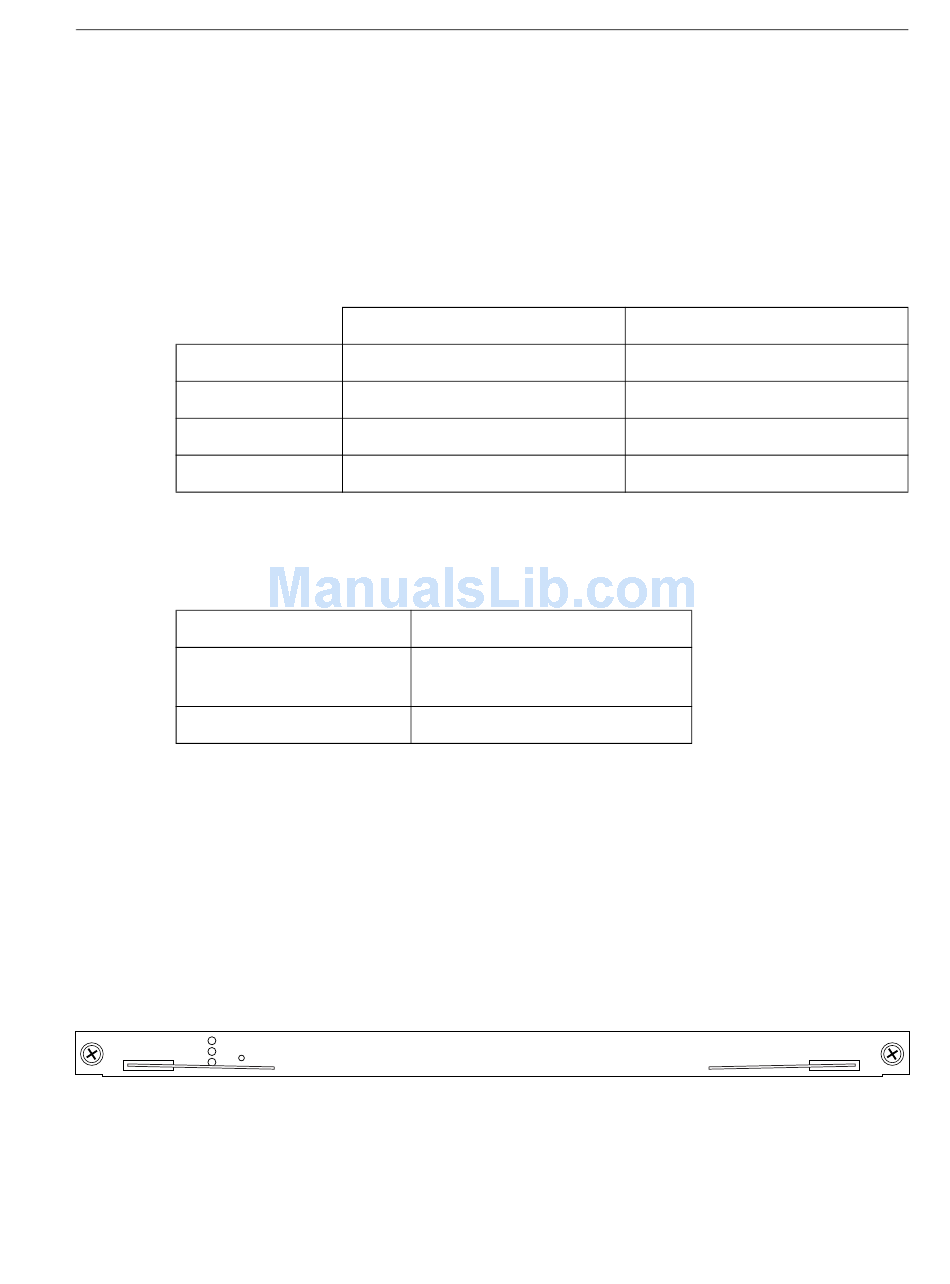

Figure 8 shows the front panel of the SSR 8600 Switching Fabric module.
SSR-SF-16
Offline
Hot
Online
Active
Swap
SSR 8000/8600 Getting Started Guide
SSR 8000
11.00" (L) x 7.70" (W) x 2.55" (H)
6.5 lbs. (2.95 kg)
300 W
36-72V, 14 A @ 48 V nominal
+5° to +40°C (41° to 104°F)
-30° to +73°C (-22° to 164°F)
15% to 90% (non-condensing)
Figure 8. Front panel of SSR 8600 Switching Fabric Module
Chapter 1: Features Overview
SSR 8600
12.15" (L) x 7.70" (W) x 5.05" (H)
12.0 lbs. (5.45 kg)
600 W
36-72V, 27 A @ 48 V nominal
Switching Fabric
