APRILIA RSV 1000 R Factory Use And Maintenance Book page 104

G
E
F
D

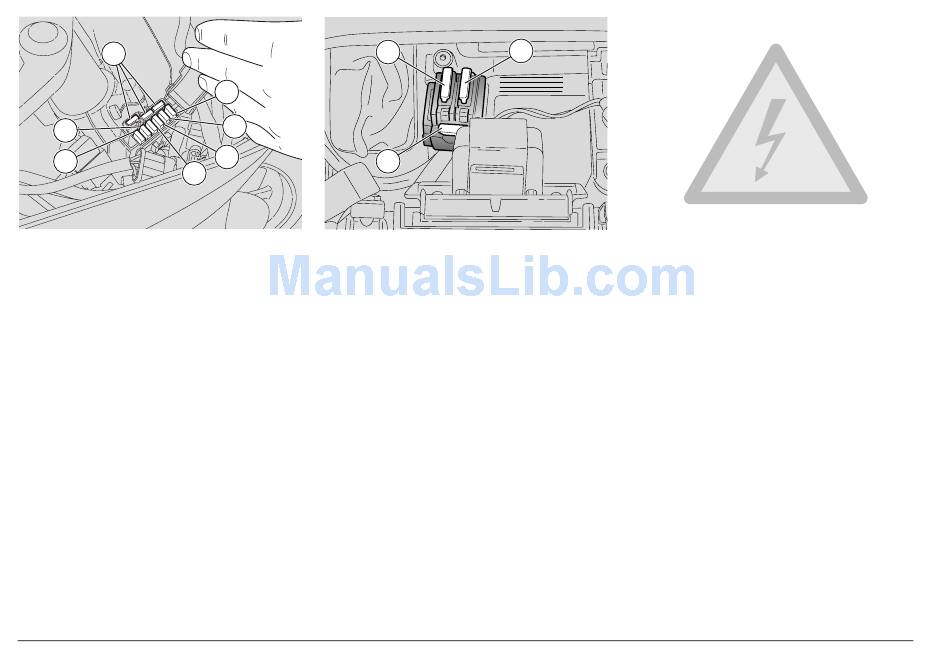

ARRANGEMENT OF 5-A AUXILIARY
FUSES
A) From ignition key to:
light relay, brake light, horn, parking
lights.
B ) F r o m i g n i t i o n k e y t o : d i r e c t i o n
indicators, dashboard.
C) From battery to:
key positive brought to ECU.
ARRANGEMENT OF 15-A AUXILIARY
FUSES
D) From battery to:
speed sensor, fuel pump, relay, starter,
lambda sensor.
E) From battery to:
cooling fan relay, coils, fuel injectors, air
intake flaps, camshaft position sensor.
use and maintenance RSV 1000 R - RSV 1000 R FACTORY
104
H
A
B
C
L
ARRANGEMENT OF 20-A AUXILIARY
FUSES
F) From ignition switch to:
high beam lights, low beam lights.
NOTE
There are three spare fuses (G).
ARRANGEMENT OF 30-A MAIN FUSES
H) Battery charging and vehicle loads (red
and red/white wires).
I) Injection loads (red and red/white
wires).
NOTE
There is one spare fuse (L).
I
