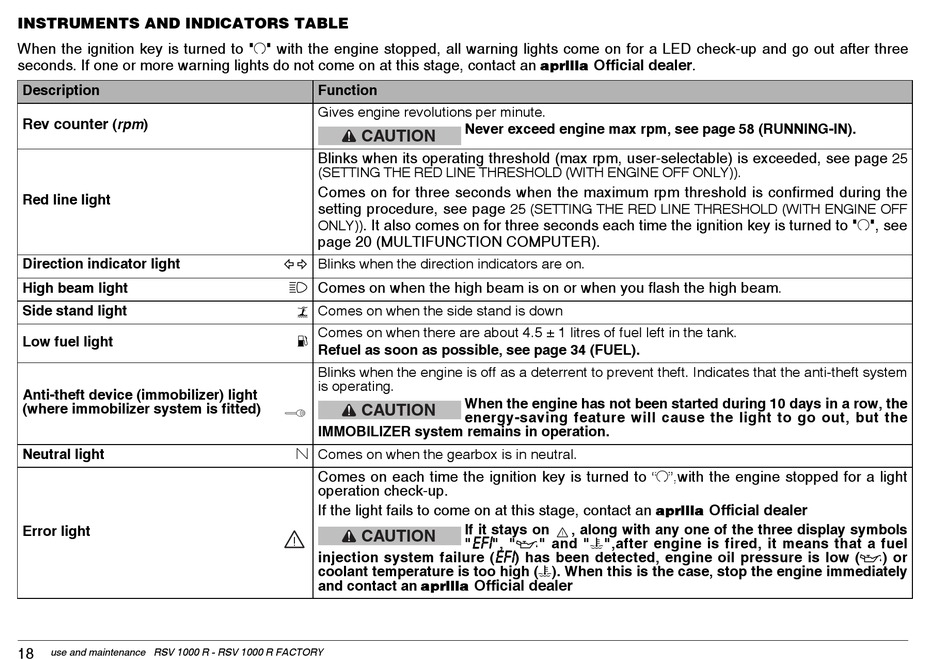

INSTRUMENTS AND INDICATORS TABLE

When the ignition key is turned to " " with the engine stopped, all warning lights come on for a LED check-up and go out after three
seconds. If one or more warning lights do not come on at this stage, contact an
Description
Rev counter
(rpm)
Red line light
Direction indicator light
High beam light
Side stand light
Low fuel light
Anti-theft device (immobilizer) light
(where immobilizer system is fitted)
Neutral light
Error light
use and maintenance RSV 1000 R - RSV 1000 R FACTORY
18
Function
Gives engine revolutions per minute.
Never exceed engine max rpm, see page 58 (RUNNING-IN).
CAUTION
Blinks when its operating threshold (max rpm, user-selectable) is exceeded, see page
(SETTING THE RED LINE THRESHOLD (WITH ENGINE OFF ONLY)).
Comes on for three seconds when the maximum rpm threshold is confirmed during the
setting procedure, see page
ONLY)) . It also comes on for three seconds each time the ignition key is turned to " ", see
page 20 (MULTIFUNCTION COMPUTER).
Blinks when the direction indicators are on.
Comes on when the high beam is on or when you flash the high beam
Comes on when the side stand is down
Comes on when there are about 4.5 Ø 1 litres of fuel left in the tank.
Refuel as soon as possible, see page 34 (FUEL).
Blinks when the engine is off as a deterrent to prevent theft. Indicates that the anti-theft system
is operating.
When the engine has not been started during 10 days in a row, the
CAUTION
energy-saving feature will cause the light to go out, but the
IMMOBILIZER system remains in operation.
Comes on when the gearbox is in neutral.
Comes on each time the ignition key is turned to
operation check-up.
If the light fails to come on at this stage, contact an
If it stays on
CAUTION efi
" ", "
efi
injection system failure (
coolant temperature is too high ( ). When this is the case, stop the engine immediately
and contact an aprilia Official dealer
Official dealer.
aprilia
25 (SETTING THE RED LINE THRESHOLD (WITH ENGINE OFF
with the engine stopped for a light
≈ ∆,
aprilia
, along with any one of the three display symbols
" and " ",after engine is fired, it means that a fuel
) has been detected, engine oil pressure is low (
.
Official dealer
) or
