APRILIA RSV 1000 R Factory Use And Maintenance Book page 15

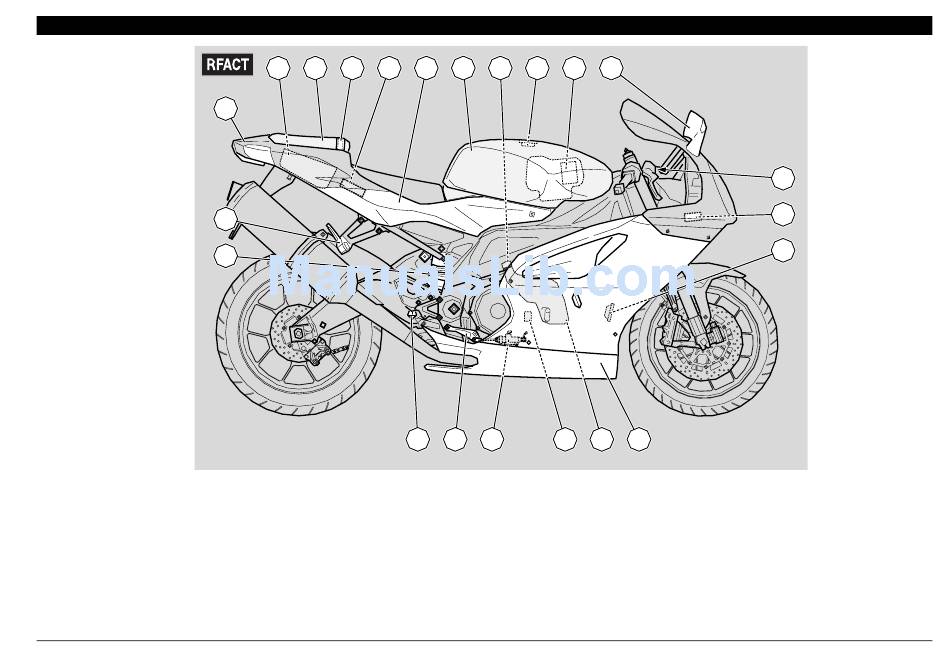

KEY
1) Rear shock absorber
2) Passenger right footrest
(snaps closed/open)
3) Tail light
4) Glove/tool kit compartment
5) Passenger seat (Glove/tool
kit compartment cover)
6) Passenger grab strap
4 5 6 7
3
2
1
7) Engine Control Unit
8) Right side panel
9) Fuel tank
10) Coolant expansion tank
cap
11) Fuel tank filler cap
12) Air cleaner
13) Right rear-view mirror
8 9 10 11 12
22 21 20 19
14) Front brake fluid reservoir
15) Secondary fuse carrier
(15A)
16) Horn
17) Right side fairing
18) Coolant expansion tank
19) Rear brake fluid reservoir
20) Rear brake master cylinder
13
18 17
21) Rear brake lever
22) Rider right footrest
use and maintenance RSV 1000 R - RSV 1000 R FACTORY
14
15
16
15
