2.2.3 USB Connection

USB connection to PC requires installation of drivers for both the Port and the Windows Driver itself as
described in Steps A and B below. All the files necessary for installation are located on the Accessories CD-
Rom. Connect the printer to the host PC via a standard USB Cable and follow the steps below. The following
steps are for a typical Windows XP system, other versions of Windows may vary.
Step A: Windows Port Driver Installation:

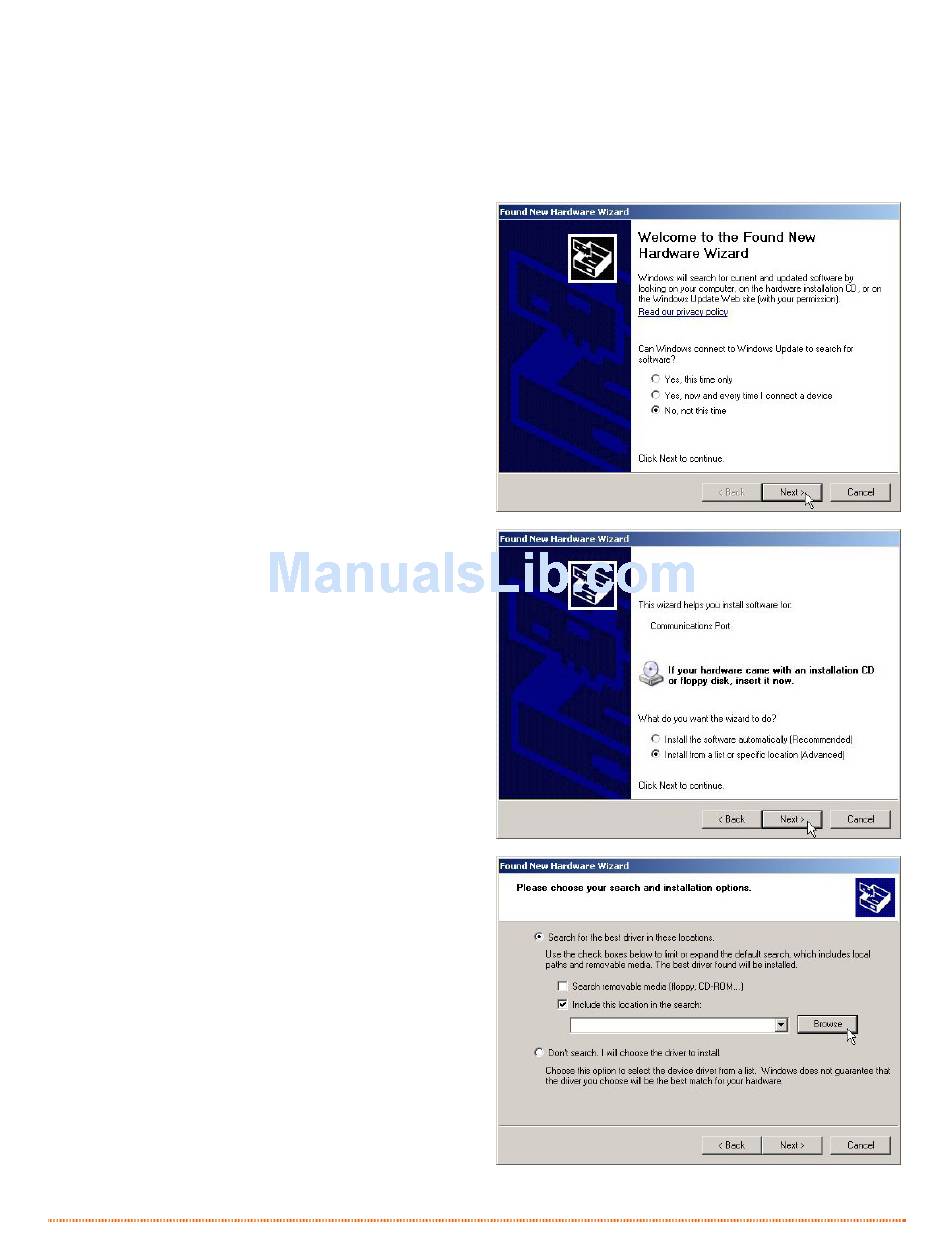

1) Turn on the printer and wait until the start-up
initialization is complete. The PC will then detect
the printer and launch the "Found New Hardware
Wizard".
2) Select the "No, not this time" radio button and
then click Next.
3) Select the "Install from a list or specific
(Advanced)" radio button and then click Next.
4) Select the "Search for the best driver in these
locations" radio button.
5) Check the "Include this location in the search"
checkbox and then click Browse.
6) Navigate to driver folder on the CD-ROM,
assuming your CD/DVD drive is labeled D: the
path would be as follows:
My Computer>D:>assets>windriver
7) Select the folder and then Click 'OK'. Then Click
Next.
Chapter 2 – Printer Setup 5
