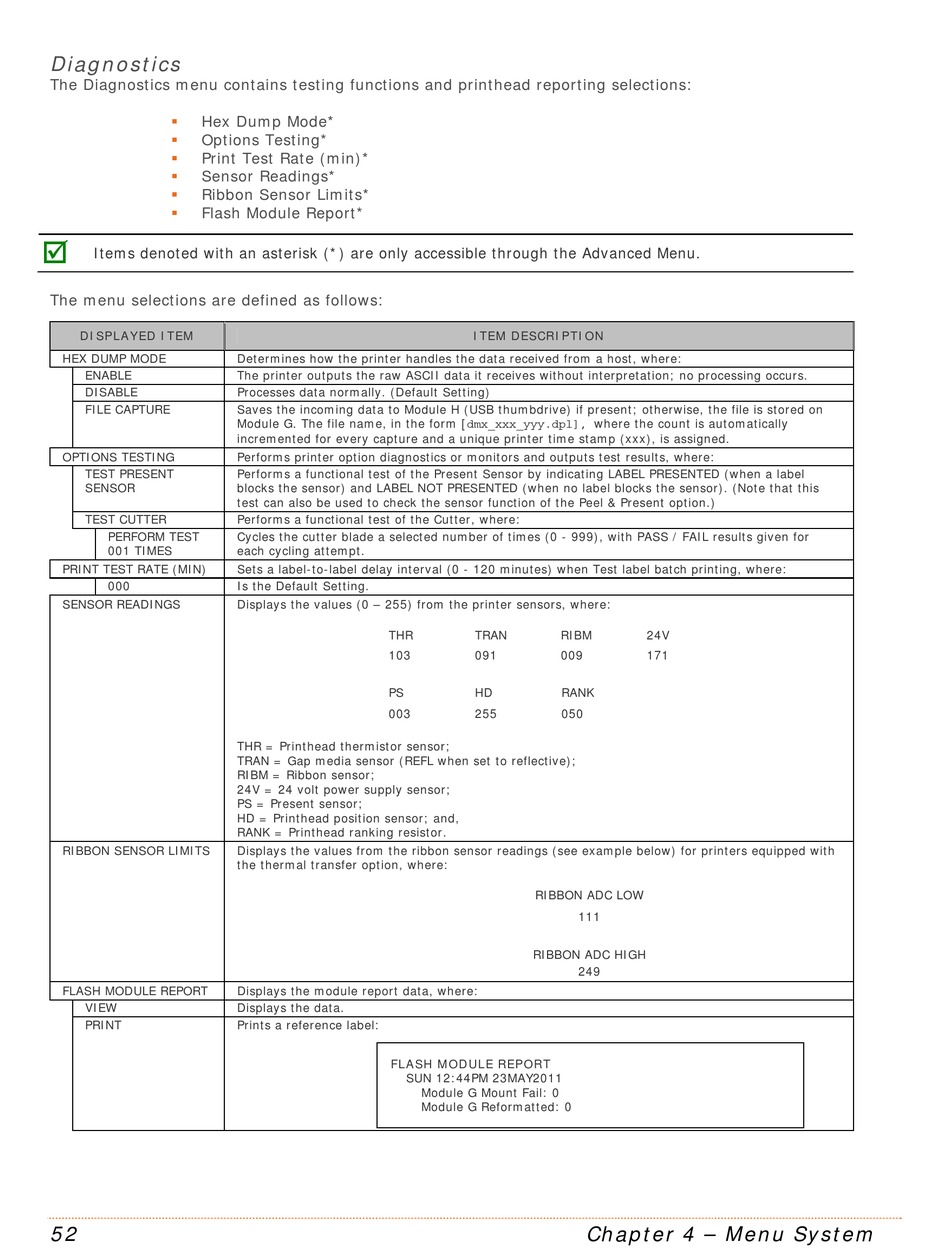

Diagnostics
The Diagnostics menu contains testing functions and printhead reporting selections:
Hex Dump Mode*

Options Testing*

Print Test Rate (min)*

Sensor Readings*

Ribbon Sensor Limits*

Flash Module Report*


Items denoted with an asterisk (*) are only accessible through the Advanced Menu.
The menu selections are defined as follows:
DISPLAYED ITEM
HEX DUMP MODE
ENABLE
DISABLE
FILE CAPTURE
OPTIONS TESTING
TEST PRESENT
SENSOR
TEST CUTTER
PERFORM TEST
001 TIMES
PRINT TEST RATE (MIN)
000
SENSOR READINGS
RIBBON SENSOR LIMITS
FLASH MODULE REPORT
VIEW
PRINT
52
Determines how the printer handles the data received from a host, where:
The printer outputs the raw ASCII data it receives without interpretation; no processing occurs.
Processes data normally. (Default Setting)
Saves the incoming data to Module H (USB thumbdrive) if present; otherwise, the file is stored on
Module G. The file name, in the form [dmx_xxx_yyy.dpl], where the count is automatically
incremented for every capture and a unique printer time stamp (xxx), is assigned.
Performs printer option diagnostics or monitors and outputs test results, where:
Performs a functional test of the Present Sensor by indicating LABEL PRESENTED (when a label
blocks the sensor) and LABEL NOT PRESENTED (when no label blocks the sensor). (Note that this
test can also be used to check the sensor function of the Peel & Present option.)
Performs a functional test of the Cutter, where:
Cycles the cutter blade a selected number of times (0 - 999), with PASS / FAIL results given for
each cycling attempt.
Sets a label-to-label delay interval (0 - 120 minutes) when Test label batch printing, where:
Is the Default Setting.
Displays the values (0 – 255) from the printer sensors, where:
THR
103
PS
003
THR = Printhead thermistor sensor;
TRAN = Gap media sensor (REFL when set to reflective);
RIBM = Ribbon sensor;
24V = 24 volt power supply sensor;
PS = Present sensor;
HD = Printhead position sensor; and,
RANK = Printhead ranking resistor.
Displays the values from the ribbon sensor readings (see example below) for printers equipped with
the thermal transfer option, where:
Displays the module report data, where:
Displays the data.
Prints a reference label:
FLASH MODULE REPORT
SUN 12:44PM 23MAY2011
ITEM DESCRIPTION
TRAN RIBM
091 009
HD RANK
255 050
RIBBON ADC LOW
111
RIBBON ADC HIGH
249
Module G Mount Fail: 0
Module G Reformatted: 0
Chapter 4 – Menu System
24V
171
