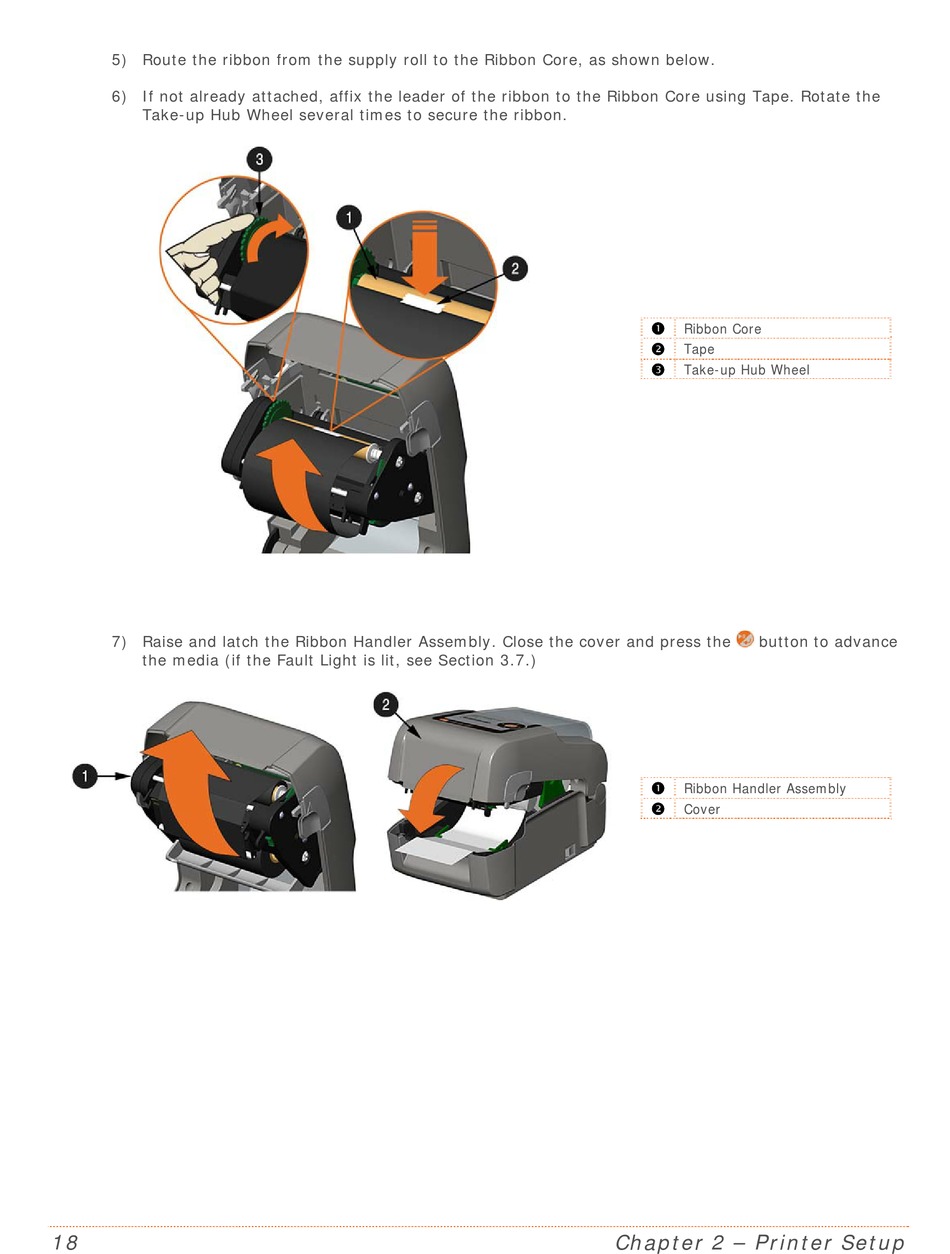

5) Route the ribbon from the supply roll to the Ribbon Core, as shown below.

6) If not already attached, affix the leader of the ribbon to the Ribbon Core using Tape. Rotate the

Take-up Hub Wheel several times to secure the ribbon.

7) Raise and latch the Ribbon Handler Assembly. Close the cover and press the

the media (if the Fault Light is lit, see Section 3.7.)

312



Ribbon Core



Tape



Take-up Hub Wheel

button to advance



Ribbon Handler Assembly



Cover
