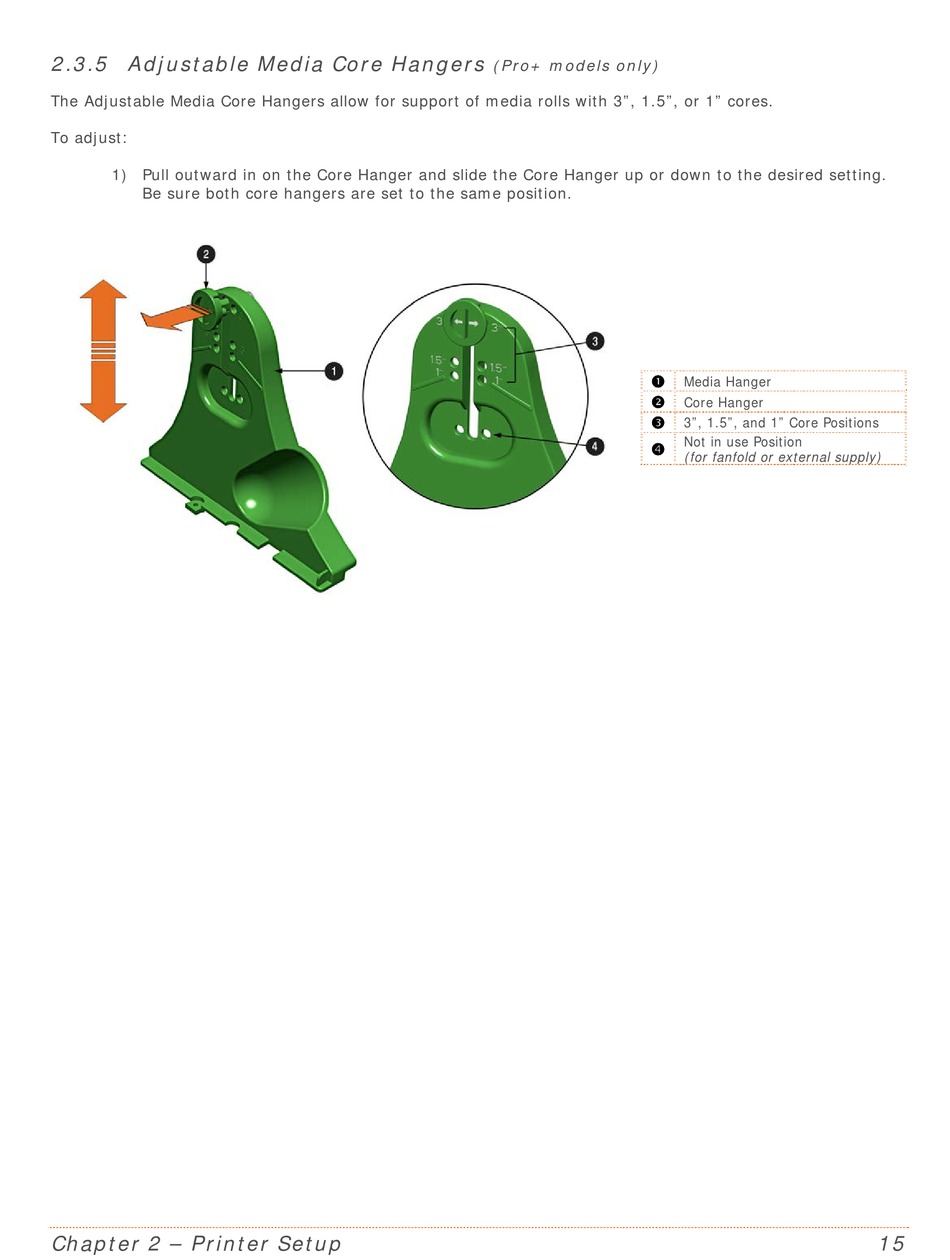

2.3.5 Adjustable Media Core Hangers

The Adjustable Media Core Hangers allow for support of media rolls with 3", 1.5", or 1" cores.

To adjust:

1) Pull outward in on the Core Hanger and slide the Core Hanger up or down to the desired setting.

Be sure both core hangers are set to the same position.

Chapter 2 – Printer Setup

(Pro+ models only)

312



Media Hanger



Core Hanger



3", 1.5", and 1" Core Positions

Not in use Position



(for fanfold or external supply)
