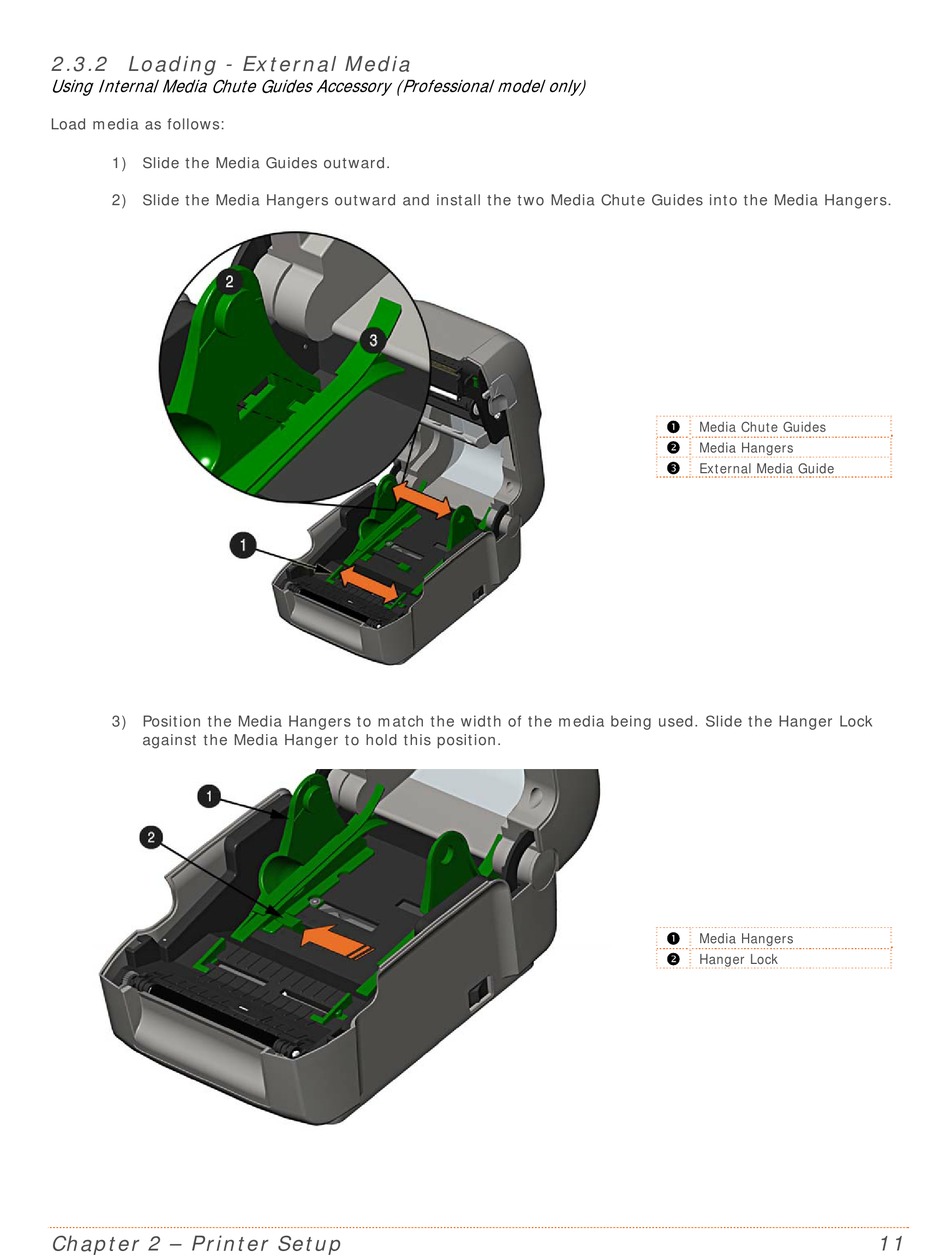

2.3.2 Loading - External Media

Using Internal Media Chute Guides Accessory (Professional model only)

Load media as follows:

1) Slide the Media Guides outward.

2) Slide the Media Hangers outward and install the two Media Chute Guides into the Media Hangers.

3) Position the Media Hangers to match the width of the media being used. Slide the Hanger Lock

against the Media Hanger to hold this position.

Chapter 2 – Printer Setup



Media Chute Guides



Media Hangers



External Media Guide



Media Hangers



Hanger Lock
