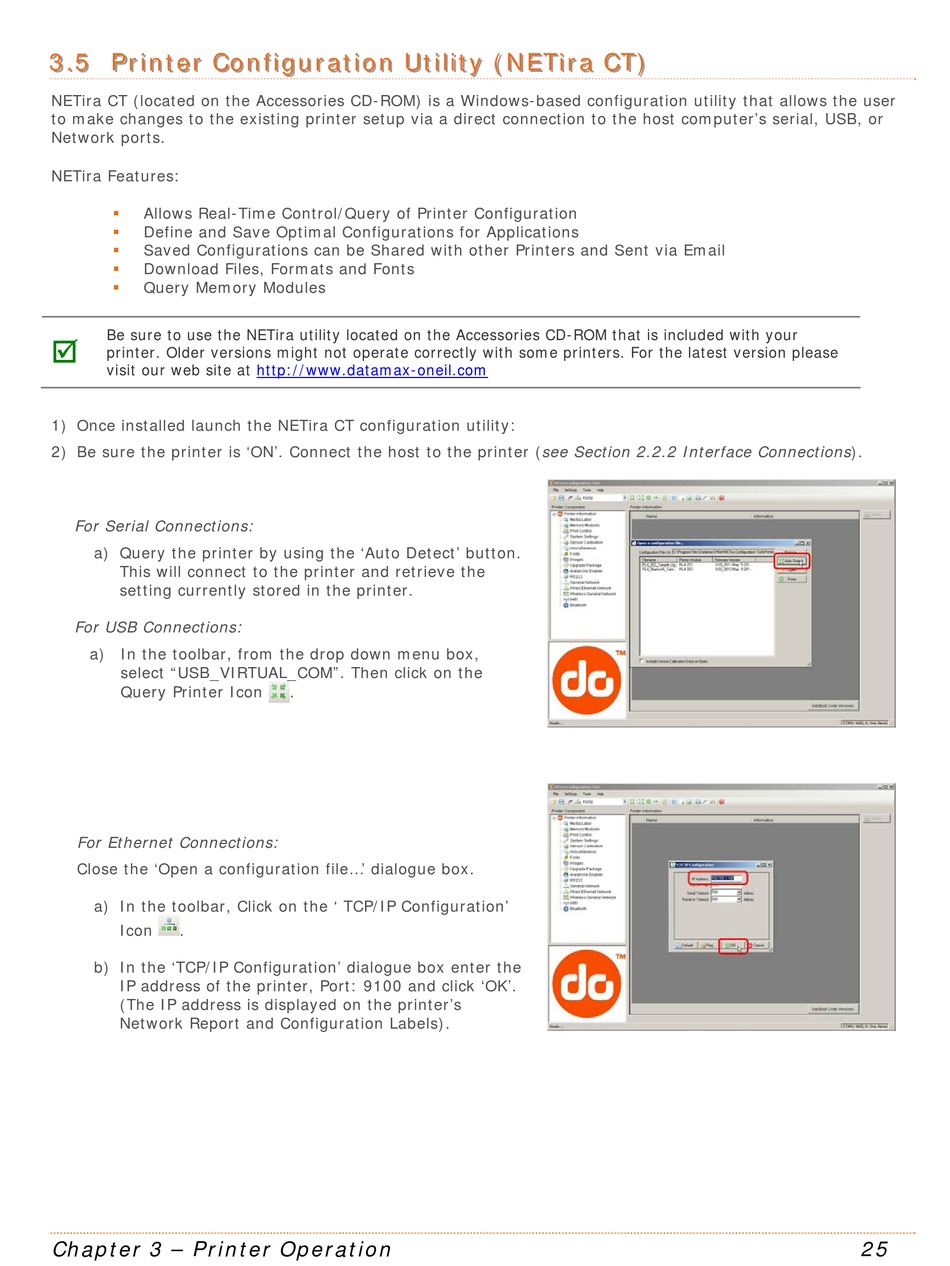

Printer Configuration Utility (Netira Ct) - Datamax E-Class Mark III Professional Operator's Manual

3 . 5 P r i n t e r C o
3 . 5 P r i n t e r C
3 . 5
P r i n t e r C
NETira CT (located on the Accessories CD-ROM) is a Windows-based configuration utility that allows the user
to make changes to the existing printer setup via a direct connection to the host computer's serial, USB, or
Network ports.
NETira Features:
Allows Real-Time Control/Query of Printer Configuration

Define and Save Optimal Configurations for Applications

Saved Configurations can be Shared with other Printers and Sent via Email

Download Files, Formats and Fonts

Query Memory Modules

Be sure to use the NETira utility located on the Accessories CD-ROM that is included with your

printer. Older versions might not operate correctly with some printers. For the latest version please
visit our web site at
1) Once installed launch the NETira CT configuration utility:
2) Be sure the printer is 'ON'. Connect the host to the printer (see Section 2.2.2 Interface Connections).
For Serial Connections:
a) Query the printer by using the 'Auto Detect' button.
This will connect to the printer and retrieve the
setting currently stored in the printer.
For USB Connections:
a) In the toolbar, from the drop down menu box,
select "USB_VIRTUAL_COM". Then click on the
Query Printer Icon
For Ethernet Connections:
Close the 'Open a configuration file...' dialogue box.
a) In the toolbar, Click on the ' TCP/IP Configuration'
Icon .
b) In the 'TCP/IP Configuration' dialogue box enter the
IP address of the printer, Port: 9100 and click 'OK'.
(The IP address is displayed on the printer's
Network Report and Configuration Labels).
Chapter 3 – Printer Operation
n f i g u r a t i o n U
o n f i g u r a t i o n U
o n f i g u r a t i o n U
http://www.datamax-oneil.com
.
t i l i t y ( N E T i r a C
t i l i t y ( N E T i r a
( N
t i l i t y E T i r a
T )
C T )
C T )
25
