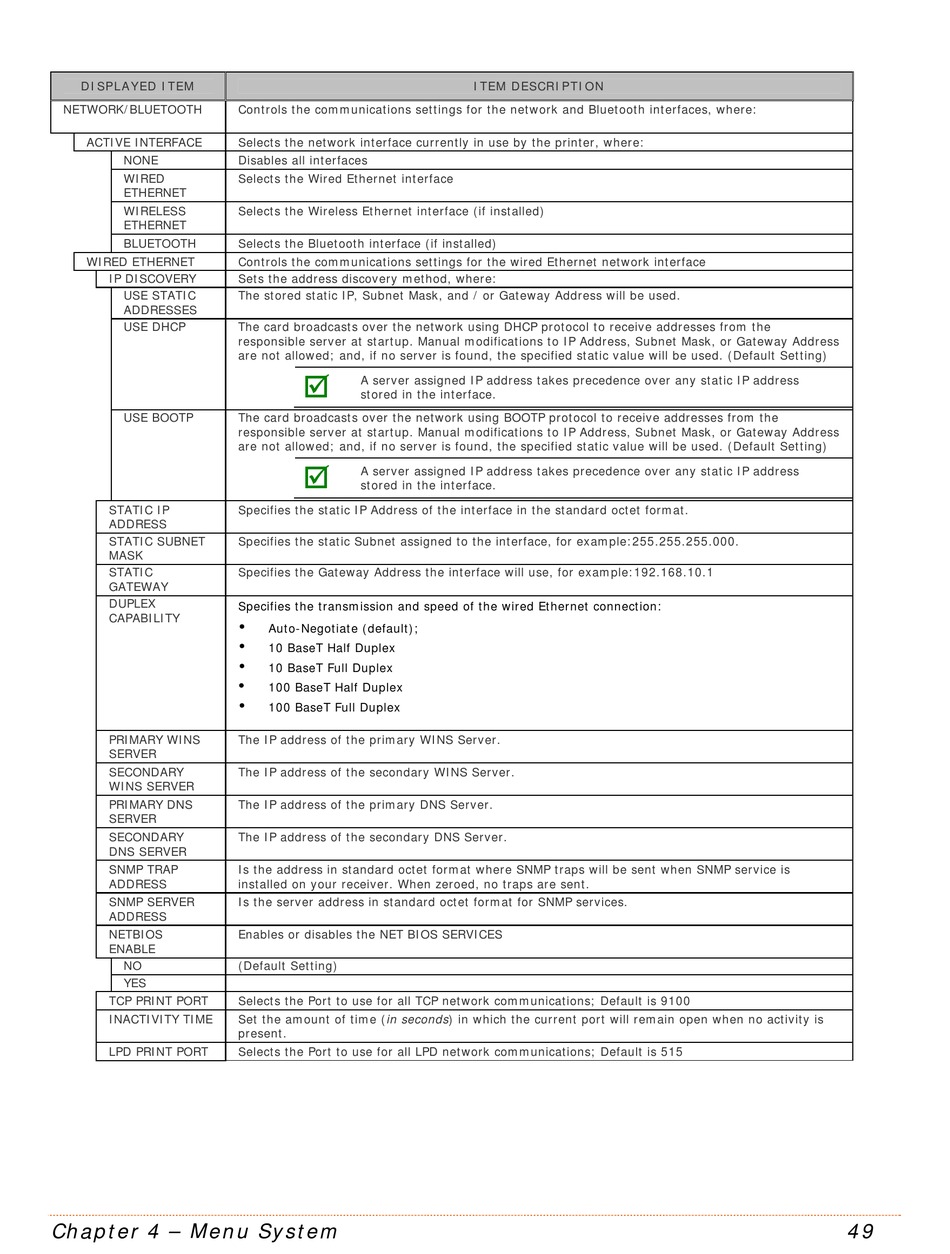

Datamax E-Class Mark III Professional Operator's Manual page 55

DISPLAYED ITEM
NETWORK/BLUETOOTH
ACTIVE INTERFACE
NONE
WIRED
ETHERNET
WIRELESS
ETHERNET
BLUETOOTH
WIRED ETHERNET
IP DISCOVERY
USE STATIC
ADDRESSES
USE DHCP
USE BOOTP
STATIC IP
ADDRESS
STATIC SUBNET
MASK
STATIC
GATEWAY
DUPLEX
CAPABILITY
PRIMARY WINS
SERVER
SECONDARY
WINS SERVER
PRIMARY DNS
SERVER
SECONDARY
DNS SERVER
SNMP TRAP
ADDRESS
SNMP SERVER
ADDRESS
NETBIOS
ENABLE
NO
YES
TCP PRINT PORT
INACTIVITY TIME
LPD PRINT PORT
Chapter 4 – Menu System
Controls the communications settings for the network and Bluetooth interfaces, where:
Selects the network interface currently in use by the printer, where:
Disables all interfaces
Selects the Wired Ethernet interface
Selects the Wireless Ethernet interface (if installed)
Selects the Bluetooth interface (if installed)
Controls the communications settings for the wired Ethernet network interface
Sets the address discovery method, where:
The stored static IP, Subnet Mask, and / or Gateway Address will be used.
The card broadcasts over the network using DHCP protocol to receive addresses from the
responsible server at startup. Manual modifications to IP Address, Subnet Mask, or Gateway Address
are not allowed; and, if no server is found, the specified static value will be used. (Default Setting)

A server assigned IP address takes precedence over any static IP address
stored in the interface.
The card broadcasts over the network using BOOTP protocol to receive addresses from the
responsible server at startup. Manual modifications to IP Address, Subnet Mask, or Gateway Address
are not allowed; and, if no server is found, the specified static value will be used. (Default Setting)

A server assigned IP address takes precedence over any static IP address
stored in the interface.
Specifies the static IP Address of the interface in the standard octet format.
Specifies the static Subnet assigned to the interface, for example:255.255.255.000.
Specifies the Gateway Address the interface will use, for example:192.168.10.1
Specifies the transmission and speed of the wired Ethernet connection:
•
Auto-Negotiate (default);
•
10 BaseT Half Duplex
•
10 BaseT Full Duplex
•
100 BaseT Half Duplex
•
100 BaseT Full Duplex
The IP address of the primary WINS Server.
The IP address of the secondary WINS Server.
The IP address of the primary DNS Server.
The IP address of the secondary DNS Server.
Is the address in standard octet format where SNMP traps will be sent when SNMP service is
installed on your receiver. When zeroed, no traps are sent.
Is the server address in standard octet format for SNMP services.
Enables or disables the NET BIOS SERVICES
(Default Setting)
Selects the Port to use for all TCP network communications; Default is 9100
Set the amount of time (in seconds) in which the current port will remain open when no activity is
present.
Selects the Port to use for all LPD network communications; Default is 515
ITEM DESCRIPTION
