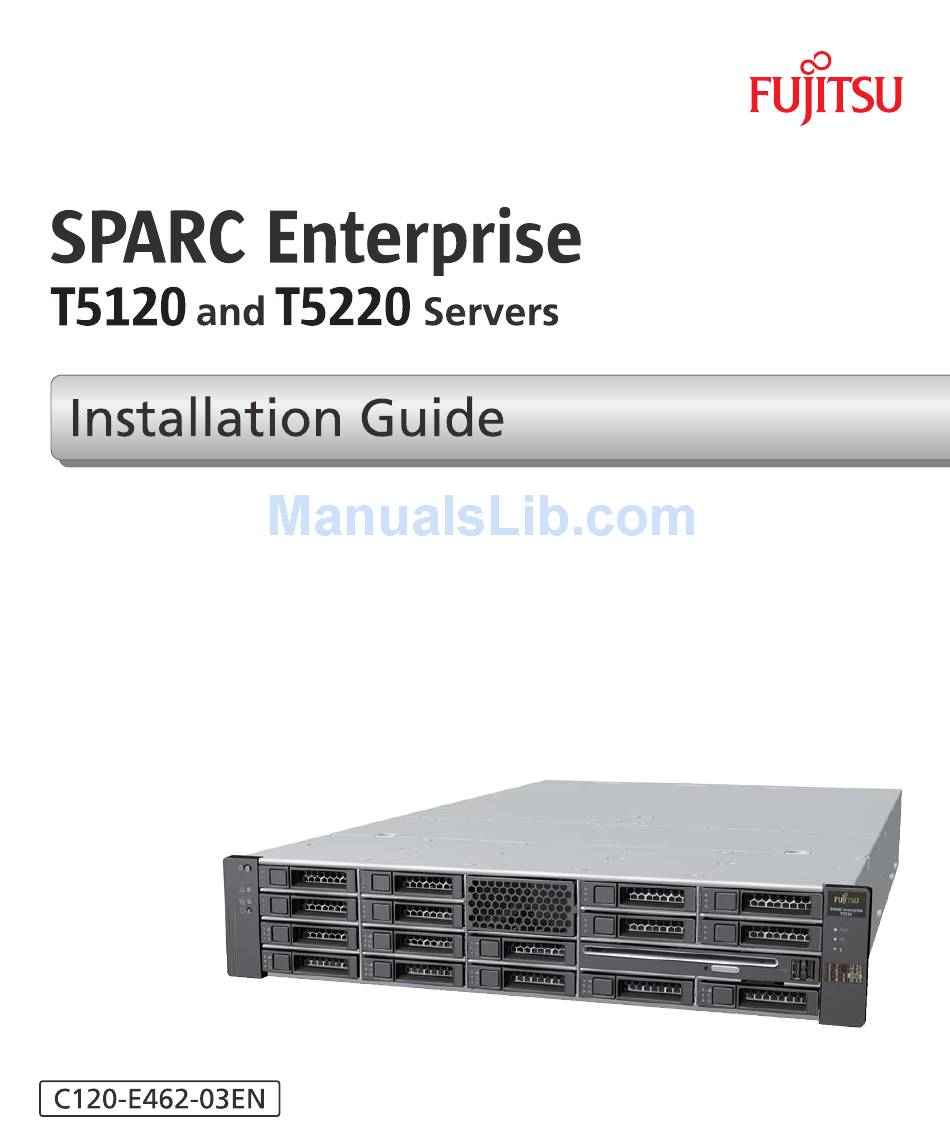

Fujitsu Sparc Enterprise T5120 Installation Manual

Hide thumbs

Advertisement

Advertisement

loading

  Summary of Contents for Fujitsu Sparc Enterprise T5120

  • Page 3 SPARC Enterprise T5120 and T5220 Servers Installation Guide Manual Code C120-E462-03EN Part No. 875-4191-12 July 2009, Revision A...
  • Page 4 Fujitsu Limited or Sun Microsystems, Inc., or any affiliate of either of them.
  • Page 5 Aucune partie de ce produit, de ces technologies ou de ce document ne peut être reproduite sous quelque forme que ce soit, par quelque moyen que ce soit, sans l’autorisation écrite préalable de Fujitsu Limited et de Sun Microsystems, Inc., et de leurs éventuels bailleurs de licence.
  • Page 7: Table Of Contents

    Port, Connector, and LED Locations for Both Servers 12 Slide Rail Assembly Notes for Both Servers 15 Cable Management Notes for Both Servers 18 Installing the SPARC Enterprise T5120 and T5220 Servers 19 Installing the Servers in a Rack 19 ▼...
  • Page 8 ▼ To Connect to the System Console 58 ▼ To Perform a Normal System Initialization 58 Devices in the OpenBoot Device Tree 60 Booting the Solaris Operating System 61 SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 9 To Insert and Lock the Server in the Rack 81 Installing the Cable Management Arm 83 Dismounting the Server 84 Assembling and Installing DC Power Cables for the SPARC Enterprise T5120 Server 85 Requirements for Servers With DC Input Power 85...
  • Page 10 Assembling and Installing the DC Input Power Cables 101 ▼ To Assemble the DC Input Power Cables 101 ▼ To Connect the DC Input Power Cords 104 Index 107 viii SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 11: Preface

    Use the product according to the instructions and information available in this manual. Keep this manual handy for further reference. Fujitsu makes every effort to prevent users and bystanders from being injured or from suffering damage to their property. Use the product according to this manual.
  • Page 12: Related Documentation

    ■ Provides instructions for installing the servers into a rack with the Express rail rackmounting kit. Assembling and Installing DC Power Cables for the SPARC Enterprise T5120 ■ Server Provides instructions for assembling and installing DC power cables on SPARC Enterprise T5120 servers with DC input power.
  • Page 13 (http://www.fujitsu.com/sparcenterprise/manual/) Japanese Site (http://primeserver.fujitsu.com/sparcenterprise/manual/) Title Description Manual Code SPARC Enterprise T5120 Server Minimum steps to power on and boot the C120-E518 Getting Started Guide server for the first time SPARC Enterprise T5120 Server Minimum steps to power on and boot the...
  • Page 14 Important and late-breaking information C120-E544 Product Notes about the External I/O Expansion Unit Note – Product Notes are available on the website only. Please check for the recent update on your product. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 15: Text Conventions

    UNIX Commands ® This document might not contain information on basic UNIX commands and procedures such as shutting down the system, booting the system, and configuring devices. Refer to the following for this information: Software documentation that you received with your system ■...
  • Page 16: Conventions For Alert Messages

    Caution – This indicates that hazardous voltages are present. To reduce the risk of electric shock and danger to personal health, follow the instructions. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 17: Alert Messages In The Text

    A space of one line precedes and follows an alert statement. Caution – The following tasks regarding this product and the optional products provided from Fujitsu should only be performed by a certified service engineer. Users must not perform these tasks. Incorrect operation of these tasks may cause malfunction.
  • Page 18: Notes On Safety

    Task Warning Installation Electric shock There is a potential for electric shock if the server and related equipment are not properly grounded. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 19 Maintenance and inspections (repairing, and regular diagnosis and maintenance) ■ Caution – The following tasks regarding this product and the optional products provided from Fujitsu should only be performed by a certified service engineer. Users must not perform these tasks. Incorrect operation of these tasks may cause malfunction.
  • Page 20 Alert Label The following is a label attached to this product: Never peel off the label. ■ The following label provides information to the users of this product. ■ xviii SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 21 Fujitsu Welcomes Your Comments If you have any comments or requests regarding this document, or if you find any unclear statements in the document, please state your points specifically on the form at the following URL. For Users in U.S.A., Canada, and Mexico: (https://download.computers.us.fujitsu.com/)
  • Page 22 SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 23: Preparing For Installation

    “Slide Rail Assembly Notes for Both Servers” on page 15 ■ “Cable Management Notes for Both Servers” on page 18 ■ Server Overview The SPARC Enterprise T5120 server is a 1 rack unit (1U) server. The SPARC Enterprise T5220 server is a 2 rack unit (2U) server.
  • Page 24 FIGURE: SPARC Enterprise T5220 Server FIGURE: Related Information SPARC Enterprise T5120 and T5220 Servers Getting Started Guide ■ SPARC Enterprise T5120 and T5220 Servers Getting Started Guide (DC) ■ SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 25: Server Handling Precautions

    SPARC Enterprise T5120 and T5220 Servers Getting Started Guide (DC) ■ Input Power Information and Precautions The SPARC Enterprise T5120 and T5220 servers are available in the following input power configurations: Two redundant, hot-swappable AC power supplies ■ Two redundant, DC power supplies ■...
  • Page 26: Tools And Equipment Needed

    Service actions which require removal of one of the power supplies. ■ Refer to the SPARC Enterprise T5120 and T5220 Servers Site Planning Guide for input power specifications. Note – Input AC/DC power cables: To avoid missing initialization messages, do not...
  • Page 27: Optional Component Installation

    Related Information SPARC Enterprise T5120 and T5220 Servers Getting Started Guide ■ SPARC Enterprise T5120 and T5220 Servers Getting Started Guide (DC) ■ SPARC Enterprise T5120 and T5220 Servers Service Manual ■...
  • Page 28: Installation Overview

    Related Information “Installation Overview” on page 6 ■ Installation Overview This installation guide provides procedures that are to be performed in the following order. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 29 Installation Overview FIGURE: Figure Legend Preparing for installation Installing the hardware Configuring the service processor Configuring the host software Preparing for Installation...
  • Page 30: Preparing For Installation

    2. Connect the server to a serial terminal or a terminal emulator (PC or workstation) to display system messages. See “Powering On the System for the First Time” on page SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 31: Configuring The Service Processor

    Diagnostic test failures will be printed on the serial terminal. For more information, refer to the Integrated Lights Out Manager 2.0 Supplement for SPARC Enterprise T5120 and T5220 Servers. 3. Connect the data cables to the server, but do not connect the AC power cable yet.
  • Page 32: Configuring The Host Software

    Solaris OS configuration procedure. 2. Install any required patches to the server. Refer to the SPARC Enterprise T5120 and T5220 Server Product Notes for a list of required patches. 3. Load additional software from the Solaris media kit (optional).
  • Page 33 RJ-45 cable for a 10/100 BASE-T connection. This port does not support connections to Gigabit networks. See the SPARC Enterprise T5120 and T5220 Servers Overview for more information. Ethernet ports are labeled NET0, NET1, NET2, and NET3. The Ethernet interfaces ■...
  • Page 34: Port, Connector, And Led Locations For Both Servers

    ■ Port, Connector, and LED Locations for Both Servers The ports on the servers are shown in the figures below. Rear Panel Cable Connectors and LEDs on the SPARC Enterprise T5120 Server FIGURE: Figure Legend Power supply 0 10 Gbit Enet port NET2...
  • Page 35 Front Panel USB Ports on the SPARC Enterprise T5120 Server FIGURE: Figure Legend System status indicators: Top to bottom: Hard drive HDD3 Locator LED button, Service Required LED, Power OK LED, Power button Hard drive HDD0 USB port 2 Hard drive HDD1...
  • Page 36 SPARC Enterprise T5120 and T5220 Servers Getting Started Guide ■ SPARC Enterprise T5120 and T5220 Servers Getting Started Guide (DC) ■ SPARC Enterprise T5120 and T5220 Servers Service Manual ■ SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 37: Slide Rail Assembly Notes For Both Servers

    Note – The slide rail assemblies are different for the T5120 and T5220 servers. The removable mounting bracket of the SPARC Enterprise T5120 rails slides 13 in. (33 cm) out of the slide rail, then locks in place. The removable mounting bracket of the SPARC Enterprise T5220 rails slide 14 in.
  • Page 38 Note that there are five locks in a slide rail assembly. Four are on the mounting ■ bracket. One lock is on the front section of the slide rail. The locks are described in “Installing the SPARC Enterprise T5120 and T5220 Servers” on page SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 39 Locating the Locks on the Slide Rail Assembly for the SPARC Enterprise T5220 FIGURE: Server Preparing for Installation...
  • Page 40: Cable Management Notes For Both Servers

    The same cable management arm (CMA) is included with the rackmounting kit for each server. The CMA clips onto the slide rails. Use the velcro straps to secure cabling to the CMA. Cable Management Arm for Both Servers FIGURE: SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 41: Installing The Sparc Enterprise T5120 And T5220 Servers

    Installing the SPARC Enterprise T5120 and T5220 Servers This chapter provides instructions for installing the servers into an equipment rack. Note – If your rackmounting kit came with its own instructions, use the instructions in your rackmounting kit instead of the instructions in this chapter. After performing the server installation, proceed to “Powering On the System”...
  • Page 42: To Install The Slide Rail Assemblies

    Simultaneously press and hold the upper and lower lock buttons of the slide rail lock. Unlocking the Slide Rail Assembly (Either Server) FIGURE: b. Pull the mounting bracket out until it locks in the extended position. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 43 Location of the Mounting Bracket Release Button (Either Server) FIGURE: d. Press the metal lever (labeled Push) on the middle section of the sliding rail, then push the middle section back into the rack. Installing the SPARC Enterprise T5120 and T5220 Servers...
  • Page 44 Position the mounting bracket against the chassis. Ensure that the slide rail lock is at the front and the three keyed openings on the mounting bracket are aligned with the three locating pins on the side of the chassis. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 45 Select the appropriate screws from the package included in the mounting kit. If your rack does not have threaded mounting holes, the mounting screws are secured with a caged nut. Installing the SPARC Enterprise T5120 and T5220 Servers...
  • Page 46 8. Use the slide rail spacing tool to adjust the distance between the slide rails. a. At the front of the rack, plug the left side of the tool into slots at the end of the left rail. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 47 At the rear of the rack, repeat Step a through Step d for the rear ends of the rails. Related Information “To Insert and Lock the Server in the Rack” on page 26 ■ Installing the SPARC Enterprise T5120 and T5220 Servers...
  • Page 48: To Insert And Lock The Server In The Rack

    2. Deploy the antitilt bar, if the chassis or rack has an antilt bar. 3. Slide the chassis into the rack. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 49: Installing The Cable Management Arm For Both Servers

    (CMA) assembly. The CMA installation and cable management procedures are the same for both servers. See “Cable Management Notes for Both Servers” on page 18 for more information on the cable management arm. Installing the SPARC Enterprise T5120 and T5220 Servers...
  • Page 50: To Install The Cable Management Arm

    At the rear of the rack, plug the CMA rail extension into the end of the left sliding rail assembly. The tab at the front of the rail extension clicks into place. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 51 3. Insert the smaller extension into the clip located at the end of the mounting bracket. Slide the smaller extension into the square hole on the middle-in-width of the clip that is located at the end of the mounting bracket. Installing the SPARC Enterprise T5120 and T5220 Servers...
  • Page 52 Mounting the Inner CMA Connector (Either Server) FIGURE: 4. Insert the larger extension into the end of the right sliding rail. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 53 5. Insert the hinged plastic connector at the left side of the CMA fully into the CMA rail extension. The plastic tab on the CMA rail extension locks the hinged plastic connector in place. Installing the SPARC Enterprise T5120 and T5220 Servers...
  • Page 54: To Verify The Operation Of The Slide Rails And The Cma

    Tip – Two people are needed for this procedure, one to move the server in and out of the rack, and one to observe the cables and CMA. 1. For a free-standing rack, deploy the antitilt bar. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 55 The server should stop after approximately 15 in. (40 cm) of travel. 7. Pull both slide rail release buttons toward you simultaneously and slide the server back into the rack. The server should slide smoothly into the rack without binding. Installing the SPARC Enterprise T5120 and T5220 Servers...
  • Page 56: Connecting The Server Cables For Both Servers

    ■ The servers also have serial and USB ports available for connections to optional devices. See “Port, Connector, and LED Locations for Both Servers” on page 12 more information. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 57: To Connect The Service Processor Serial Management Port

    RJ-45 port on the rear panel. Note – The cable and DB-9 RJ-45 adapters are for the host serial port, and not for the server SER MGT port. Service Processor Serial Management Port – Rear Panel FIGURE: Installing the SPARC Enterprise T5120 and T5220 Servers...
  • Page 58: To Connect The Service Processor Network Management Port

    (SER MGT) port on the rear panel. ● Connect a Category 5 cable from the NET MGT network management port to your network switch or hub. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 59 Solaris Secure Shell (SSH). You might need to modify these settings for your network. Instructions are given in “Powering On the System” on page Related Information “To Connect the Ethernet Network Cables” on page 38 ■ Installing the SPARC Enterprise T5120 and T5220 Servers...
  • Page 60: To Connect The Ethernet Network Cables

    Powering on the system for the first time requires special preparation and procedures. For example, if you have not prepared a display before connecting the AC power cable, system messages might be lost. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 61: Managing Cables With The Cma

    ▼ To Secure the Server Cables in the CMA ● Once the server cables are connected and placed inside the CMA, open the velcro cable straps and wrap the straps around the CMA securing the cables inside the CMA. Installing the SPARC Enterprise T5120 and T5220 Servers...
  • Page 62: Dismounting The Servers

    Related Information “Dismounting the Servers” on page 40 ■ Dismounting the Servers To install or replace internal parts in the server, you must first remove the server from the rack. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 63 Related Information SPARC Enterprise T5120 and T5220 Servers Service Manual ■ Installing the SPARC Enterprise T5120 and T5220 Servers...
  • Page 64 SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 65: Powering On The System

    Powering On the System This chapter includes instructions for booting the servers and for enabling the service processor network management port. This chapter contains the following topics: “Powering On the System for the First Time” on page 43 ■ “Enabling the Service Processor Network Management Port” on page 49 ■...
  • Page 66: Ilom Service Processor

    “To Power On the System for the First Time” on page For a more detailed discussion on configuring the system console and connecting terminals, refer to the SPARC Enterprise T5120 and T5220 Server Administration Guide. Related Information “ILOM Service Processor” on page 44 ■...
  • Page 67 2. Confirm that you have completed the installation of the server in its rack. See the instructions in “Installing the SPARC Enterprise T5120 and T5220 Servers” on page 3. Connect a terminal or a terminal emulator (PC or workstation) to the service processor serial management port.
  • Page 68 NET MGT to network (optional) 5. Plug the power cords into the power supplies and into separate power sources. To provide redundancy, plug both power supplies into separate power sources. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 69 Note – The system can operate with only one power connection, but there is no redundancy in this case. The service processor runs on the 3.3V standby voltage. As soon as AC power is connected to the system, the service processor powers on, runs diagnostics, and initializes the ILOM firmware.
  • Page 70 Use the NFSv4 domain derived by the system. Time Zone (Continent) Select your continent. Time Zone (Country or Select your country or region. Region) SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 71: Enabling The Service Processor Network Management Port

    “Enabling the Service Processor Network Management Port” on page 49 ■ Solaris OS documentation ■ SPARC Enterprise T5120 and T5220 Servers Administration Guide. ■ Enabling the Service Processor Network Management Port The service processor network management port is not operational unless your network employs DHCP, in which case the configuration in automatic.
  • Page 72 You can now use the network management port at any time to access the service processor. “To Log Into the Service Processor Using the Network Management Port” on page Related Information “Logging Into the Service Processor” on page 51 ■ SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 73: Logging Into The Service Processor

    Logging Into the Service Processor If you are powering on the system for the first time after installation, use the service processor serial port to power on the system and run POST. See “To Log Into the Service Processor Using the Serial Management Port” on page If the network management port has already been configured, you can use it instead of the serial management port.
  • Page 74: To Configure The Service Processor Network Management Port

    Note – If your network allows the use of DHCP, this configuration is performed automatically the first time you boot the system. Use this procedure only when: You are unable to use DHCP on your network. ■ SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 75 Note – For more information on configuring ILOM, refer to the Integrated Lights Out Manager 2.0 Supplement for SPARC Enterprise T5120 and T5220 Servers. Set these network parameters according to the specific details of your network configuration: /SP/network state –...
  • Page 76 = dhcp ipgateway = xxx.xxx.xxx.xxx ipnetmask = 255.255.252.0 macaddress = 00:14:4F:3F:8C:AF pendingipaddress = xxx.xxx.xxx.xxx pendingipdiscovery = static pendingipgateway = xxx.xxx.xxx.xxx pendingipnetmask = 255.255.255.0 state = enabled Commands: show -> SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 77: To Log Into The Service Processor Using The Network Management Port

    Related Information “To Log Into the Service Processor Using the Network Management Port” on ■ page 55 SPARC Enterprise T5120 and T5220 Servers Administration Guide ■ ▼ To Log Into the Service Processor Using the Network Management Port Note – You must configure the service processor parameters shown in “To Configure...
  • Page 78: Using The Service Processor For Common Operations

    An ILOM CLI alert message appears on the system console. This message indicates that the system has reset. -> start /SYS Are you sure you want to start /SYS (y/n)? y Starting /SYS -> SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 79 c. Switch to the system console to view POST output. -> start /SP/console Are you sure you want to start /SP/console (y/n)? y Serial console started. To stop, type #. Watch the POST output for possible fault messages. The following output is a sign that POST did not detect any faults: 2007-12-14 16:34:53.385 0:1:0>INFO: 2007-12-14 16:34:53.391 0:1:0>...
  • Page 80: To Connect To The System Console

    ■ ▼ To Perform a Normal System Initialization 1. Type the start /SYS command. -> start /SYS Are you sure you want to start /SYS (y/n)? y Starting /SYS SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 81 Solaris OS. Note – System behavior depends on how the auto-boot variable is set. See the SPARC Enterprise T5120 and T5220 Servers Administration Guide for more information. The following example output is a small section of the complete output.
  • Page 82: Devices In The Openboot Device Tree

    Integrated Lights Out Manager (ILOM) 3.0 Supplement for SPARC Enterprise T5120 ■ and T5220 Servers SPARC Enterprise T5120 and T5220 Servers Administration Guide ■ Devices in the OpenBoot Device Tree Some OpenBoot device tree path names are shown below: Disk Slot Numbers, Logical Device Names, and Physical Device Names...
  • Page 83: Booting The Solaris Operating System

    Related Information “Booting the Solaris Operating System” on page 61 ■ SPARC Enterprise T5120 and T5220 Servers Administration Guide ■ Booting the Solaris Operating System The Solaris OS is preinstalled on the servers on the disk in slot 0. The Solaris OS is not configured (that is, the sys-unconfig command was run in the factory).
  • Page 84 The system is ready. hostname console login: Related Information “To Avoid Booting the Solaris Operating System at Startup” on page 63 ■ SPARC Enterprise T5120 and T5220 Servers Administration Guide ■ SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 85: To Avoid Booting The Solaris Operating System At Startup

    Related Information “To Reset the System” on page 63 ■ SPARC Enterprise T5120 and T5220 Servers Administration Guide ■ ▼ To Reset the System 1. If it is necessary to reset the system, use the shutdown -g0 -i6 -y command # shutdown -g0 -i6 -y 2.
  • Page 86 -> start /SYS Are you sure you want to start /SYS (y/n)? y Starting /SYS -> Note – To force a power-on sequence, use the start -script /SYS command. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 87: Verifying System Functionality

    The systems displays various messages, followed by the ok prompt. Related Information “Verifying System Functionality” on page 65 ■ SPARC Enterprise T5120 and T5220 Servers Administration Guide ■ Verifying System Functionality After powering on the system for the first time, you can use the Sun Validation Test Suite (Sun VTS) software to verify the functionality and performance of any installed components, as well as its network connections.
  • Page 88 SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 89: Updating The Firmware

    Updating the Firmware This section provides instructions for updating SP firmware. Related Information “flashupdate command” on page 67 ■ “To Update the Firmware” on page 68 ■ flashupdate command The flashupdate command updates both the service processor firmware and the server firmware.
  • Page 90: To Update The Firmware

    The load command updates the service processor flash image and the host firmware. The load command requires the following information: IP address of a TFTP server on the network that can access the flash image ■ SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 91 Full path name to the flash image that the IP address can access ■ The command usage is as follows: load [-script] -source tftp://xxx.xxx.xx.xx/pathname where: -script – Does not prompt for confirmation and acts as if yes was specified ■ -source –...
  • Page 92 Starting OpenBSD Secure Shell server: sshd. Starting Servicetags listener: stlistener. Starting FRU update program: frutool. hostname login: Related Information “To Configure the Service Processor Network Management Port” on page 52 ■ SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 93: Selecting A Boot Device

    SPARC Enterprise T5120 and T5220 Servers Administration Guide. Note – The serial management port on the ILOM card is preconfigured as the default system console port. For more information, see the SPARC Enterprise T5120 and T5220 Servers Overview. If you want to boot from a network, you must connect the network interface to the...
  • Page 94: To Select A Boot Device

    The show-devs command lists the system devices and displays the full path name of each PCI device. Related Information OpenBoot Documentation ■ OpenBoot 4.x Command Reference Manual ■ SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 95: Installing The Servers With The Express Rail Rackmounting Kit

    (snap-in) rails. The express rail rackmounting kit installs quickly, and does not require mounting screws or nuts. The kit and the installation procedures are the same for both the SPARC Enterprise T5120 and T5220 servers. Note – If your rackmounting kit came with its own instructions, use the instructions in your rackmounting kit instead of the instructions in this section.
  • Page 96: Slide Rail Assembly Notes For The Express Rail Rackmounting Kit

    24 in. (61 cm) to 36.5 in. (93 cm). The front section can be extended to allow movement of the server out of the rack. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 97 The removable mounting bracket slides 14.5 in. (37 cm) out of the slide rail, then ■ locks in place. If you unlock the mounting bracket at this point, it slides an additional 14.5 in. (37 cm) before separating from the slide rail. You can then mount the mounting bracket to the right or left side of the server chassis.
  • Page 98: Installing The Servers In A Rack With Express Rails

    ▼ To Install the Slide Rail Assemblies 1. Pull both mounting brackets completely out of their respective slide rails. a. Simultaneously press and hold the upper and lower lock buttons of the slide rail lock. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 99 Unlocking the Express Rail Slide Rail Assembly FIGURE: b. Pull the mounting bracket out until it stops. c. Slide the mounting bracket release button to the left, then slide the mounting bracket completely out of the slide rail. Installing the Servers With the Express Rail Rackmounting Kit...
  • Page 100 Position the mounting bracket against the chassis. Ensure that the slide rail lock is at the front and the keyed openings on the mounting bracket are aligned with the locating pins on the side of the chassis. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 101 Attaching an Express Rail Mounting Bracket to the Chassis FIGURE: b. Ensure that the heads of the four locating pins protrude through the keyed openings in the mounting bracket. Slide the mounting bracket toward the front of the chassis until the bracket locks into place with an audible click. c.
  • Page 102 5. Extend the slide rails (outer section) to fit the rack and attach the slide rails to the rack. You hear an audible click when the rails securely attach to the rack. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 103: To Insert And Lock The Server In The Rack

    Attaching Express Slide Rails to the Rack FIGURE: Caution – Deploy the antitilt feature on the rack before continuing the installation. Related Information “To Insert and Lock the Server in the Rack” on page 81 ■ ▼ To Insert and Lock the Server in the Rack 1.
  • Page 104 Inserting Express Rail Mounting Brackets Into the Slide Rails FIGURE: 4. Slide the green release tab. 5. Push the server all the way into the rack until it locks into place. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 105: Installing The Cable Management Arm

    Related Information SPARC Enterprise T5120 and T5220 Servers Getting Started Guide ■ SPARC Enterprise T5120 and T5220 Servers Getting Started Guide (DC) ■ Installing the Cable Management Arm The rackmounting kit for each server comes with the same cable management arm (CMA) assembly.
  • Page 106: Dismounting The Server

    Caution – To prevent damage to your server, do not move the rack while the server is mounted. To install or replace internal parts in the server, you must first remove the server from the rack. For the removal procedure, refer to the SPARC Enterprise T5120 and T5220 Servers Service Manual. Related Information SPARC Enterprise T5120 and T5220 Servers Service Manual ■...
  • Page 107: Assembling And Installing Dc Power Cables For The Sparc Enterprise T5120 Server

    “Connecting the DC Input Power Cords to the Server” on page 96 ■ The procedures in this section are only for the SPARC Enterprise T5120 server. Do not use this section for assembling the DC power cables for the SPARC Enterprise T5220 server.
  • Page 108: Dc Supply And Ground Conductor Requirements

    The DC battery power source must be in the same premises as the server. The server cannot be in one building with the power source in another building. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 109: Overcurrent Protection Requirements

    The following procedure describes how to assemble the DC input power cables for the SPARC Enterprise T5120 server. Assemble one cable for each DC power supply in your server. Assembling and Installing DC Power Cables for the SPARC Enterprise T5120 Server...
  • Page 110: To Assemble The Dc Input Power Cables

    2. Identify the parts that you will use to assemble the DC input power cables For each cable, you need the three parts shown in the figure below. These items are provided in the shipping kit that came with your server. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 111 Note – Depending on the DC power source, the -48V or -60V (negative terminal) might be marked with a minus (-) symbol, and the -48V or -60V Return (positive terminal) might be marked with a positive (+) symbol. Assembling and Installing DC Power Cables for the SPARC Enterprise T5120 Server...
  • Page 112 Insert a small slotted screwdriver into the rectangular hole directly above the ■ hole in the DC input plug where you want to insert the first wire, and push in to open the cage clamp. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 113 Opening the DC Input Plug Cage Clamp Using the Cage Clamp Operating Lever FIGURE: Figure Legend Top of input plug Assembling and Installing DC Power Cables for the SPARC Enterprise T5120 Server...
  • Page 114 6. Feed the exposed section of the appropriate wire into the round hole in the DC input plug. Connector Wiring Assignments FIGURE: Figure Legend Top of connector From chassis ground (green/yellow) From -48V or -60V return From -48V or -60V SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 115: To Install The Strain Relief Housings

    Ensure that the strain relief housing snaps into place on the DC input plug. You cannot complete the assembly correctly if the strain relief housing is not snapped into place. Assembling and Installing DC Power Cables for the SPARC Enterprise T5120 Server...
  • Page 116 Routing the Wires out of the Bottom Portion of the Strain Relief Housing FIGURE: 3. Insert a tie wrap into the bottom portion of the strain relief housing. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 117 DC input plug. Push the top and bottom portions of the strain relief housing together until they snap into place. Assembling and Installing DC Power Cables for the SPARC Enterprise T5120 Server...
  • Page 118: Connecting The Dc Input Power Cords To The Server

    Caution – Do not proceed with these instructions until you have turned off the power from the DC power source through the circuit breakers. 2. Route the power cables in the rack and secure the cables with nylon tie wraps. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 119 “Powering On the System for the First Time” on page Related Information “Assembling and Installing the DC Input Power Cables” on page 87 ■ Assembling and Installing DC Power Cables for the SPARC Enterprise T5120 Server...
  • Page 120 SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 121: Assembling And Installing Dc Power Cables For The Sparc Enterprise T5220 Server

    Assembling and Installing DC Power Cables for the SPARC Enterprise T5220 Server This section provides the following DC input power information for the SPARC Enterprise T5220 server: “Requirements for Servers With DC Input Power” on page 99 ■ “Assembling and Installing the DC Input Power Cables” on page 101 ■...
  • Page 122: Dc Supply And Ground Conductor Requirements

    40 A fast-trip double-pole DC-rated circuit breaker for each power supply unit. Note – Overcurrent protection devices must meet applicable national and local electrical safety codes and be approved for the intended application. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 123: Assembling And Installing The Dc Input Power Cables

    Assembling and Installing the DC Input Power Cables The following procedure describes how to assemble the DC input power cable for the SPARC Enterprise T5220 server. Assemble one cable for each DC power supply in your server. Before you begin the installation procedure, verify that the required conditions described in the following table have been satisfied.
  • Page 124 DC power source. Do not strip more than 1/2 inches (13 mm) from each wire. Doing so leaves uninsulated wire exposed from the DC connector after the assembly is complete. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 125 Stripping the Insulation From the Wire FIGURE: Figure Legend Strip the insulation 1/2 in., or 13 mm. 5. Open the cage clamp by inserting the cage clamp tool (or small screwdriver) into the rectangular hole directly above the hole in the DC input plug where you want to insert the first wire, and push in to open the cage clamp.
  • Page 126: To Connect The Dc Input Power Cords

    9. Repeat this procedure to create as many DC input power cables as you need for your unit. ▼ To Connect the DC Input Power Cords 1. Ensure that the circuit breaker to your power source is turned off. SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 127 Caution – Do not proceed with these instructions until you have turned off the power from the DC power source through the circuit breakers. 2. Route the power cables in the rack and secure the cables with nylon tie wraps. 3.
  • Page 128 SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 129: Index

    Index Symbols #. escape sequence for system console, 64 DB-9 TTY connector, 11 DC input plug, 89, 102 DC input power, 85, 99 accessing ILOM command line, 51 DC input power cable, assembling, 87, 101 adapters for serial cables, 36 DC input power, connecting, 96, 104 address, IP, 8 definitions, See terms, 19...
  • Page 130 51 on, 9 path names, 60 standby voltage, 3.3v, 47 pins, mounting bracket locating, 76 stop bit, 45 ports, slots, and LEDs illustrated, 12 SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...
  • Page 131 strain relief housing, 89, 93 system console escape sequence #., 64 terms left and right sides, 19 slide rail assembly, 15, 74 topic guidelines, 1, 19, 43, 71, 73, 85, 99 TTYA serial port, 11 uadmin command, 63, 64 unlocking mounting bracket, 76 Index...
  • Page 132 SPARC Enterprise T5120 and T5220 Servers Installation Guide • July 2009...

This manual is also suitable for:

Sparc enterprise t5220
