Adjust Delay

Opens a window allowing you to set digital delay to any of the analog or digital inputs.

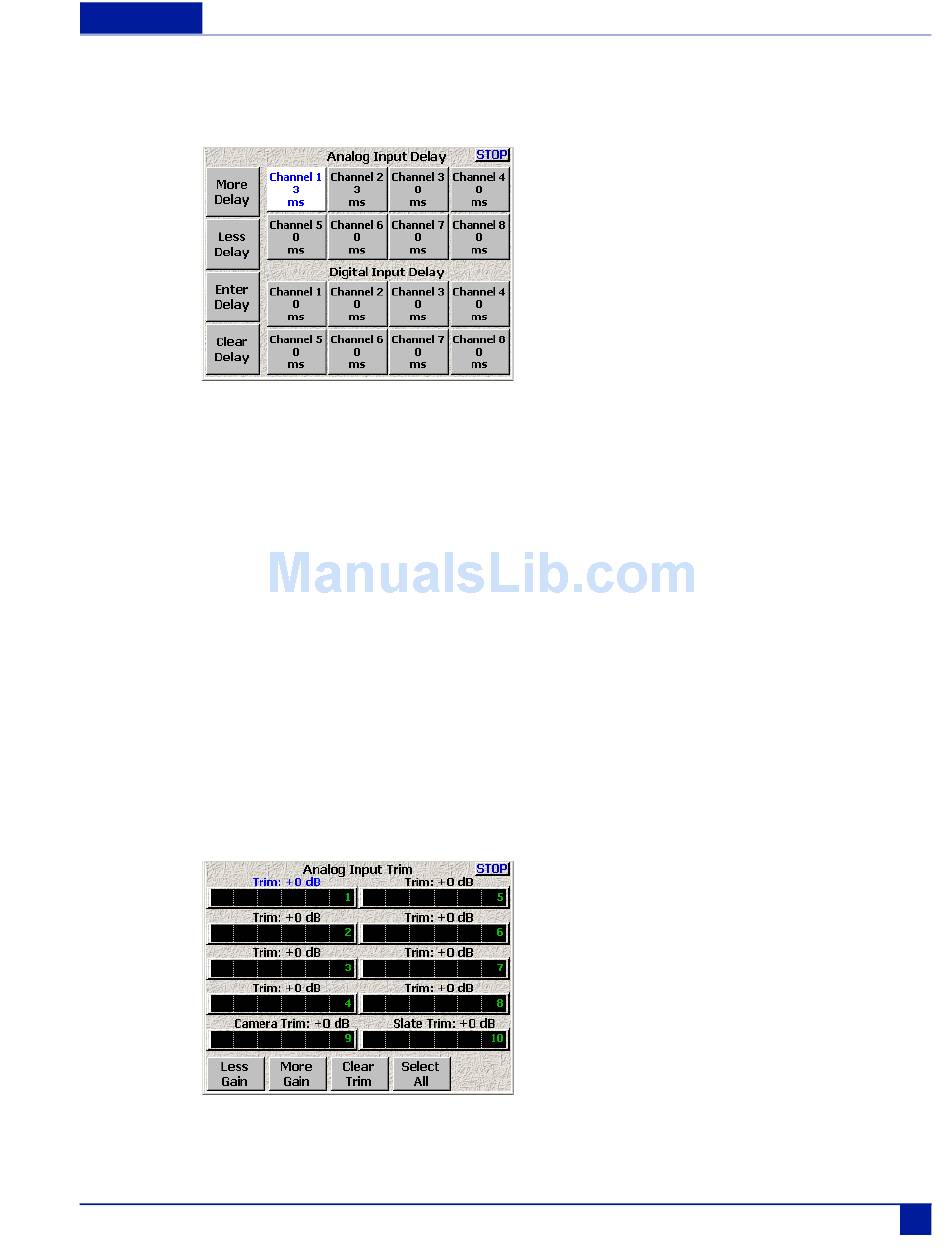

Figure 27 Adjust Delay Screen

Adjusting the Delay

1. Press the channel you want adjust the delay in.
The button changes to white indicating it is the selected channel.
2. Select either More Delay, Less Delay or Enter Delay.
Note: When using Digital Radio Microphones which have an inherent 3 ms delay, you can minimize phasing anomalies
between digital and analog radio mics by adding 3 ms of delay to the analog radio mic inputs.
3. Repeat steps 1 & 2 until all channels have been adjusted.

Clear Delay

Clears all the entered delays.

Adjust Trim

Opens a menu that allows you to individually adjust the gain on each of the 8 analog inputs and the camera
return input.
Figure 28 Analog Trim screen
