Deva 5.8 and Deva 16 Owner's Manual

Headphone Mix Menu

This button opens a new screen which displays the full Headphone Matrix.

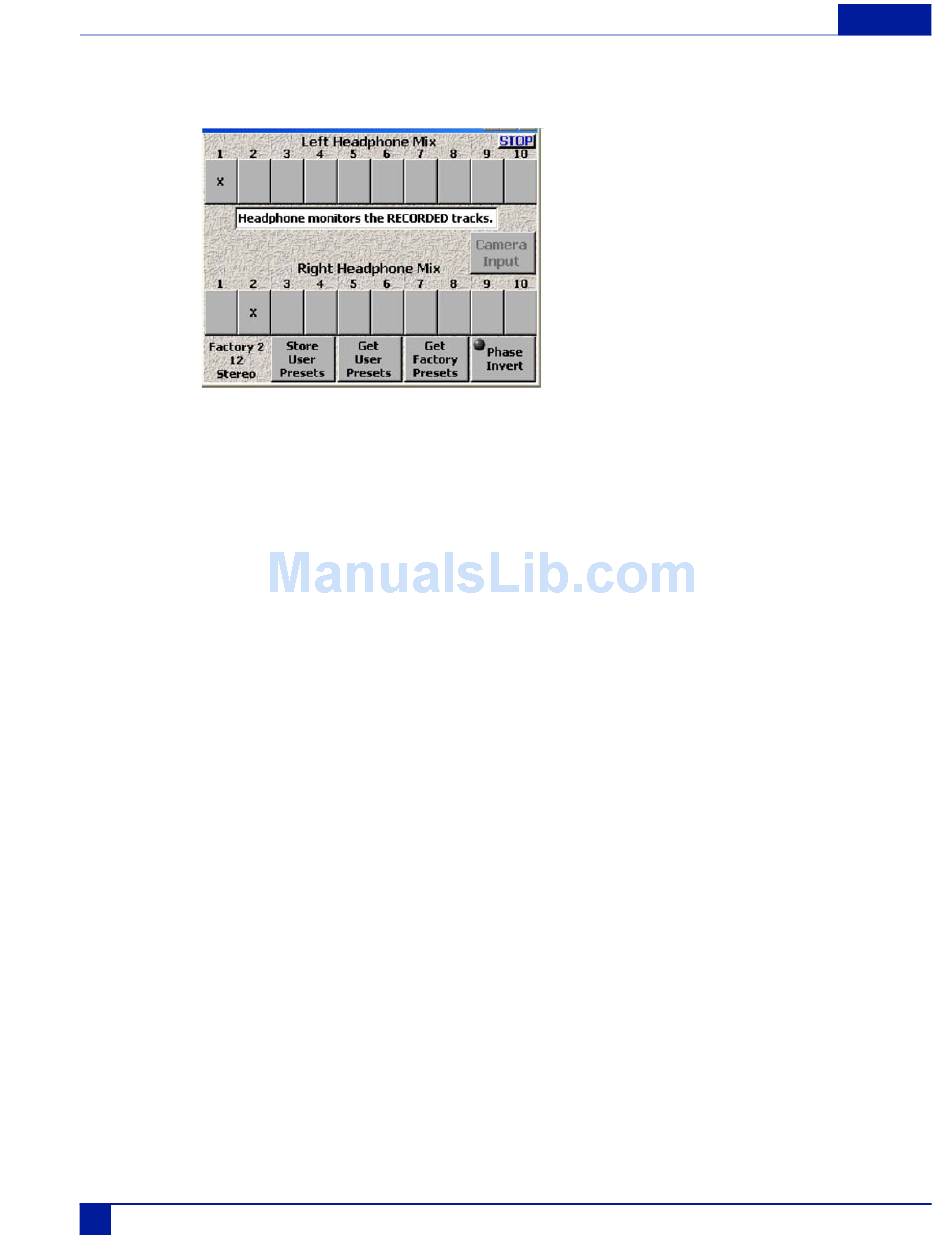

Figure 17 Headphone Mix Screen

This screen routes the Recorded Tracks to the headphones. An audio channel can be placed in the left,

right, or both headphone channels.The monitoring is E to E. You are listening to what is being placed onto

the hard drive. Check-Sum Error Correction insures that what is being sent to the internal hard drive is

being recorded there.

When a 10-pin camera connector is attached to the camera port, this button allows you to monitor

the return feed.

Note: The camera feed is a mono return, while there are two camera return feeds, they are internally summed to mono.

brings up 20 factory monitoring presets:

Allows you to create and store your own monitor presets.

allows you to recall these presets.

Reverses the phase of the monitored channel for use in M/S monitoring. This does not change the

phase of the recorded channel, it only reverses phase in the monitor.

Chapter 5
