Input Control Menu

The eight analog inputs parameters are set from the input control menu.

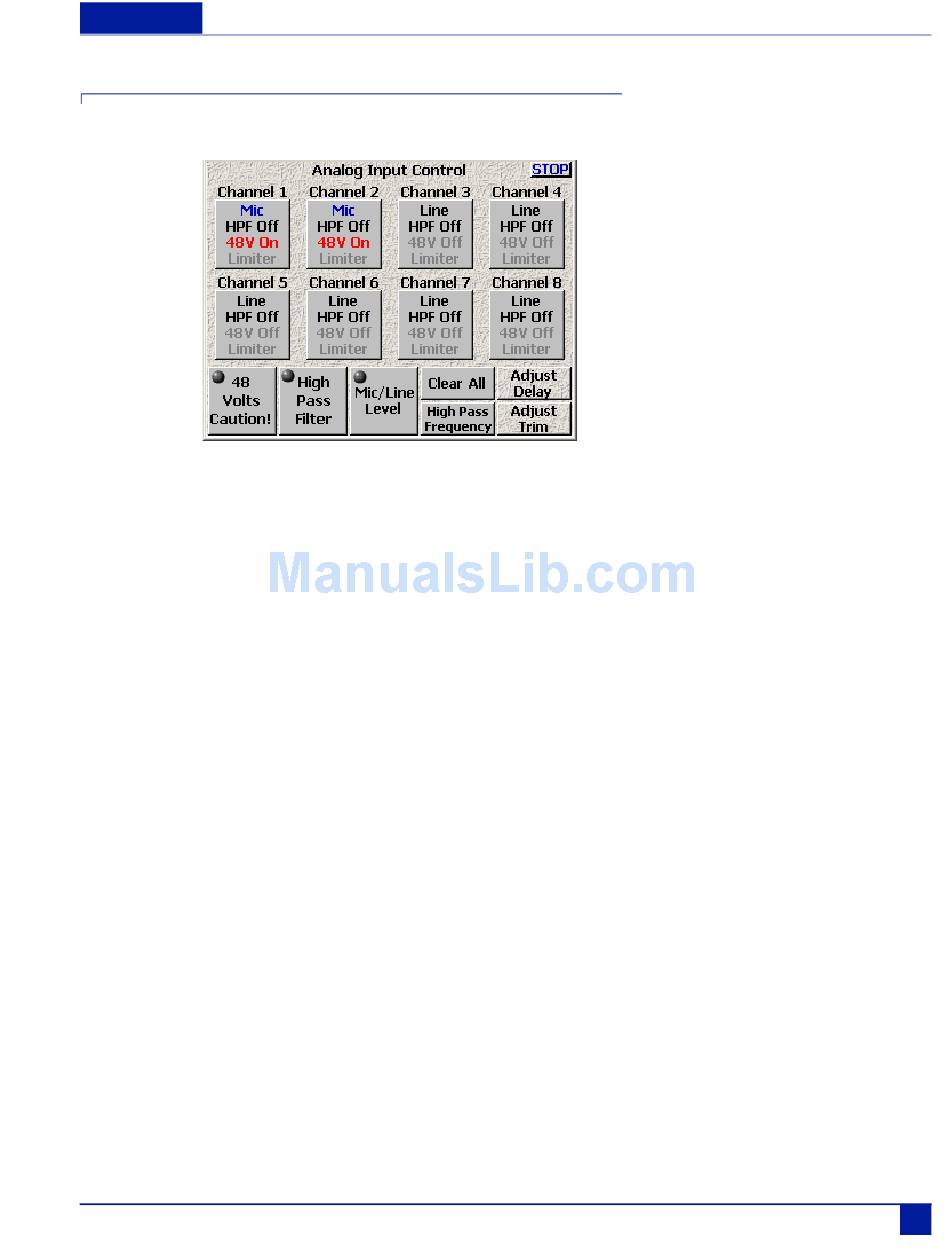

Figure 24 Analog Input Control Menu

Phantom Power

Phantom power works in cooperation with the Mic/Line Level settings. If you have a channel set to Line
Level, you cannot turn on phantom power to that channel.

Setting Phantom Power

To Set +48 v Phantom Power, select the 48 Volts Caution! button, then select the buttons for the desired
channels. The 48 Volts button flashes red when activated.When phantom power is enabled for a channel,
the 48V On indicator appears red.
Note: If you change a channel from Microphone input (Mic) to Line input (Line), 48V On is automatically disabled for that
channel.

High Pass Filter

Each analog input can have a high pass filter applied to it. You can enable the high pass filter for both line
and mic inputs.

Enabling the High Pass Filter

1. Press the High Pass Filter button
The button's LCD indicator flashes green when pressed.
2. Set the High Pass Frequency.
Setting and changing the High Pass Frequency is outlined in the section Setting High Pass Frequency on
page 69.
3. Press the individual channel the High Pass Filter should be applied to.
The HPF indicator changes to purple with the high pass frequency indicated.
