Deva 5.8 and Deva 16 Owner's Manual

Operating Mode

This button opens up the Operating Mode Main screen.

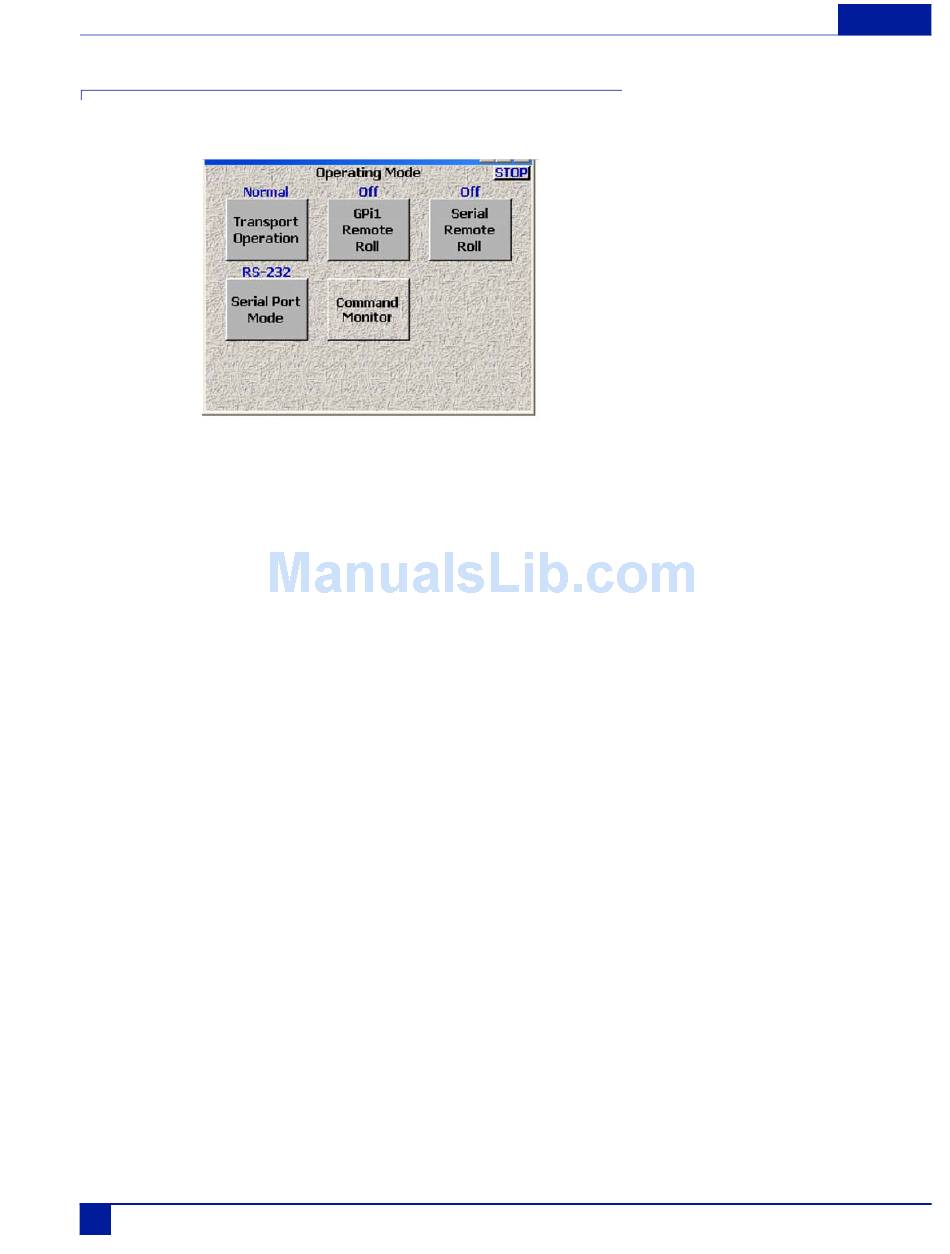

Figure 15 Operating Mode Main Screen

Transport Operation

This button toggles through three transport options; normal, T.C. Chase, and Auto-load.

Normal

All functions are controlled by the main transport buttons.

T.C. Chase

In playback mode, Deva chases external time code.

Auto-Load

Deva transport controls are locked to an external recorder such as an HD camera. When the camera goes
into record, The Deva also goes into the Record mode

GPI Remote Roll

Enables external transport control using a contact closure switch. This button toggles through the three
options; off, Rising Edge, and Falling Edge.

OFF

Normal Deva Operating mode.

Rising Edge

Places the Deva into record when the contact is open.

Falling Edge

Places the Deva into record when the contact is closed.
59
Chapter 5
