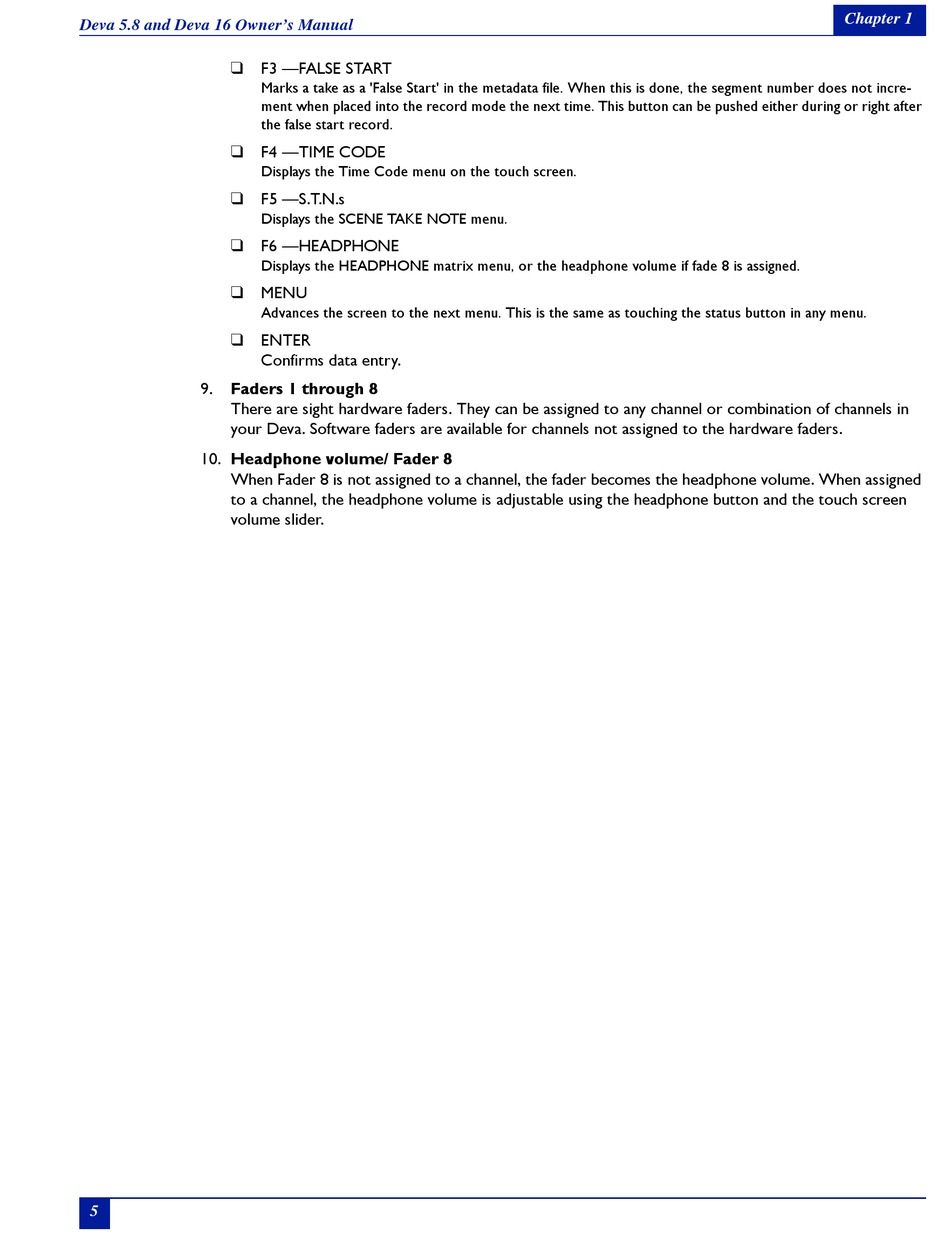

Deva 5.8 and Deva 16 Owner's Manual
q F3 —FALSE START
q F4 —TIME CODE
q F5 —S.T.N.s
q F6 —HEADPHONE
q MENU
q ENTER
9. Faders 1 through 8
There are sight hardware faders. They can be assigned to any channel or combination of channels in
your Deva. Software faders are available for channels not assigned to the hardware faders.
10. Headphone volume/ Fader 8
When Fader 8 is not assigned to a channel, the fader becomes the headphone volume. When assigned
to a channel, the headphone volume is adjustable using the headphone button and the touch screen
volume slider.
5
Marks a take as a 'False Start' in the metadata file. When this is done, the segment number does not incre-
ment when placed into the record mode the next time. This button can be pushed either during or right after
the false start record.
Displays the Time Code menu on the touch screen.
Displays the SCENE TAKE NOTE menu.
Displays the HEADPHONE matrix menu, or the headphone volume if fade 8 is assigned.
Advances the screen to the next menu. This is the same as touching the status button in any menu.
Confirms data entry.
Chapter 1
