Deva 5.8 and Deva 16 Owner's Manual
4. Repeat Step 3 for all channels, to enable the high pass filter.
Note: You can set different frequencies for each channel, simply repeat steps 2 and 3 for each frequency.

Setting High Pass Frequency

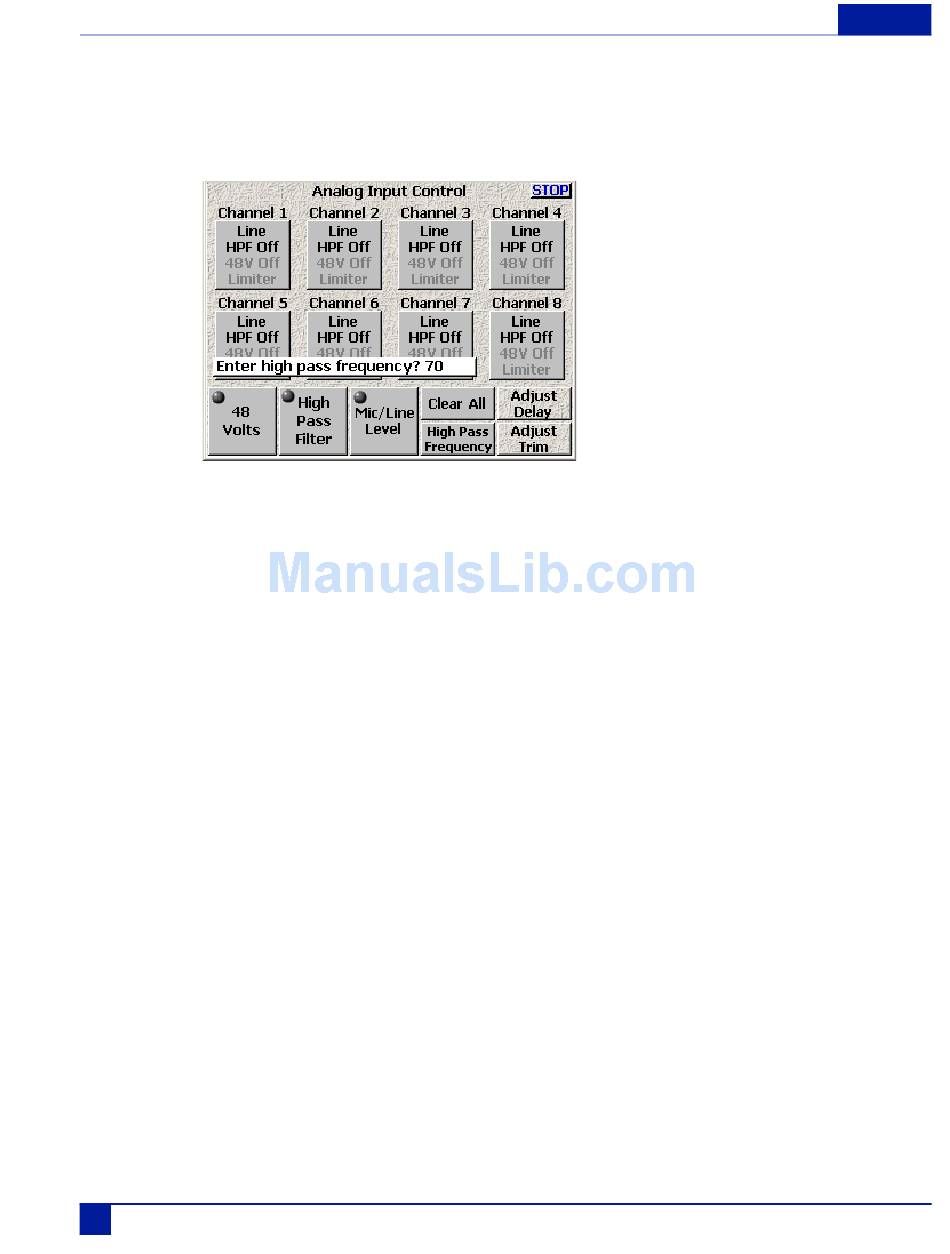

Figure 26 Changing High Pass Frequency
To set the High Pass Frequency, do the following;
1. Press the High Pass Frequency button
You are prompted to enter the high pass frequency in Hz.
2. Use the keypad numbers to the frequency.
The default frequency is 70 Hz, the valid range is 30 Hz to 240 Hz.
3. Press High Pass Frequency button
This sets the frequency.
Note: The frequency remains until the Deva is powered down or you change it again.

Mic/Line Level

To set the Mic/Line input gain, press the Mic/Line button, then select the individual Input Channels. 'MIC'
appears in DARK BLUE. 'LINE' appears in BLACK.

Clear All

This button provides a convenient way to clear all the settings, and put the Analog Input Control screen
back to the factory default settings.
69
Chapter 5
