Chapter 5

Headphone Mix

Selects the basic headphone matrix.

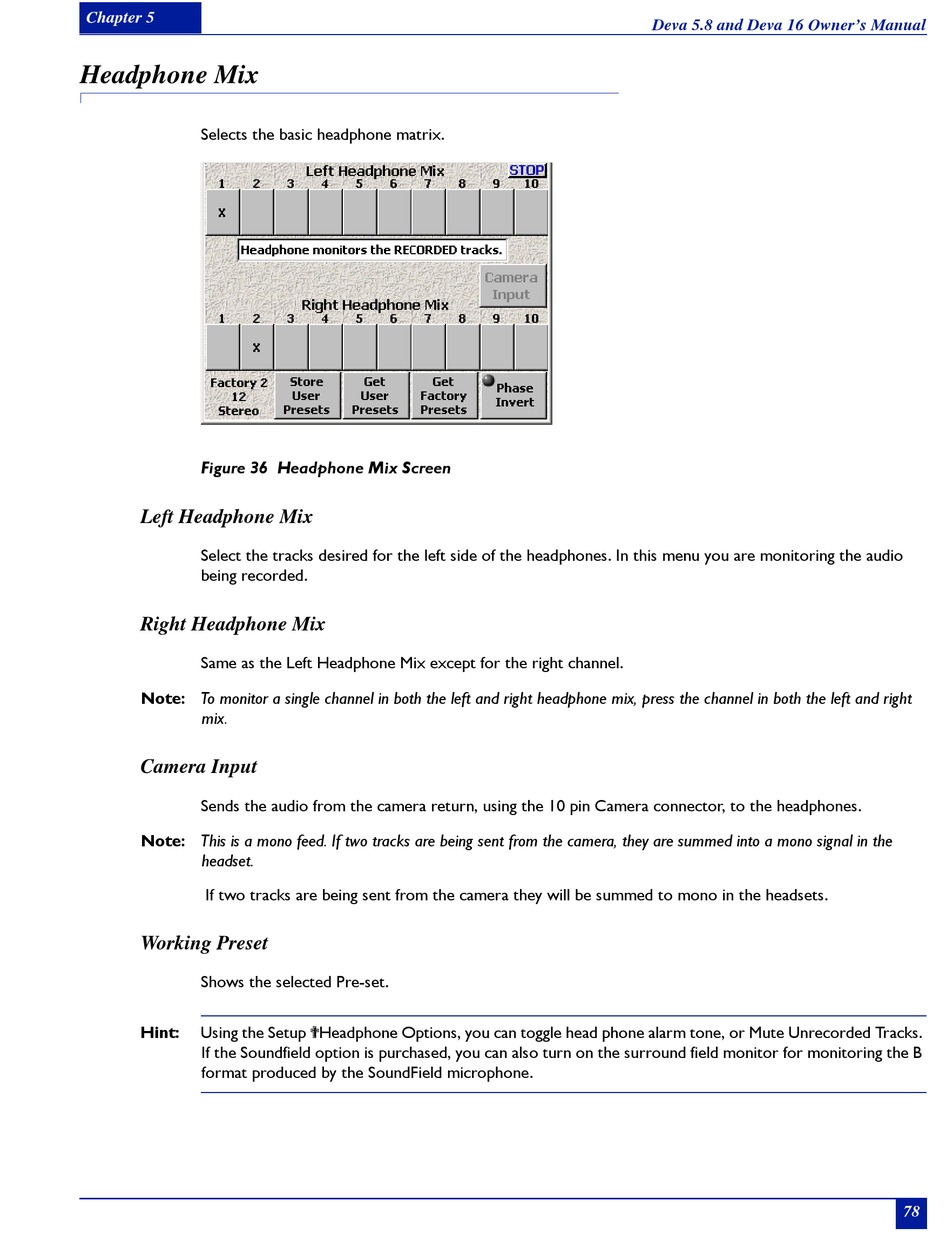

Figure 36 Headphone Mix Screen

Left Headphone Mix

Select the tracks desired for the left side of the headphones. In this menu you are monitoring the audio
being recorded.

Right Headphone Mix

Same as the Left Headphone Mix except for the right channel.
Note: To monitor a single channel in both the left and right headphone mix, press the channel in both the left and right
mix.

Camera Input

Sends the audio from the camera return, using the 10 pin Camera connector, to the headphones.
Note: This is a mono feed. If two tracks are being sent from the camera, they are summed into a mono signal in the
headset.
If two tracks are being sent from the camera they will be summed to mono in the headsets.

Working Preset

Shows the selected Pre-set.
Hint: Using the Setup ?Headphone Options, you can toggle head phone alarm tone, or Mute Unrecorded Tracks.
If the Soundfield option is purchased, you can also turn on the surround field monitor for monitoring the B
format produced by the SoundField microphone.
