Chapter 2

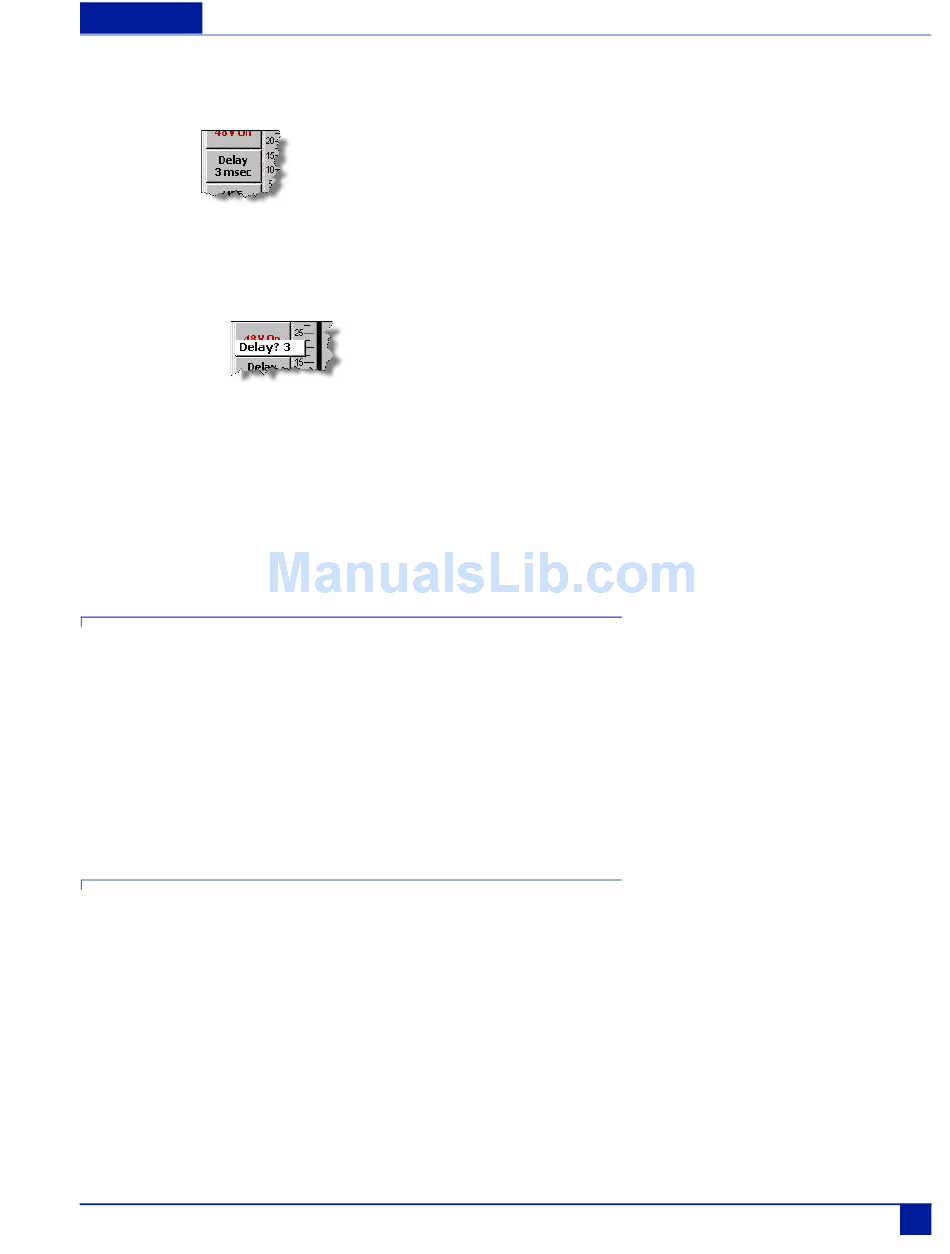

Adjusting Delay Using the Analog Input Menu

Main Menu > Input Control > Analog Input Channel
Figure 15
Perform the following to adjust delay on individual channels:
1. Press Delay on the Analog Input Channel menu
A dialog appears requesting the amount of delay.
2. Enter the amount of delay using the keypad on the Deva
3. Press Enter to complete entering the delay amount.
Pressing either the STOP button in the upper right corner of the screen or using the Menu key on the
keypad exits the Analog Input Channel menu and brings you back to the Analog Input Control menu.

Digital Inputs

The Deva comes with an AES Digital Input cable. This cable gets connected on the left side of the Deva, see
Left Panel Descriptions on page 6 for the location of this connector.
The AES cable fans out to four separate XLR style inputs. Each input is a stereo pair (Input 1,2; Input 3,4;
Input 5,6; Input 7,8). You can use any combination of these inputs with your Deva. The input number is
written on each cable. You can assign these inputs to any channel or combinations of channels.
No special settings other than delay is available for digital inputs. See "Adjusting The Delay" on page 16 for
instructions on adjusting the delay.

Analog Outputs

The Analog outputs on the Deva go through a DB-25 connector located on the right side of the Deva.
There are six outputs available through this connector. A break-out cable can be purchased from Zaxcom
as an option, or through many retailers. A wiring diagram is also provided in this manual if you want to
manufacture your own break-out cable.
The six outputs can be assigned from any combination of channels.
Delay Adjustment on Analog Input Menu
