Deva 5.8 and Deva 16 Owner's Manual

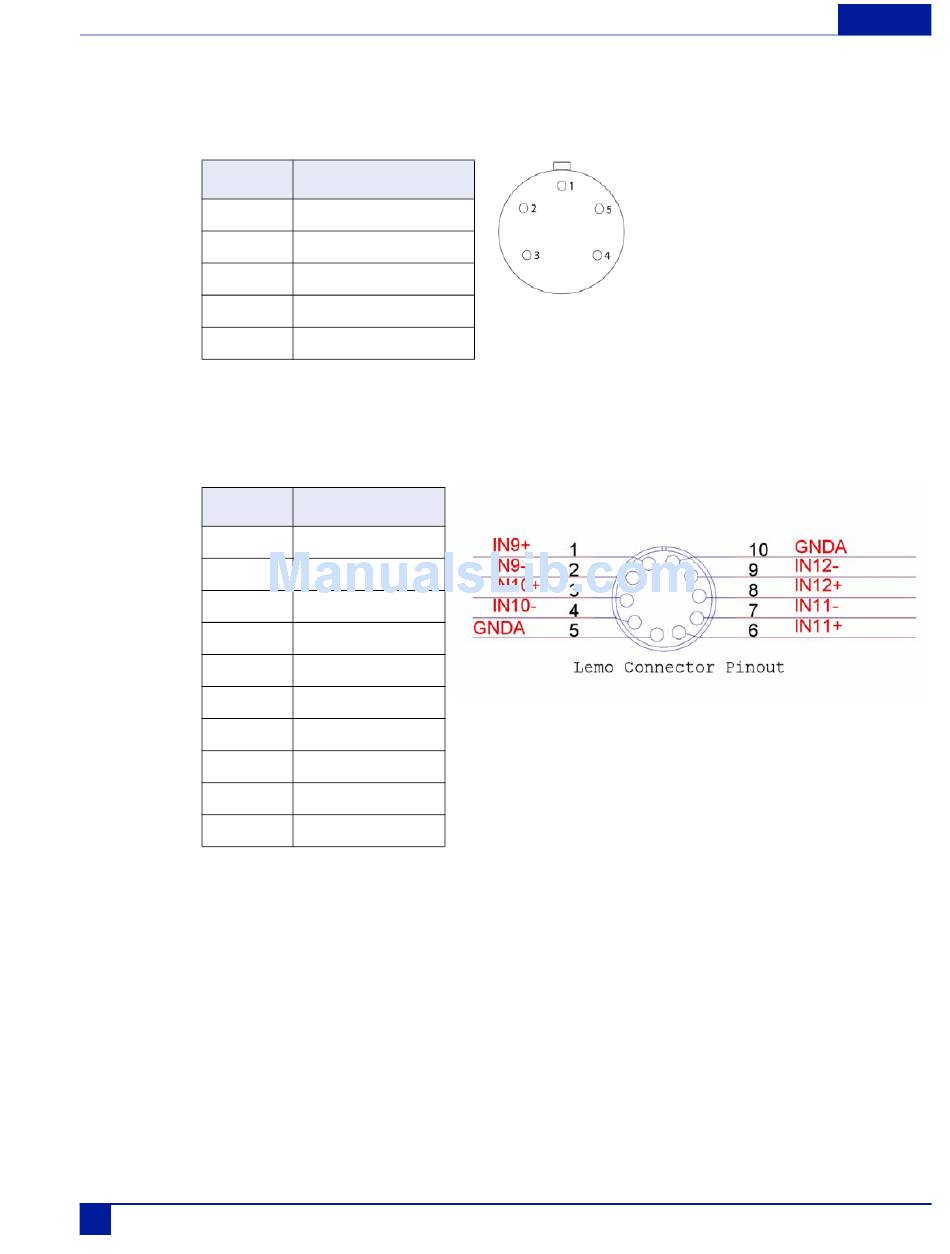

Time Code Connector

The Time Code connector on the Deva is a Lemo 5 pin connector. The LEMO part number is
EGG.OB.305.CLL.
Pin
1
2
3
4
5

Analog Input Channels 9 through 12 (Deva 16)

On the Deva 16 analog input channels 9 through 12 use a 10-pin LEMO connector. These channels are line
level, and the cable is provided.
Pin
1
2
3
4
5
6
7
8
9
10
43
Signal Description
Ground
Time Code In
N/C
N/C
Time Code Out
Signal Description
Input CH 9 +
Input CH 9 -
Input CH 10 +
Input CH 10 -
Ground
Input CH 11 +
Input CH 11 -
Input CH 12 +
Input CH 12-
Ground
Chapter 4
