c. Open Menu(S), TAG C "H.CONVER SAW T", and adjusted so that misconvergence of the horizontal
direction may become the minimum in D of the Fig 10-7 and E and F point. Open Menu(S), TAG C
"V.CONVER SAW T", and adjusted so that misconvergence of the vertical direction may become the
minimum.
Ｒ Ｂ
H.CONVER SAW T

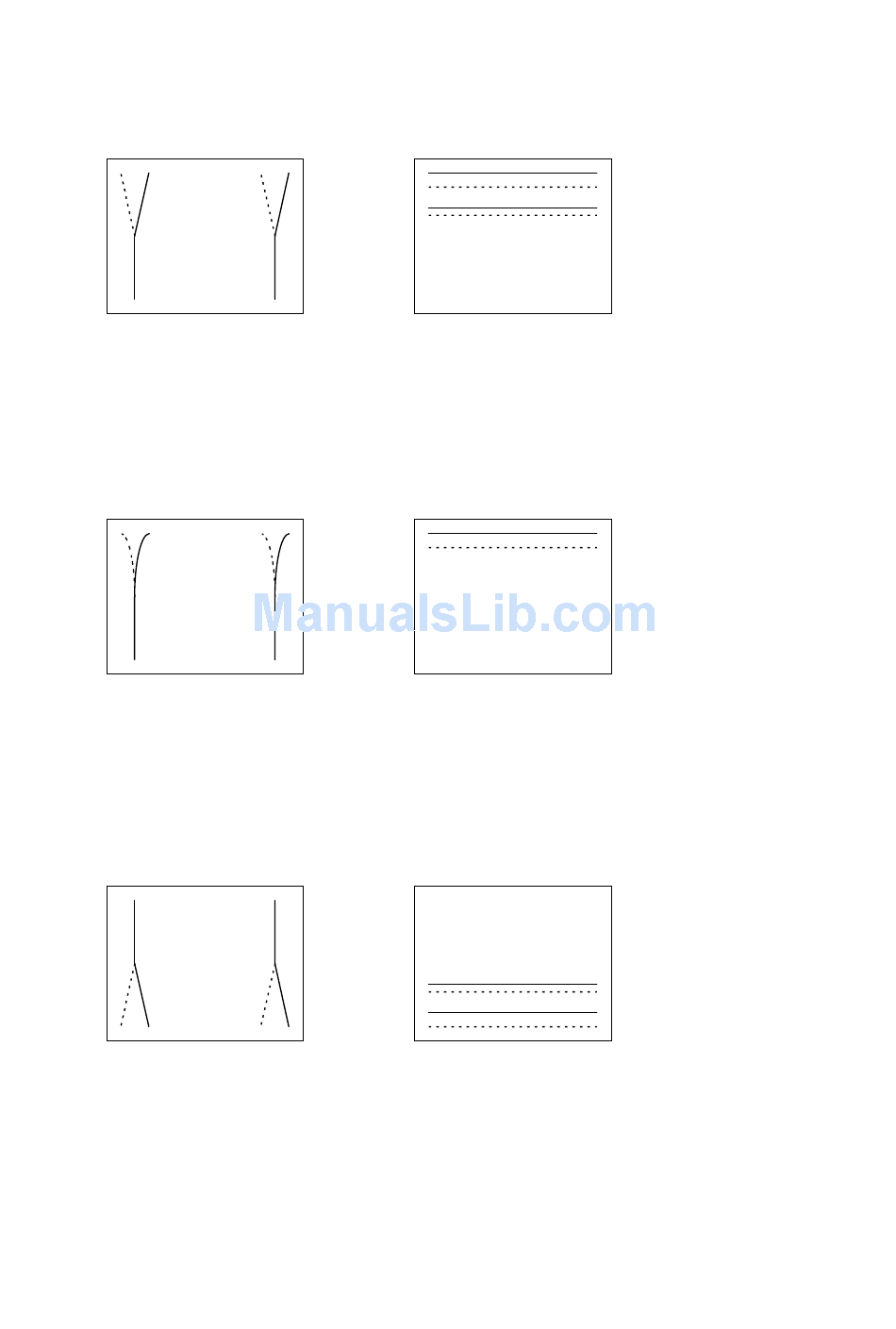

Fig 10-2 The move of the R line and the B line when "H./V. CONVER SAW T" was moved in the + direction.
d. Open Menu(S), TAG C "H.CONVER PARA T", and adjusted so that misconvergence of the horizontal
direction may become the minimum in A of the Fig 10-7 and B and Cpoint. Open Menu(S), TAG C
"V.CONVER PARA T", and adjusted so that misconvergence of the vertical direction may become
minimum.
Ｒ Ｂ
H.CONVER PARA T
Fig 10-3 The move of the R line and the B line when "./V. CONVER PARA T"was moved in the + direction.
e. Open Menu(S), TAG C "H.CONVER SAW B", and adjusted so that misconvergence of the horizontal
direction may become the minimum in J of the Fig 10-7 and K and L point. Open Menu(S), TAG C
"V.CONVER SAW B", and adjusted so that misconvergence of the vertical direction may become
minimum.
Ｒ Ｂ
H.CONVER SAW B
Fig 10-4 The move of the R line and the B line when "H./V. CONVER SAW B" was moved in the + direction.
Ｒ Ｂ
Ｂ
Ｒ
Ｒ Ｂ
Ｂ
Ｒ
Ｂ
Ｒ
Ｒ Ｂ
V.CONVER SAW T
V.CONVER PARA T
V.CONVER SAW B
5-42
