8-7. Degaussing Circuit

When the power switch turns on, or when user accesses the OSM degauss control, the current flows from
CN-PM pin 3 to the base of Q682. Then Q682 and RL6V1 turn on for 3 seconds.
SW601
AC
AC
Posistor's
Automatic
Selective
Circuit
TH6V2
RL6V1
DEGAUSSING COIL
TH6V1

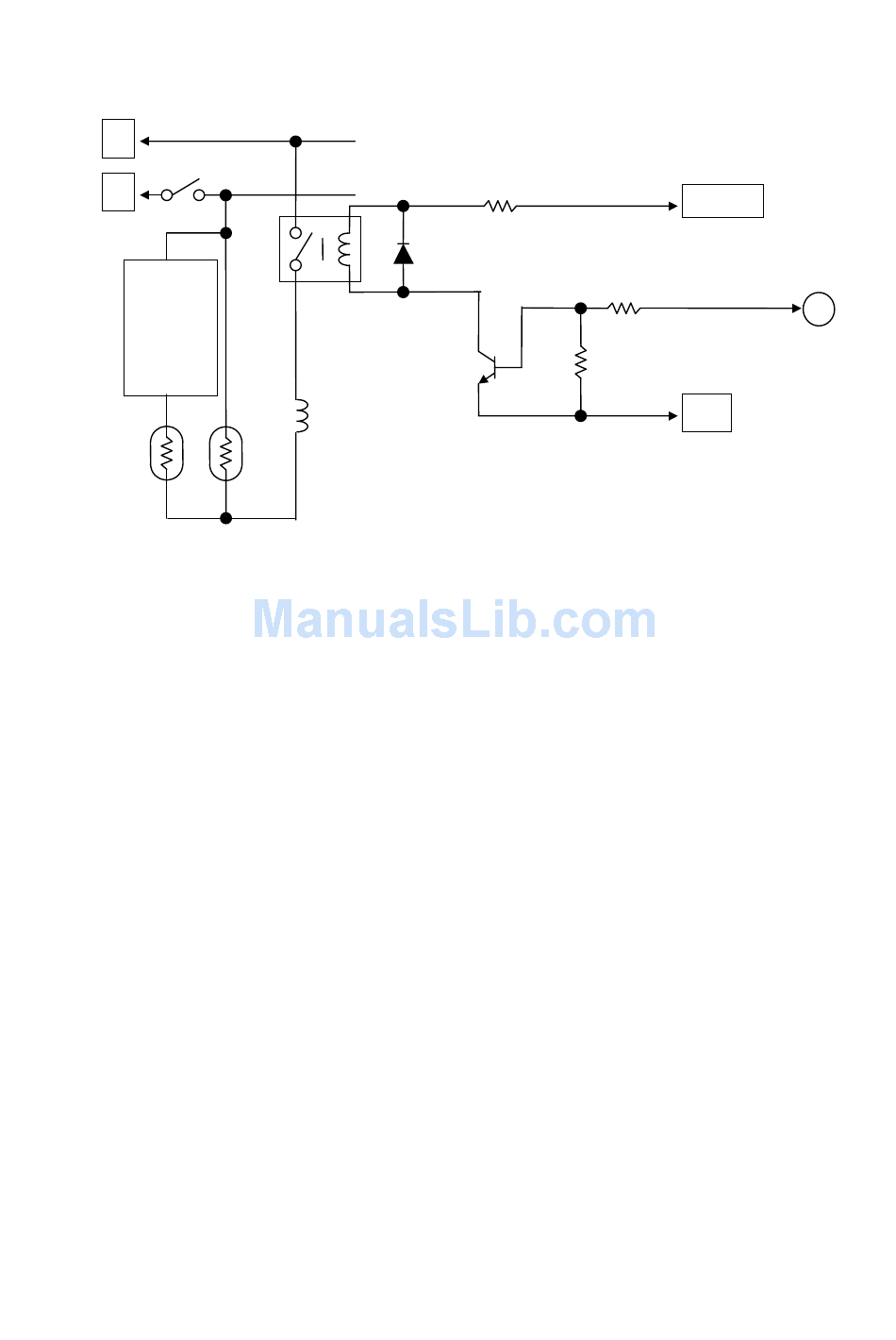

(Fig.8-7) Degaussing Circuit
R6V1
D6V1
Q682
8-45
+14.5V
R696
R697
GND
CN-PM
3
