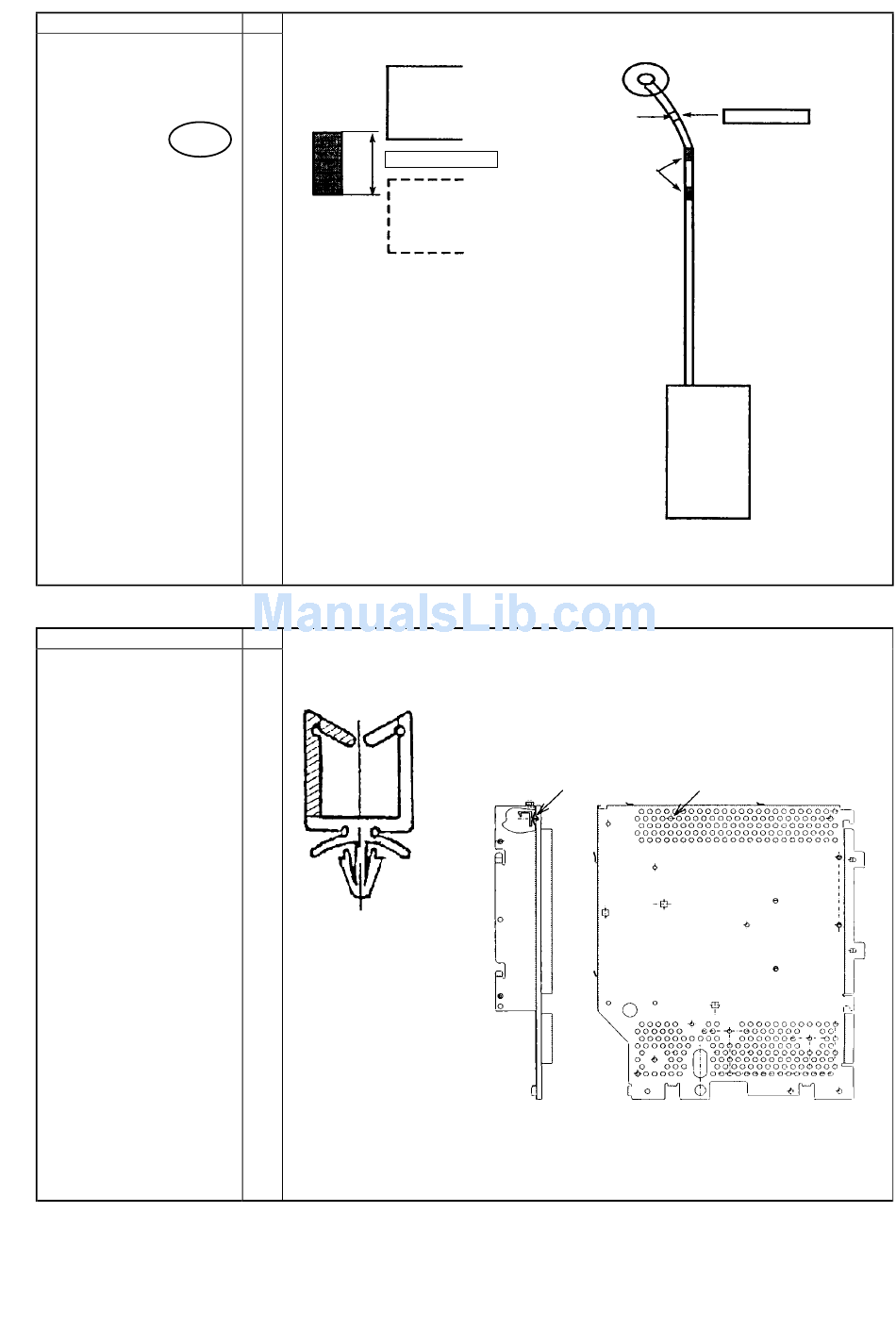

REMARK
Mount the ANODE CLAMPER to
ANODE LEAD.
(True up the upper ANODE
CLAMPER and adove WHITE
MARK.)
SAFETY
REMARK
CLAMPER,WIRE should be
partially cut away as atching area
on figure.
Put CLAMPER,WIRE in
BRACKET (L,B) as per sketch.
SYMBOL
167
ANODE
CLAMPER
Within white mark
WHITE
ANODE
MARK
CLAMPER
SYMBOL
182
WHITE
MARK
Lower edge
YELLOW
Upper edge
MARK
BRACKET (L,B)
4-15
ANODE CLAMPER
FBT
Position of CLAMPER
