ASSEMBLY

• Before you disassemble the set, turn off power and pull out the power plug.
• Use the appropriate screwdrivers that first the screws. If you use screwdriver that does not fit, you may break
the screws.
• Disassembly is the opposite process of assembly.
• Carefully discharge the CRT anode potential by grounding to coating dag before removing Anode Cap.

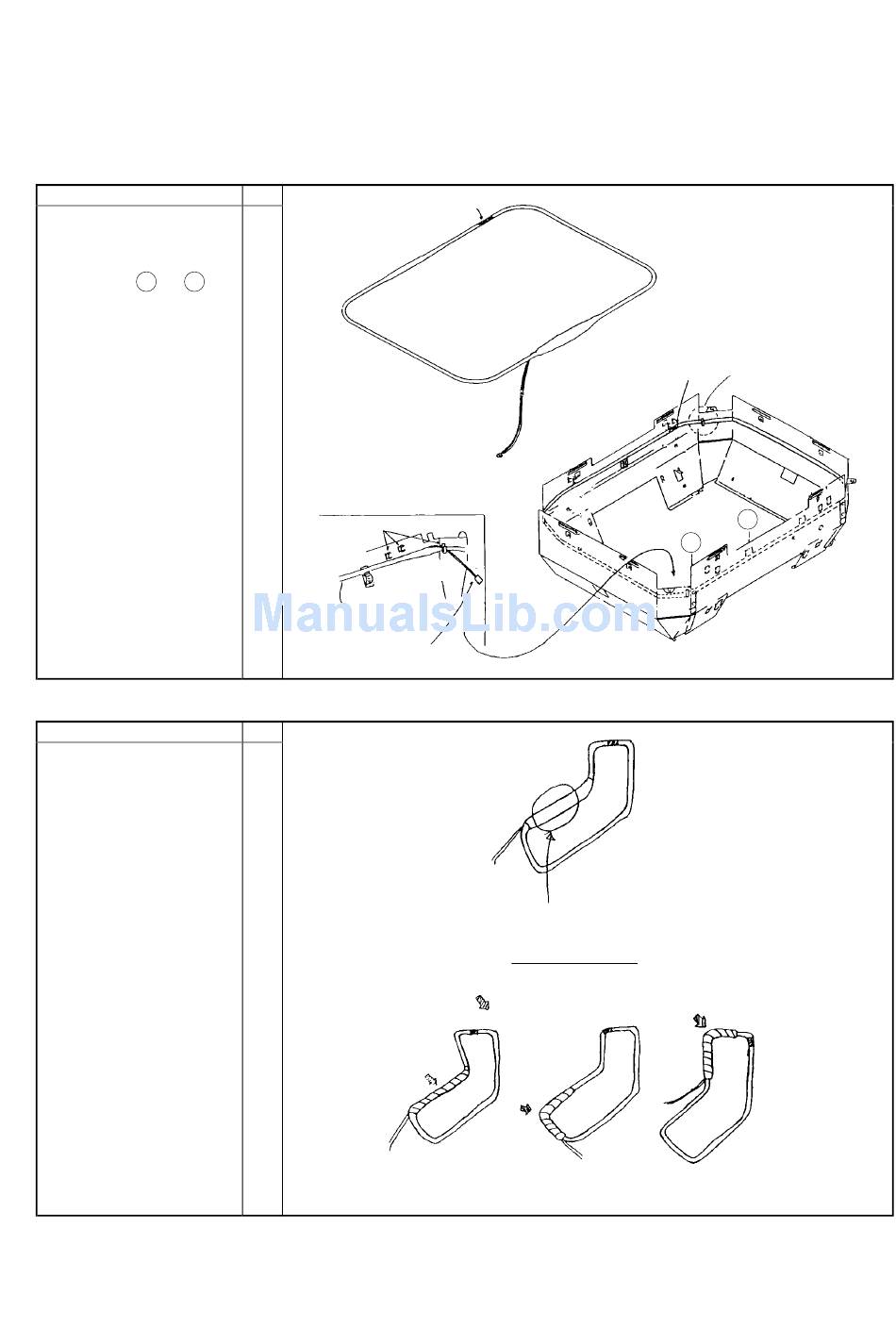

REMARK
Clamp the EMF COIL with
CLAMPER.(4 points)
The thick of the FMF COIL is
A' B'
placed between and
REMARK
Forming (Corner Coil)
SYMBOL
132
CLAMPER,WIRE
EMF COIL
EMF's connector
SYMBOL
133
Green
(TOP)
These area are wire contact points.
Don't bend these area.
EX.)
contact point
<OK> <NG>
4-1
132
Green
each corner
B'
A'
(Bottom)
<NG>
