NEC MultiSync FP1350 Service Manual page 26

REMARK

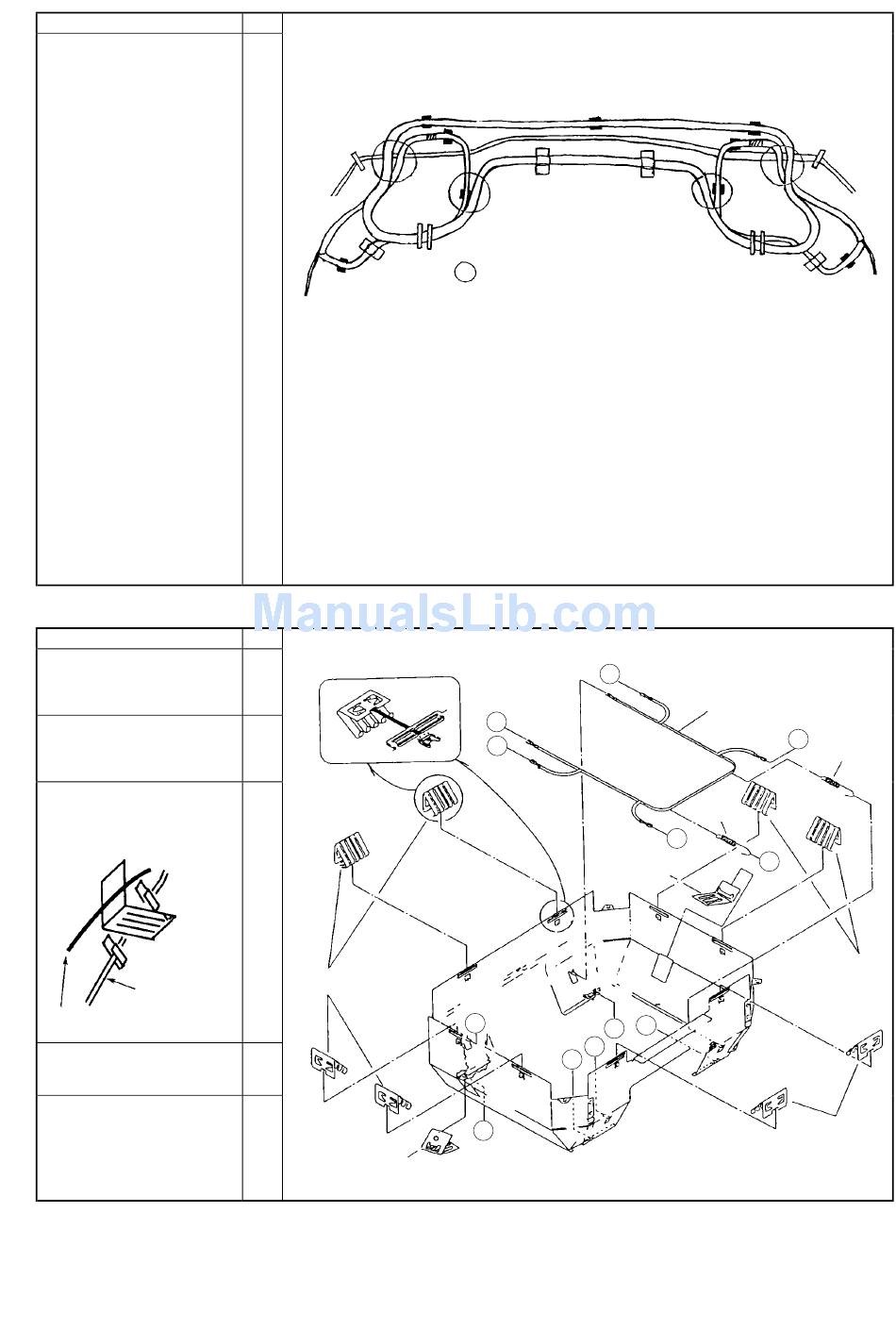

COIL FORMING
-LOWER SIDE-
REMARK
Mount LEAF SPRING (CRT) and
LEAF SPRING to the
PLATE,SHIELDING.
Mount CN-CE and COIL
SPRING to the PLATE,
SHIELDING.
EMC COIL's wire pass through
under the LEAF SPRING.(both
sides.)
LEAF
SPRING
EMC COIL's
wire
EMF COIL
Don't change the form the
LEAF,SPRING.
Inspect all wires, coils and
clampers to ensure that all leads
are dress properly and that all
clampers are closed and securely
fastened.
SYMBOL
SYMBOL
135
136
137
138
135
136
Don't cross
these areas.
(DEGAUSS COIL and CORNER COIL)
C'
D'
E'
D'
C'
A'
B'
E'
4-6
137
Z
138
B'
A'
136
Z
138
135
135
