PANEL DESCRIPTION

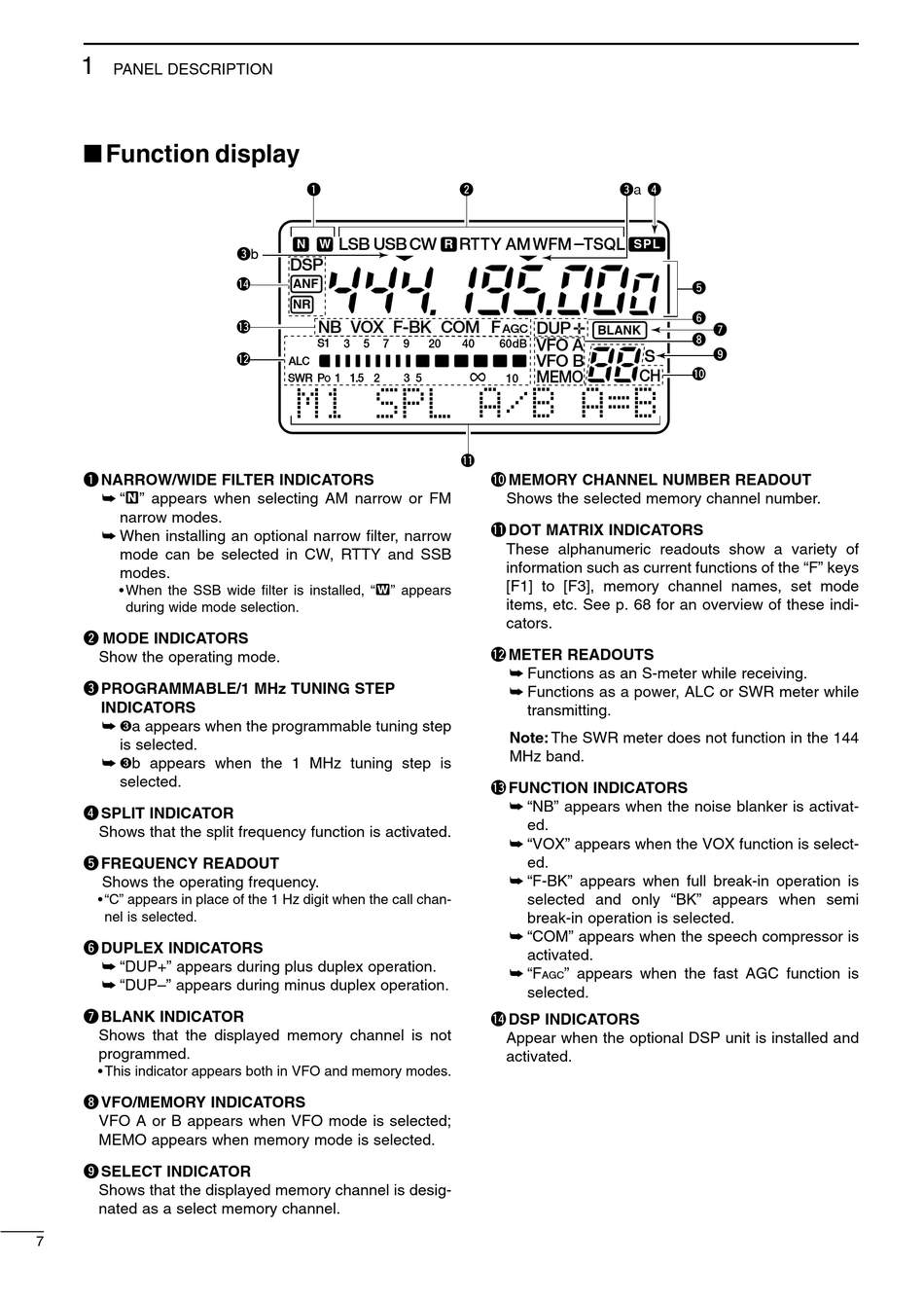

I Function display

q NARROW/WIDE FILTER INDICATORS
➥ "ã" appears when selecting AM narrow or FM
narrow modes.
➥ When installing an optional narrow filter, narrow
mode can be selected in CW, RTTY and SSB
modes.
• When the SSB wide filter is installed, "ç" appears
during wide mode selection.
w MODE INDICATORS
Show the operating mode.
e PROGRAMMABLE/1 MHz TUNING STEP
INDICATORS
➥ ˜a appears when the programmable tuning step
is selected.
➥ ˜b appears when the 1 MHz tuning step is
selected.
r SPLIT INDICATOR
Shows that the split frequency function is activated.
t FREQUENCY READOUT
Shows the operating frequency.
• "C" appears in place of the 1 Hz digit when the call chan-
nel is selected.
y DUPLEX INDICATORS
➥ "DUP+" appears during plus duplex operation.
➥ "DUP–" appears during minus duplex operation.
u BLANK INDICATOR
Shows that the displayed memory channel is not
programmed.
• This indicator appears both in VFO and memory modes.
i VFO/MEMORY INDICATORS
VFO A or B appears when VFO mode is selected;
MEMO appears when memory mode is selected.
o SELECT INDICATOR
Shows that the displayed memory channel is desig-
nated as a select memory channel.
7
q
LSB USB CW
N W
eb
DSP
!4
ANF
NR
!3
NB VOX F-BK COM F
S1
3 5 7 9
!2
ALC
SWR P 1 1.5 2 3 5
O
M1 SPL A/B A=B
w
RTTY AM WFM TSQL
R
DUP
AGC
BLANK
VFO A
20 40 60dB
VFO B
∞
MEMO
10
!1
!0 MEMORY CHANNEL NUMBER READOUT
Shows the selected memory channel number.
!1 DOT MATRIX INDICATORS
These alphanumeric readouts show a variety of
information such as current functions of the "F" keys
[F1] to [F3], memory channel names, set mode
items, etc. See p. 68 for an overview of these indi-
cators.
!2 METER READOUTS
➥ Functions as an S-meter while receiving.
➥ Functions as a power, ALC or SWR meter while
transmitting.
Note: The SWR meter does not function in the 144
MHz band.
!3 FUNCTION INDICATORS
➥ "NB" appears when the noise blanker is activat-
ed.
➥ "VOX" appears when the VOX function is select-
ed.
➥ "F-BK" appears when full break-in operation is
selected and only "BK" appears when semi
break-in operation is selected.
➥ "COM" appears when the speech compressor is
activated.
➥ "F
" appears when the fast AGC function is
AGC
selected.
!4 DSP INDICATORS
Appear when the optional DSP unit is installed and
activated.
