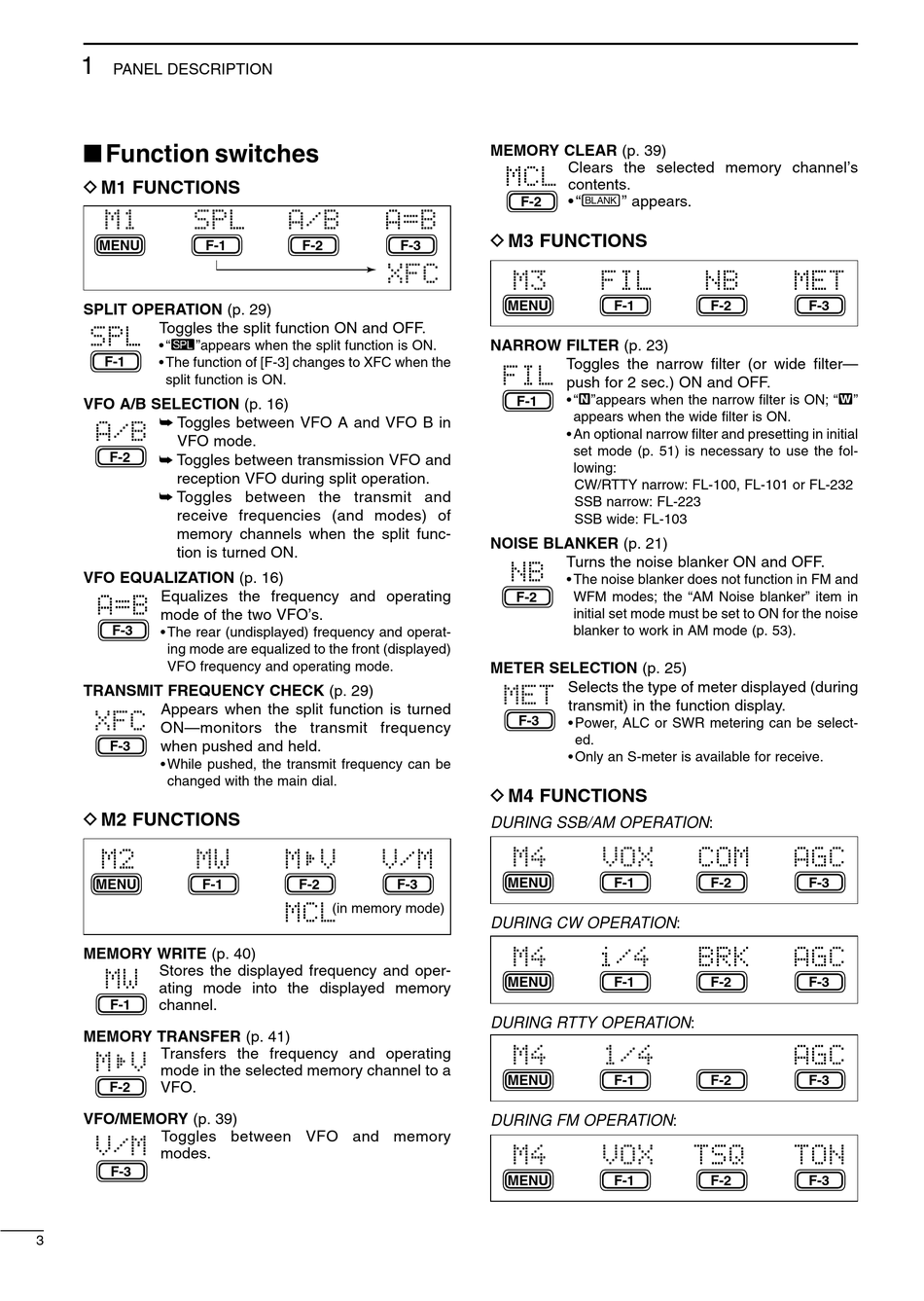

I Function switches

D M1 FUNCTIONS
M1 SPL
MENU F-1
SPLIT OPERATION (p. 29)
Toggles the split function ON and OFF.
SPL
• "ä"appears when the split function is ON.
F-1
• The function of [F-3] changes to XFC when the
split function is ON.
VFO A/B SELECTION (p. 16)
➥ Toggles between VFO A and VFO B in
A/B
VFO mode.
➥ Toggles between transmission VFO and
F-2
reception VFO during split operation.
➥ Toggles between the transmit and
receive frequencies (and modes) of
memory channels when the split func-
tion is turned ON.
VFO EQUALIZATION (p. 16)
Equalizes the frequency and operating
A=B
mode of the two VFO's.
F-3
• The rear (undisplayed) frequency and operat-
ing mode are equalized to the front (displayed)
VFO frequency and operating mode.
TRANSMIT FREQUENCY CHECK (p. 29)
Appears when the split function is turned
XFC
ON—monitors the transmit frequency
F-3 when pushed and held.
• While pushed, the transmit frequency can be
changed with the main dial.
D M2 FUNCTIONS
M2 MW
MENU F-1
MEMORY WRITE (p. 40)
Stores the displayed frequency and oper-
MW
ating mode into the displayed memory
channel.
F-1
MEMORY TRANSFER (p. 41)
Transfers the frequency and operating
MÜV
mode in the selected memory channel to a
VFO.
F-2
VFO/MEMORY (p. 39)
Toggles between VFO and memory
V/M
modes.
F-3
3
A/B A=B
F-2 F-3
XFC
MÜV V/M
F-2 F-3
MCL (in memory mode)
MEMORY CLEAR (p. 39)
Clears the selected memory channel's
MCL
contents.
• "}" appears.
F-2
D M3 FUNCTIONS
M3 FIL
MENU F-1
NARROW FILTER (p. 23)
Toggles the narrow filter (or wide filter—
FIL
push for 2 sec.) ON and OFF.
• "ã"appears when the narrow filter is ON; "ç"
F-1
appears when the wide filter is ON.
• An optional narrow filter and presetting in initial
set mode (p. 51) is necessary to use the fol-
lowing:
CW/RTTY narrow: FL-100, FL-101 or FL-232
SSB narrow: FL-223
SSB wide: FL-103
NOISE BLANKER (p. 21)
Turns the noise blanker ON and OFF.
NB
• The noise blanker does not function in FM and
WFM modes; the "AM Noise blanker" item in
F-2
initial set mode must be set to ON for the noise
blanker to work in AM mode (p. 53).
METER SELECTION (p. 25)
Selects the type of meter displayed (during
MET
transmit) in the function display.
F-3
• Power, ALC or SWR metering can be select-
ed.
• Only an S-meter is available for receive.
D M4 FUNCTIONS
DURING SSB/AM OPERATION:
M4 VOX
MENU F-1
DURING CW OPERATION:
M4 i/4
MENU F-1
DURING RTTY OPERATION:
M4 1/4
MENU F-1
DURING FM OPERATION:
M4 VOX
MENU F-1
NB MET
F-2 F-3
COM AGC
F-2 F-3
BRK AGC
F-2 F-3
AGC
F-2 F-3
TSQ TON
F-2 F-3
