3

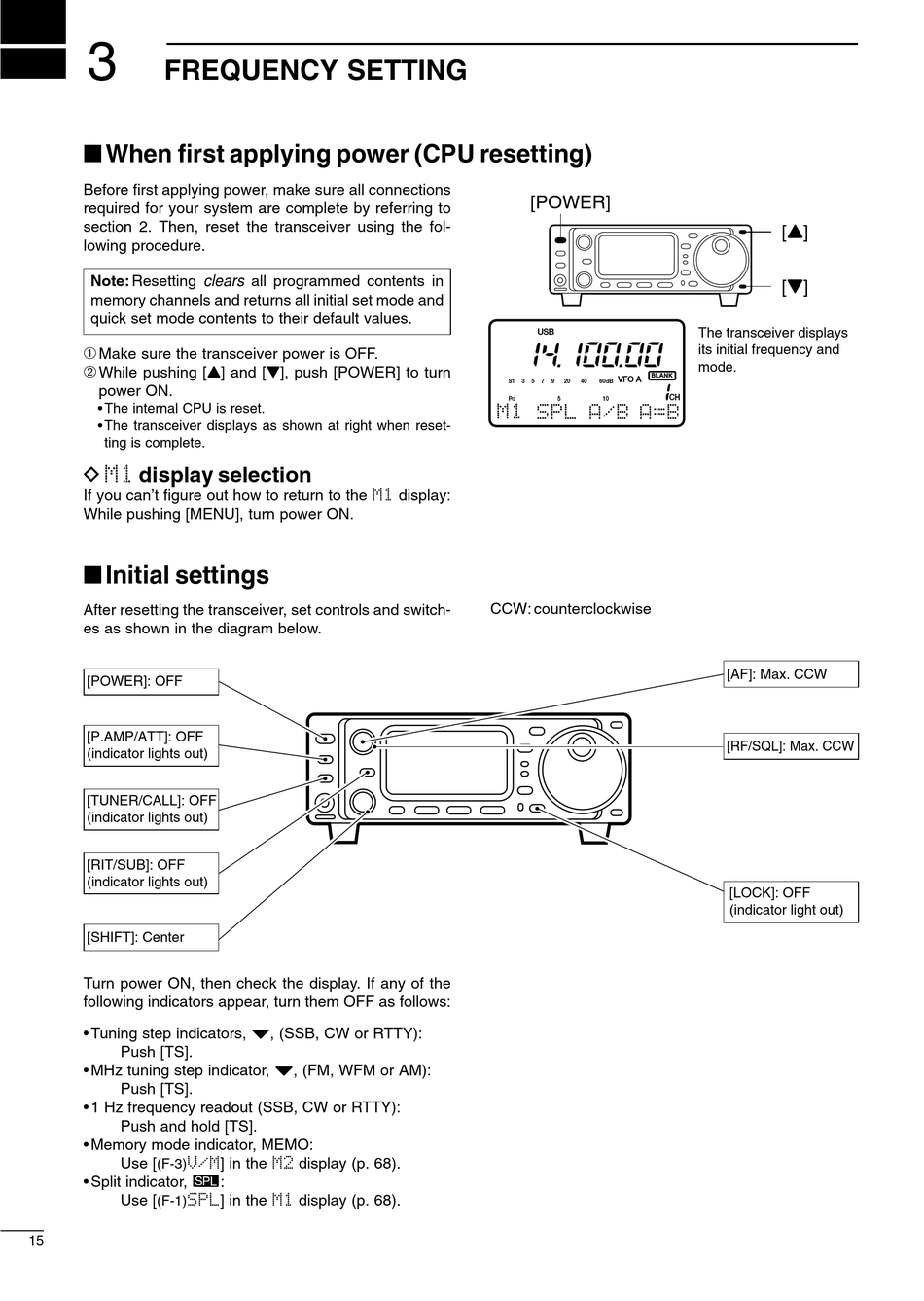

FREQUENCY SETTING

I When first applying power (CPU resetting)
Before first applying power, make sure all connections
required for your system are complete by referring to
section 2. Then, reset the transceiver using the fol-
lowing procedure.
Note: Resetting clears all programmed contents in
memory channels and returns all initial set mode and
quick set mode contents to their default values.
➀
Make sure the transceiver power is OFF.
➁
While pushing [Y] and [Z], push [POWER] to turn
power ON.
• The internal CPU is reset.
• The transceiver displays as shown at right when reset-
ting is complete.
D M1 display selection
If you can't figure out how to return to the M1 display:
While pushing [MENU], turn power ON.

I Initial settings

After resetting the transceiver, set controls and switch-
es as shown in the diagram below.
[POWER]: OFF
[P.AMP/ATT]: OFF
(indicator lights out)
[TUNER/CALL]: OFF
(indicator lights out)
[RIT/SUB]: OFF
(indicator lights out)
[SHIFT]: Center
Turn power ON, then check the display. If any of the
following indicators appear, turn them OFF as follows:
• Tuning step indicators,
Push [TS].
• MHz tuning step indicator,
Push [TS].
• 1 Hz frequency readout (SSB, CW or RTTY):
Push and hold [TS].
• Memory mode indicator, MEMO:
V/M] in the M2 display (p. 68).
Use [
(F-3)
• Split indicator, ä:
SPL] in the M1 display (p. 68).
Use [
(F-1)
15
, (SSB, CW or RTTY):
Z
, (FM, WFM or AM):
Z
[POWER]
USB
BLANK
VFO A
S1 3 5 7 9 20 40 60dB
P 5 10
O
M1 SPL A/B A=B
CCW: counterclockwise
[Y]
[Z]
The transceiver displays
its initial frequency and
mode.
CH
[AF]: Max. CCW
[RF/SQL]: Max. CCW
[LOCK]: OFF
(indicator light out)
