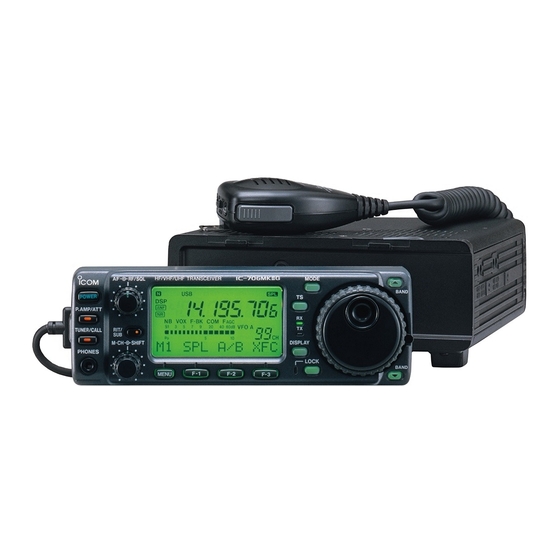

Icom IC-706MkIIG Operation Manual
Hide thumbs
Also See for IC-706MkIIG:
- Service manual (86 pages) ,
- Instruction manual (76 pages) ,
- Quick start manual (15 pages)
Advertisement
Quick Links

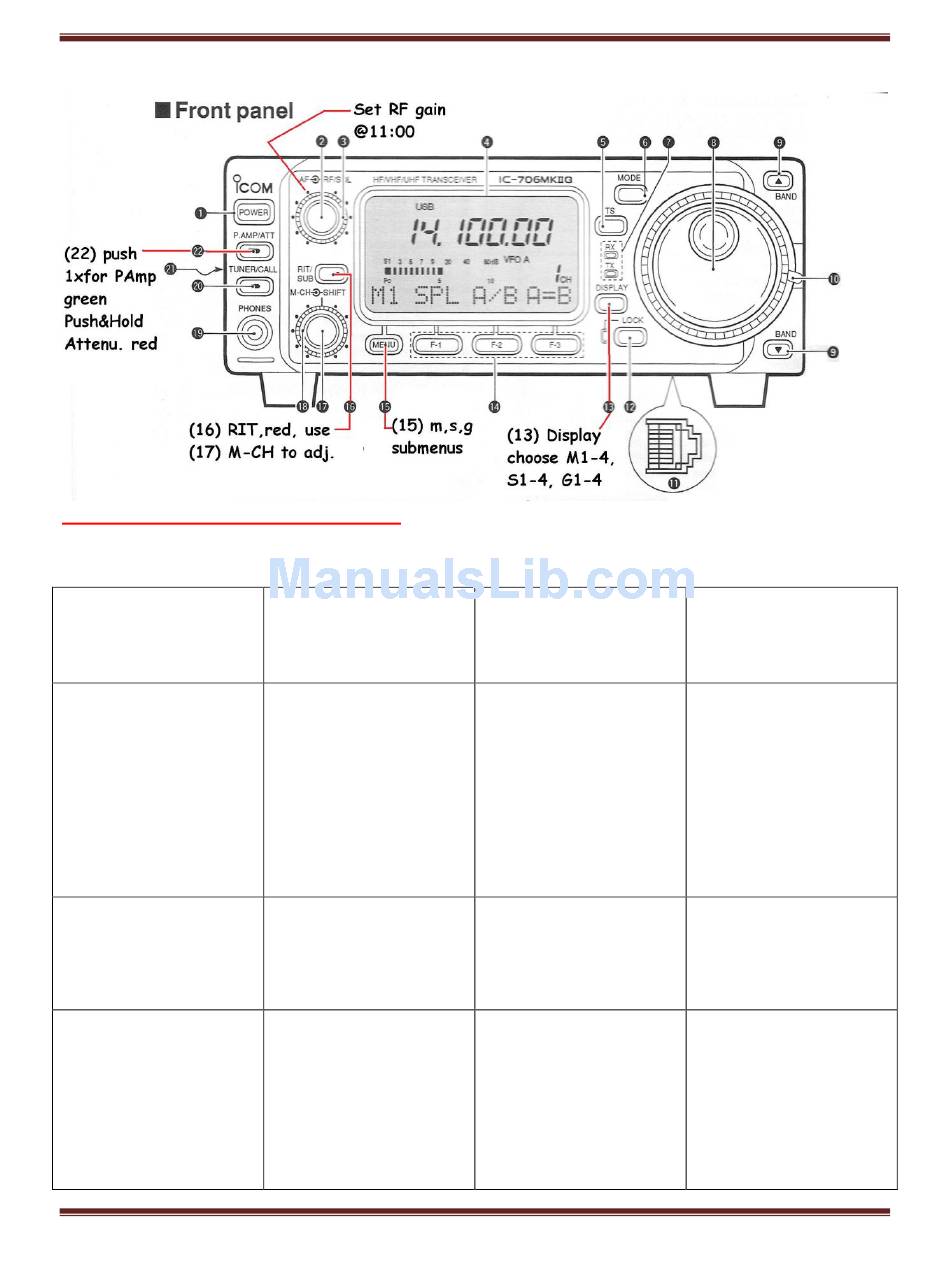

MENUS Accessed by way of MENU key
Quick Press DISPLAY
M1-M4
M1
M2
M3
M4
(Note: there are 4 M4
menus depending on
mode radio is in .Only 2
shown here, SSB/AM
and FM)
KE1RI, Idlenot.com
Icom IC-706MkIIG Operation Guide
to toggle through 3 Menus,
SPL – Split frequency
Long Press for split;
defaults to VFO B freq
on TX (ex., up 5)
MW – Memory Write
While in VFO mode use
(17) dial to choose
mem. Channel. Set
freq.,tone,split,etc. &
push MW 2 sec to
record.
FIL – Select filter
(None Installed, or
choose from ones
installed)
VOX – Voice-Operated
Toggle. Set Gain &
Delay in Quick Set:
Long press DISPLAY,
choose Q3-Q5
M,S,G
:
A/B - Switch between
VFO A and VFO B
M>V - Freq. Transfer
While in VFO mode hold
M>V to move selected
memory to VFO
Becomes MCL, Memory
Clear when selecting M
from V/M; clears
selected mem. channel
NB – Noise Blanker
For ignition noise only
(SSB/AM) COM –Speech
Com.Toggle on/off To set up
select ALC meter M3 in Quick
Set sel. MIKE GAIN,set 2-5 on
voice.M4>COMP,speak/adj.
(FM) –Repeater. duplex;push
&hold to auto-set or push to
toggle up/down/off
Manual p.3-4
A=B (XFC when split
on)
Set both VFO's to same
freq.
V/M Toggle between
VFO and Memory
Mode; rotate dial M-CH
(17) to choose
memories
MET – Meter Selection
Toggle: Power, SWR, ALC.
To display SWR:
CW mode, hit PTT, read
notches on scale
(SSB/AM)AGC- Toggle
between Fast & Slow.
(FM) TON – Toggles rpt.
tone set in initial set
mode
Page 1
