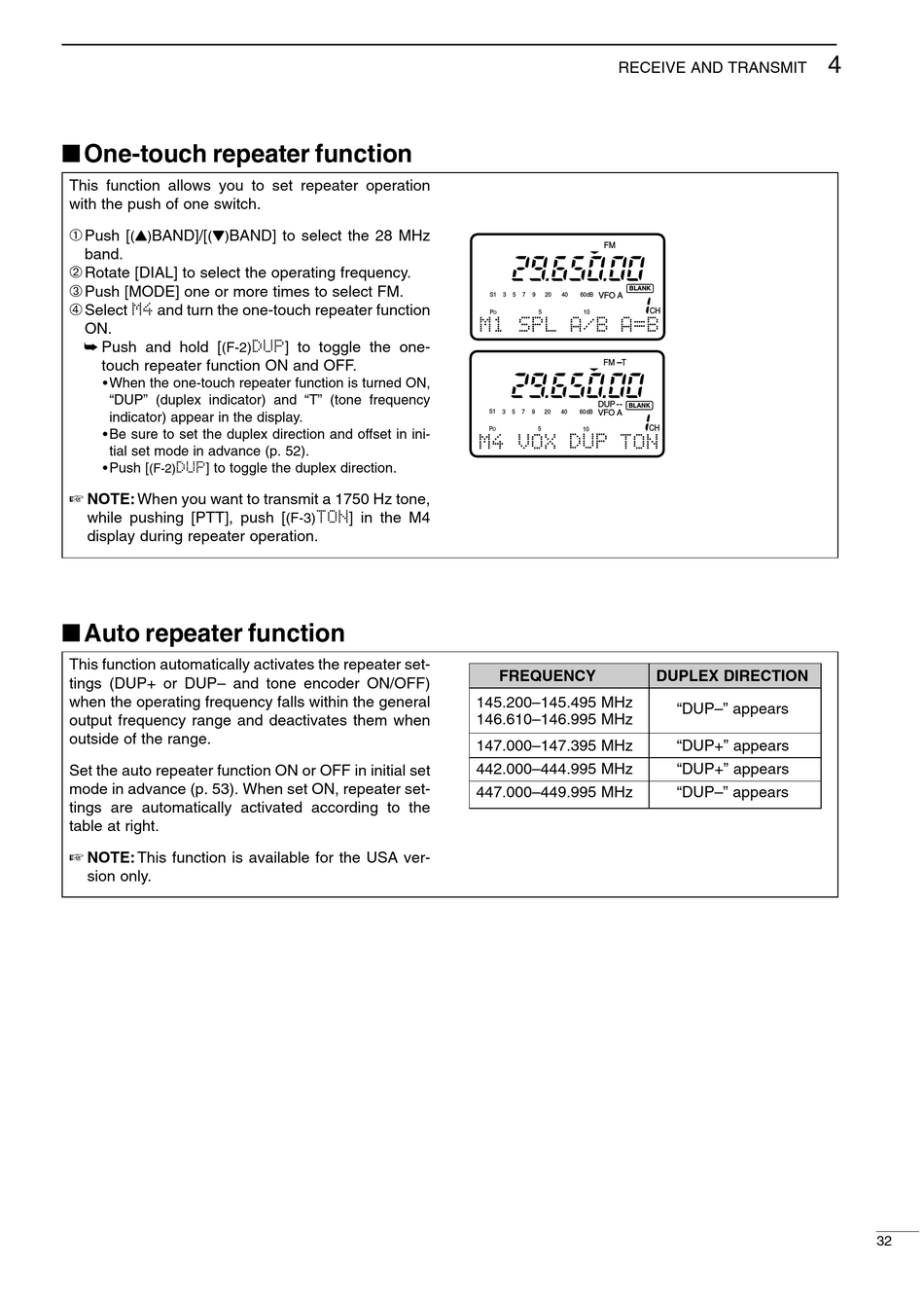

I One-touch repeater function
This function allows you to set repeater operation
with the push of one switch.
➀
Push [ BAND]/[ BAND] to select the 28 MHz
(Y) (Z)
band.
➁
Rotate [DIAL] to select the operating frequency.
➂
Push [MODE] one or more times to select FM.
➃
Select M4 and turn the one-touch repeater function
ON.
➥ Push and hold [
(F-2)
touch repeater function ON and OFF.
• When the one-touch repeater function is turned ON,
"DUP" (duplex indicator) and "T" (tone frequency
indicator) appear in the display.
• Be sure to set the duplex direction and offset in ini-
tial set mode in advance (p. 52).
DUP] to toggle the duplex direction.
• Push [
(F-2)
NOTE: When you want to transmit a 1750 Hz tone,
while pushing [PTT], push [
display during repeater operation.

I Auto repeater function

This function automatically activates the repeater set-
tings (DUP+ or DUP– and tone encoder ON/OFF)
when the operating frequency falls within the general
output frequency range and deactivates them when
outside of the range.
Set the auto repeater function ON or OFF in initial set
mode in advance (p. 53). When set ON, repeater set-
tings are automatically activated according to the
table at right.
NOTE: This function is available for the USA ver-
sion only.
DUP] to toggle the one-
TON] in the M4
(F-3)
RECEIVE AND TRANSMIT
FM
BLANK
S1 3 5 7 9 20 40 60dB VFO A
CH
P 5 10
O
M1 SPL A/B A=B
FM T
DUP
BLANK
S1 3 5 7 9 20 40 60dB VFO A
CH
P 5 10
O
M4 VOX DUP TON
FREQUENCY
145.200–145.495 MHz
146.610–146.995 MHz
147.000–147.395 MHz
442.000–444.995 MHz
447.000–449.995 MHz
4

DUPLEX DIRECTION

"DUP–" appears
"DUP+" appears
"DUP+" appears
"DUP–" appears
32
