4
RECEIVE AND TRANSMIT

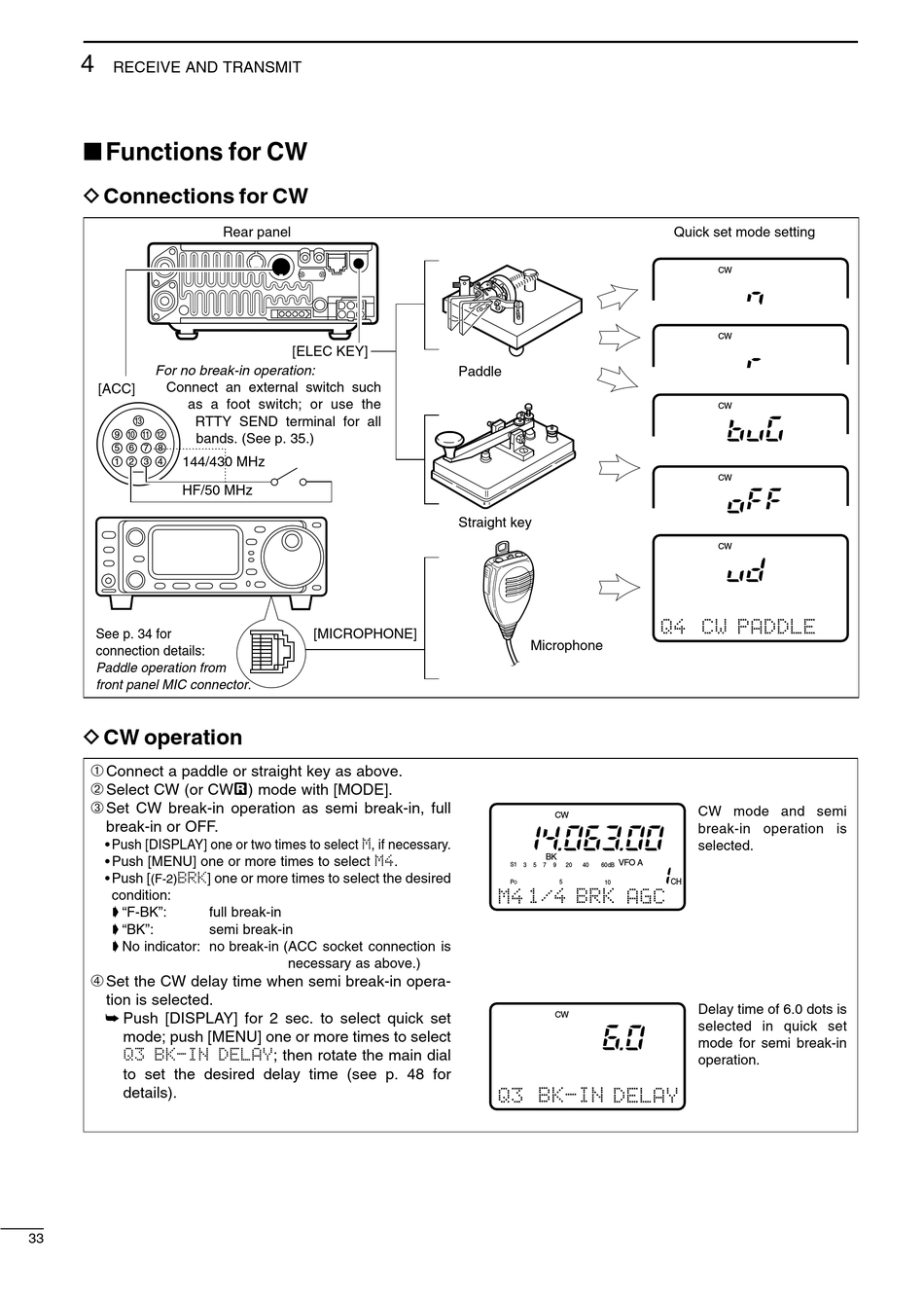

I Functions for CW

D Connections for CW

For no break-in operation:
Connect an external switch such
[ACC]
as a foot switch; or use the
RTTY SEND terminal for all
13
9 10 11 12
bands. (See p. 35.)
5 6 7 8
144/430 MHz
1 2 3 4
HF/50 MHz
See p. 34 for
connection details:
Paddle operation from
front panel MIC connector .
D CW operation
➀
Connect a paddle or straight key as above.
➁
Select CW (or CWå) mode with [MODE].
➂
Set CW break-in operation as semi break-in, full
break-in or OFF.
• Push [DISPLAY] one or two times to select M, if necessary.
• Push [MENU] one or more times to select M4.
BRK] one or more times to select the desired
• Push [
(F-2)
condition:
➧ "F-BK":
➧ "BK":
➧ No indicator: no break-in (ACC socket connection is
➃
Set the CW delay time when semi break-in opera-
tion is selected.
➥ Push [DISPLAY] for 2 sec. to select quick set
mode; push [MENU] one or more times to select
Q3 BK-IN DELAY; then rotate the main dial
to set the desired delay time (see p. 48 for
details).
33
Rear panel
[ELEC KEY]
[MICROPHONE]
full break-in
semi break-in
necessary as above.)
Paddle
Straight key
Microphone
CW
BK
VFO A
S1 3 5 7 9 20 40 60dB
P 5 10
O
M4 1/4 BRK AGC
CW
Q3 BK-IN DELAY
Quick set mode setting
CW
CW
CW
CW
CW
Q4 CW PADDLE
CW mode and semi
break-in operation is
selected.
CH
Delay time of 6.0 dots is
selected in quick set
mode for semi break-in
operation.
