I External antenna tuners and linear amplifier

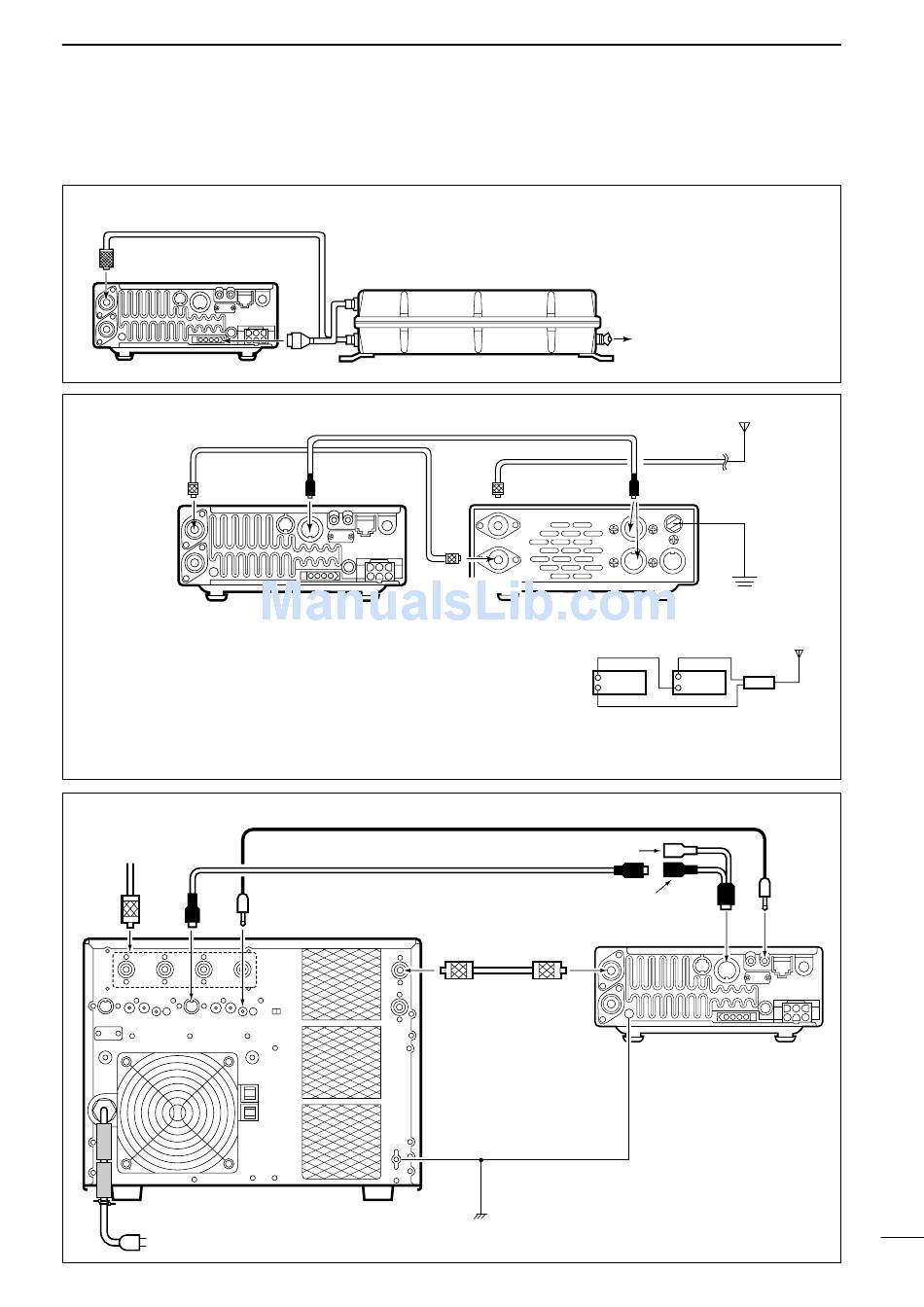

CONNECTING THE AH-4
Coaxial cable
(from the AH-4)
ANT 1
Transceiver
CONNECTING THE AT-180
Coaxial cable supplied
with the AT-180
[ANT 1]
IC-706
Note:
• Turn the IC-706MKIIG's power
OFF when connecting the AT-
180, otherwise, the CPU may
malfunction and the AT-180
may not function properly.
• The OPC-742 is required when
using both the AT-180 and a 2
m linear amplifier.
CONNECTING THE IC-PW1
To an
antenna
ANT ACC-1
IC-PW1
AC outlet (220–240 V)
AH-4
ACC cable supplied with the AT-180
[ACC]
[TRANSCEIVER]
Do not connect [ANT 2] to the
AT-180. When using an HF to 2 m
wide antenna, use a duplexer
between the AT-180 and antenna
since 2 m signals do not pass
through the AT-180.
Mini-plug cable
ACC cable
REMOTE
INPUT-1
INSTALLATION AND CONNECTIONS
The AH-4 can be used for the HF bands and 50
MHz band only.
AT-180 [ACC]
Transceiver
[ANT 1]
[ANT 2]
OPC-599 conversion cable
7-pin side
ANT1
Coaxial cable
GND
GND
To the AH-2b or
an antenna element
HF
to 6 m
antenna
one of two
connectors
Ground
HF to 2 m
antenna
AT-180
Duplexer
ACC REMOTE
Transceiver
2
