3

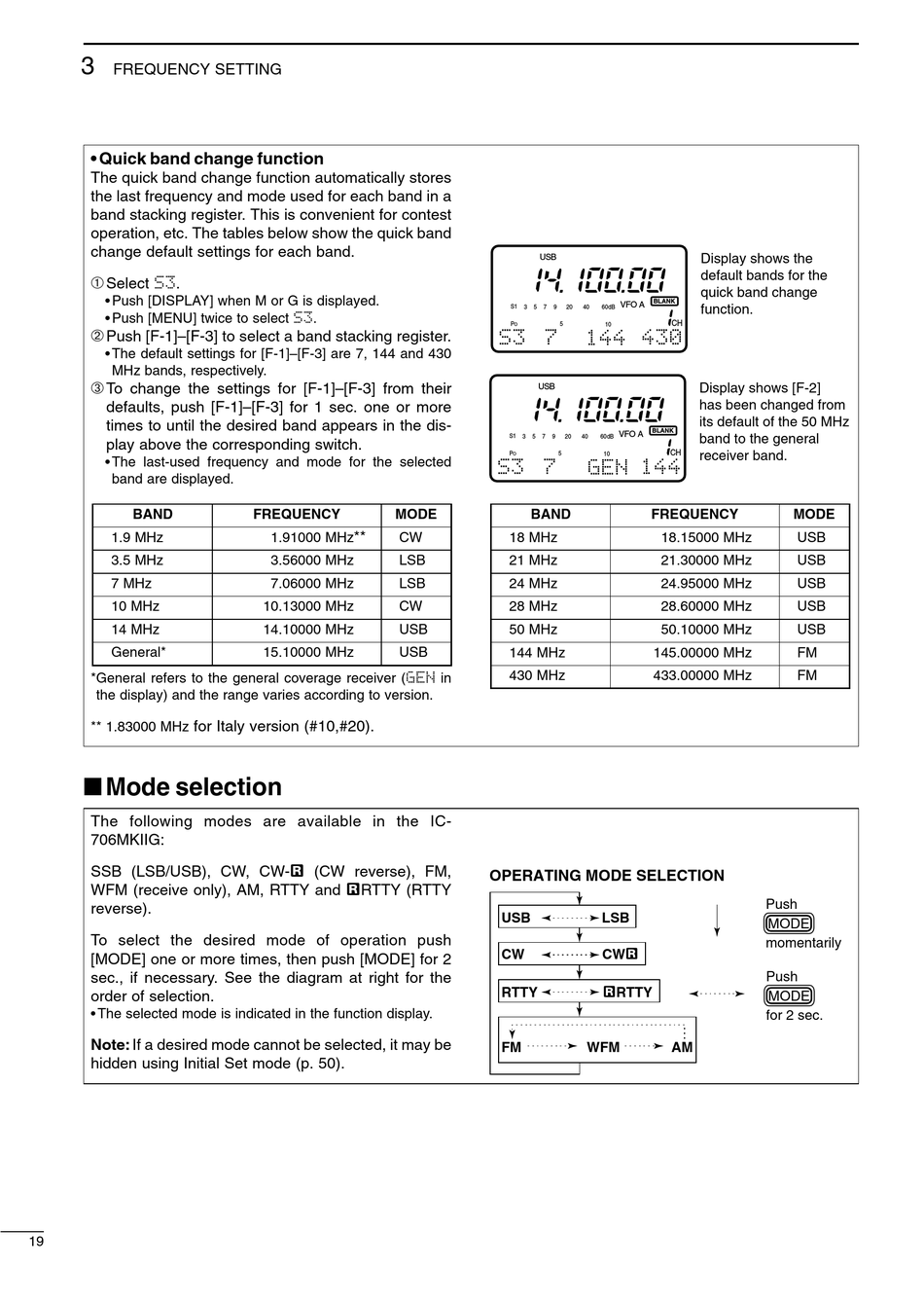

FREQUENCY SETTING
• Quick band change function
The quick band change function automatically stores
the last frequency and mode used for each band in a
band stacking register. This is convenient for contest
operation, etc. The tables below show the quick band
change default settings for each band.
➀
Select S3.
• Push [DISPLAY] when M or G is displayed.
• Push [MENU] twice to select S3.
➁
Push [F-1]–[F-3] to select a band stacking register.
• The default settings for [F-1]–[F-3] are 7, 144 and 430
MHz bands, respectively.
➂
To change the settings for [F-1]–[F-3] from their
defaults, push [F-1]–[F-3] for 1 sec. one or more
times to until the desired band appears in the dis-
play above the corresponding switch.
• The last-used frequency and mode for the selected
band are displayed.
BAND
1.9 MHz
3.5 MHz
7 MHz
10 MHz
14 MHz
General*
*General refers to the general coverage receiver (GEN in
the display) and the range varies according to version.
for Italy version (#10,#20).
** 1.83000 MHz

I Mode selection

The following modes are available in the IC-
706MKIIG:
SSB (LSB/USB), CW, CW-å (CW reverse), FM,
WFM (receive only), AM, RTTY and åRTTY (RTTY
reverse).
To select the desired mode of operation push
[MODE] one or more times, then push [MODE] for 2
sec., if necessary. See the diagram at right for the
order of selection.
• The selected mode is indicated in the function display.
Note: If a desired mode cannot be selected, it may be
hidden using Initial Set mode (p. 50).
19
FREQUENCY MODE
**
1.91000 MHz CW
3.56000 MHz LSB
7.06000 MHz LSB
10.13000 MHz CW
14.10000 MHz USB
15.10000 MHz USB
USB
BLANK
VFO A
S1 3 5 7 9 20 40 60dB
P 5 10
O
S3 7 144 430
USB
BLANK
VFO A
S1 3 5 7 9 20 40 60dB
P 5 10
O
S3 7 GEN 144
BAND FREQUENCY
18 MHz 18.15000 MHz
21 MHz 21.30000 MHz
24 MHz 24.95000 MHz
28 MHz 28.60000 MHz
50 MHz 50.10000 MHz
144 MHz 145.00000 MHz
430 MHz 433.00000 MHz

OPERATING MODE SELECTION

USB LSB
CW CWå
åRTTY
RTTY
FM WFM
Display shows the
default bands for the
quick band change
function.
CH
Display shows [F-2]
has been changed from
its default of the 50 MHz
band to the general
CH
receiver band.
MODE
USB
USB
USB
USB
USB
FM
FM
Push
MODE
momentarily
Push
MODE
for 2 sec.
AM
