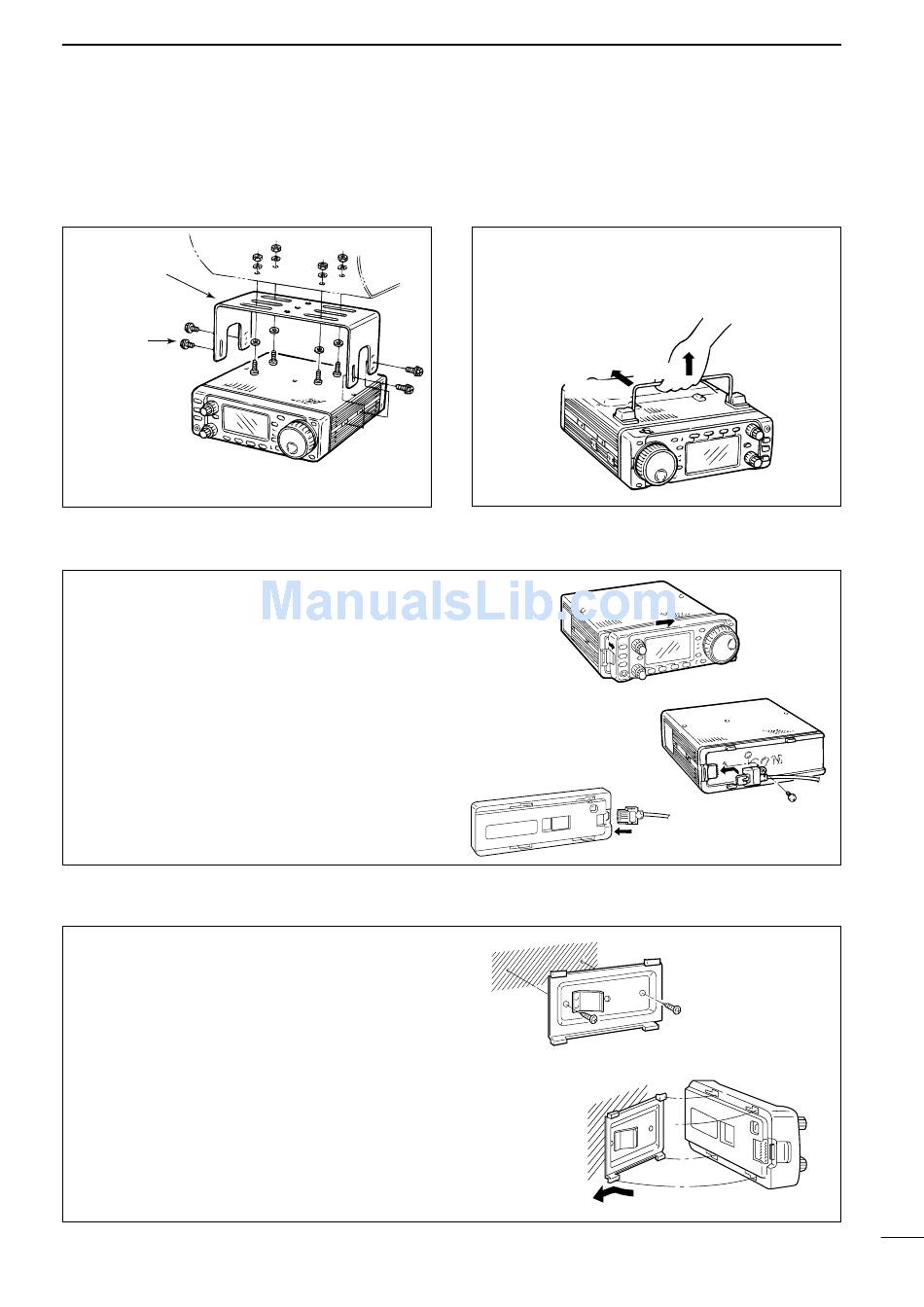

I Installation

D Single body mounting

MB-62
(optional)
Supplied with
the MB-62*
*CAUTION: Non-supplied screws (longer than 8 mm)
may damage the internal units.

D Front panel separation

➀
While pulling the panel release button towards you,
slide the front panel to the right (fig. 1).
➁
Attach the optional OPC-581 to the main body and
tighten the supplied screw as in fig. 2.
➂
Attach the other end of the OPC-581 to the
detached front panel as in fig. 3.

D Front panel mounting

➀
Attach the MB-63 to a flat surface using the two
supplied screws (fig. 1).
➁
Fix the detached front panel to the MB-63 as illus-
trated in fig. 2.
Be careful of the orientation of the MB-63, other-
wise, the front panel may become attached in the
opposite direction.
INSTALLATION AND CONNECTIONS
D Stand
To raise the stand:
With the transceiver upside down, pull the stand
towards the rear panel and then upwards, as illus-
trated below.
then up
Pull back
fig. 1
fig. 3
2
fig. 2
fig. 1
fig. 2
