D Repeater operation
A repeater amplifies received signals and retransmits
them at a different frequency. When using a repeater,
the transmit frequency is shifted from the receive fre-
quency by an offset frequency. A repeater can be
accessed using split frequency operation with the
shift frequency set to the repeater's offset frequency.
➀
Set the offset frequency and turn ON the quick split
function in initial set mode in advance (p. 52).
• If the quick split function is turned OFF, both transmit
and receive must be set separately.
➁
Push [MODE] one or more times to select FM
mode, then set the receive frequency.
➂
Select a suitable tone frequency or the 1750 Hz
tone burst in quick set mode.
➥ Push [DISPLAY] for 2 sec., then push [MENU]
one or more times to select "Q4 RPTR TONE."
• If FM mode has not been selected, this item does
not appear.
➥ Rotate the main dial to set a subaudible tone fre-
quency or the 1750 Hz tone burst function.
➥ Push [DISPLAY] to exit quick set mode.
➃
SPL] for 2 sec. (in the M1 display) to
Push [
(F-1)
activate the split frequency function (duplex func-
tion) with the pre-selected offset.
• When a subaudible tone frequency (excepting 1750 Hz)
is selected in ➂, "FM-T" is selected simultaneously.
➄
Push and hold [PTT] to transmit; release [PTT] to
receive.
• When a 1750 Hz tone burst is selected, push and hold
M4
TON] in the
[ display while pushing [PTT] to
(F-3)
send the 1750 Hz tone burst.
➅
To check the repeater input frequency (direct sig-
nal from the other station), push and hold
XFC] M1
[
(F-3) in the display
➆
To return to simplex operation, push [
CONVENIENT
Each memory channel can store a tone frequency
(subaudible tones or a tone burst) and an offset fre-
quency, as well as the operating frequency. Store
repeater information into memory channels for quick
and easy access to repeaters.
.
SPL].
(F-1)
RECEIVE AND TRANSMIT
12 QUICK SPLIT
Q6 RPTR TONE
FM T FM T
SPL
VFO A
S1 3 5 7 9 20 40 60dB
P 5 10
O
M4 VOX DUP TON
PROGRAMMING DUPLEX SHIFT FREQUENCY
➀
Push [POWER] to turn power OFF.
➁
While pushing [LOCK], push [POWER] to turn
power ON and enter initial set mode.
➂
144M" using [MENU] or the
Select "DUP
[UP]/[DN] keys, then rotate the main dial to select
the desired duplex offset.
• The duplex offset can be selected from –4000 kHz to
+4000 kHz.

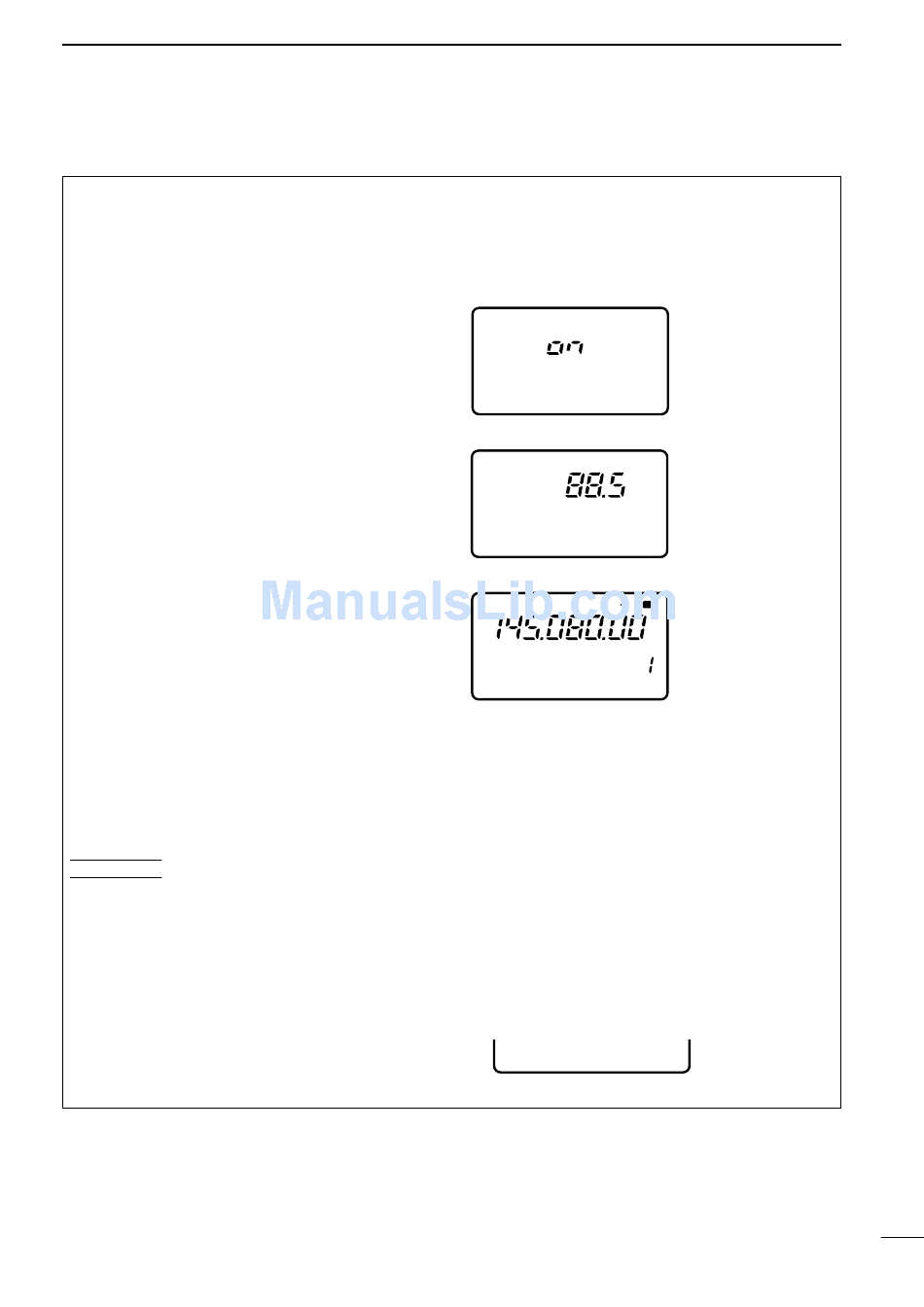

17 DUP 144M
Turn the quick split
function ON.
(Initial set mode default
is ON.)
Set the tone frequency
(quick set mode).
See p. 49 for setting de-
tails and available fre-
quencies.
CH
4
30
