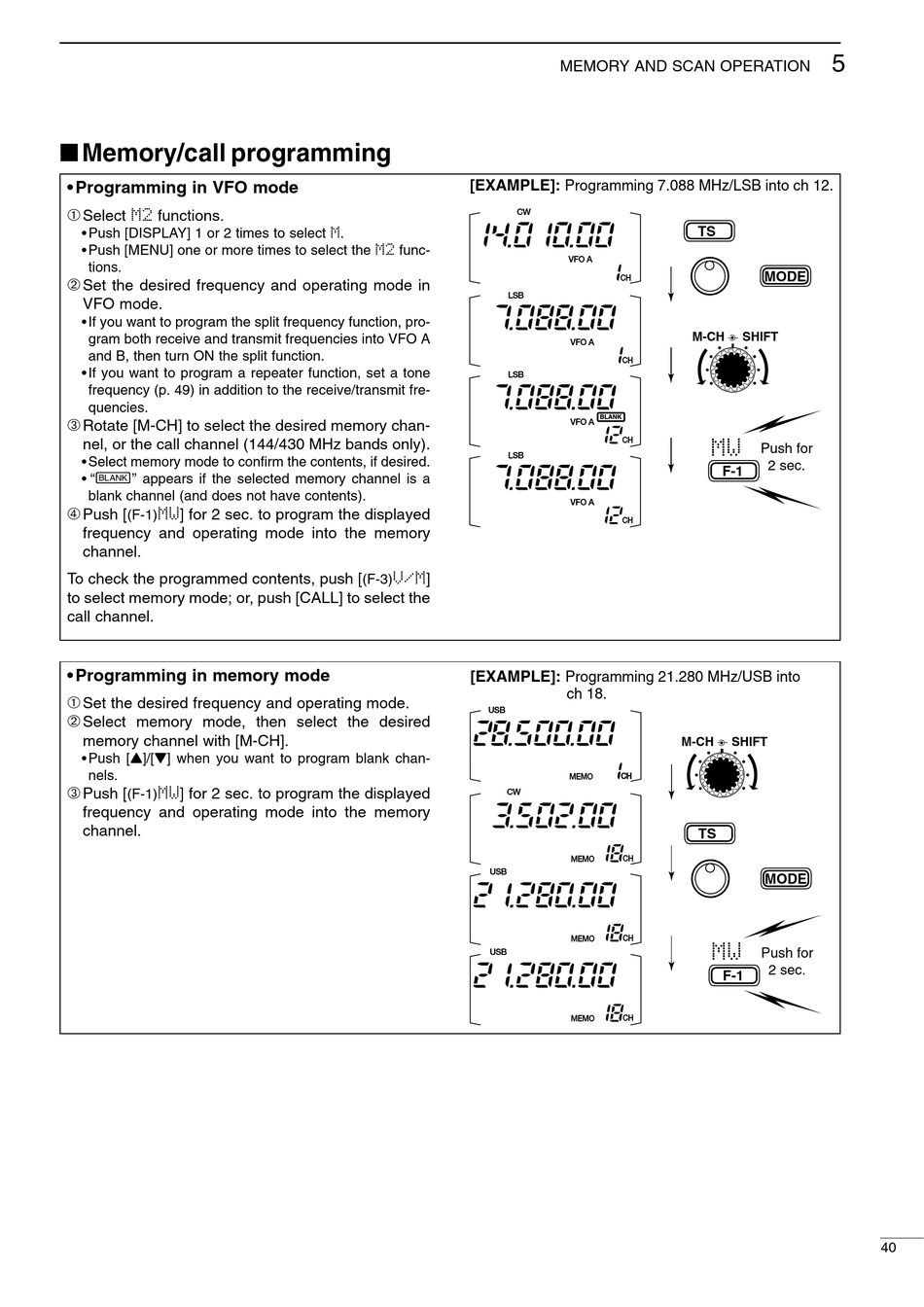

I Memory/call programming

• Programming in VFO mode

➀
Select M2 functions.
• Push [DISPLAY] 1 or 2 times to select M.
• Push [MENU] one or more times to select the M2 func-
tions.
➁
Set the desired frequency and operating mode in
VFO mode.
• If you want to program the split frequency function, pro-
gram both receive and transmit frequencies into VFO A
and B, then turn ON the split function.
• If you want to program a repeater function, set a tone
frequency (p. 49) in addition to the receive/transmit fre-
quencies.
➂
Rotate [M-CH] to select the desired memory chan-
nel, or the call channel (144/430 MHz bands only).
• Select memory mode to confirm the contents, if desired.
• "}" appears if the selected memory channel is a
blank channel (and does not have contents).
➃
MW] for 2 sec. to program the displayed
Push [
(F-1)
frequency and operating mode into the memory
channel.
To check the programmed contents, push [
to select memory mode; or, push [CALL] to select the
call channel.

• Programming in memory mode

➀
Set the desired frequency and operating mode.
➁
Select memory mode, then select the desired
memory channel with [M-CH].
• Push [Y]/[Z] when you want to program blank chan-
nels.
➂
MW] for 2 sec. to program the displayed
Push [
(F-1)
frequency and operating mode into the memory
channel.
[EXAMPLE]: Programming 7.088 MHz/LSB into ch 12.
CW
LSB
LSB
LSB
V/M]
(F-3)
[EXAMPLE]: Programming 21.280 MHz/USB into
USB
CW
USB
USB
MEMORY AND SCAN OPERATION
TS
VFO A
CH
M-CH
VFO A
CH
BLANK
VFO A
CH
MW
F-1
VFO A
CH
ch 18.
M-CH SHIFT
CH CH
MEMO
TS
MEMO CH
CH
MEMO
MW
F-1
CH
MEMO
5
MODE
SHIFT
SPLIT
Push for
2 sec.
MODE
SPLIT
Push for
2 sec.
40
