Remote Control Function; Remote Control Setting - Icom IC-FR3000 Remote Control Manual

1

REMOTE CONTROL FUNCTION

1-1 REMOTE CONTROL SETTING

D D System control
To enable remote control functions the DTMF settings (RX System Code, TX System Code, DTMF Setting,
TX Code CH (Autodial), etc.) must be pre-programmed using CS-FR3000 cloning software. Use CS-
FR3000 help screens for description of functions and operation and for programming details.

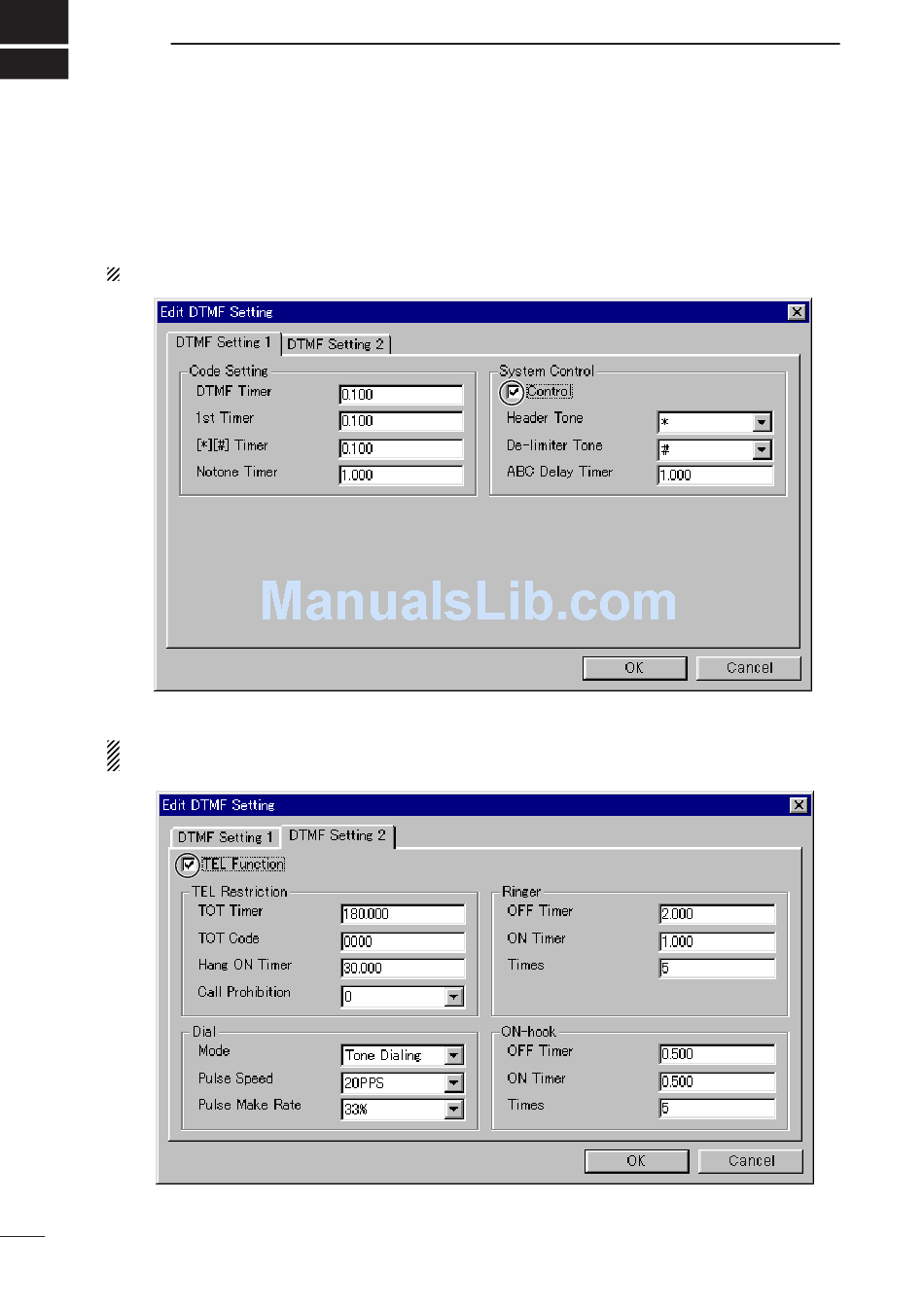

NOTE:
Check the "Control" check-box to enable remote control operation using DTMF signals.
NOTE:
Check the "TEL Function" check-box to enable remote control operation using DTMF signals
from the telephone line.
1
