Installation; Unpacking; Mounting The Transceiver; Antenna - Icom IC-725 Instruction Manual

2

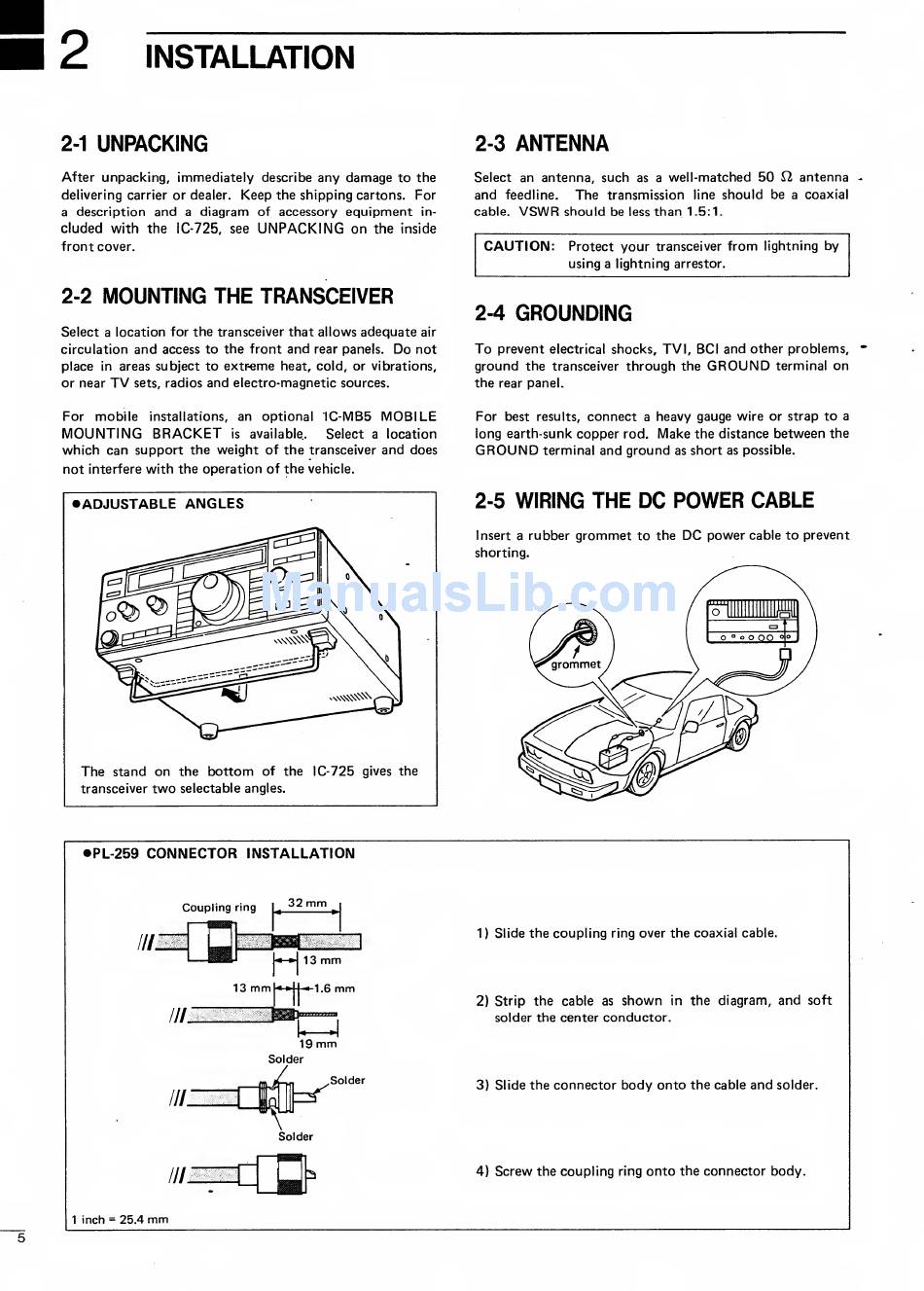

INSTALLATION
2-1
UNPACKING
2-3
ANTENNA
After unpacking, immediately
describe
any
damage
to the
delivering
carrier
or
dealer.
Keep
the shipping cartons.
For
a description
and
a
diagram
of accessory
equipment
in-
cluded with
the IC-725, see
UNPACKING
on
the inside
front cover.
2-2
MOUNTING THE
TRANSCEIVER
Select
a
location for
the transceiver that allows adequate
air
circulation
and
access to the front
and
rear panels.
Do
not
place
in
areas subject to extr-eme heat, cold, or vibrations,
or near
TV
sets,
radios
and electro-magnetic
sources.
For mobile
installations,
an
optional
IC-MB5
MOBILE
MOUNTING BRACKET
is
available..
Select
a
location
which can support the weight of the
transceiver
and
does
not
interfere
with the operation of the
vehicle.
•ADJUSTABLE ANGLES
The
stand
on
the
bottom
of the IC-725
gives
the
transceiver
two
selectable angles.
Select
an antenna, such
as a
well-matched
50
12
antenna
and
feedline.
The
transmission
line
should be
a
coaxial
cable.
VSWR
should be
less
than
1.5:1.
CAUTION:
Protect
your
transceiver
from
lightning
by
using
a lightning arrestor.
2-4
GROUNDING
To
prevent
electrical
shocks,
TVI, BCI and other problems,
ground
the
transceiver
through the
GROUND
terminal
on
the
rear panel.
For
best results,
connect
a
heavy gauge
wire or strap to a
long earth-sunk
copper
rod.
Make
the distance
between
the
GROUND
terminal
and ground
as
short
as
possible.
2-5 WIRING
THE DC
POWER
CABLE
Insert a
rubber
grommet
to the
DC
power
cable to prevent
shorting.
PL-259
CONNECTOR
INSTALLATION
Solder
1
)
Slide
the coupling
ring
over the coaxial cable.
2) Strip
the cable
as
shown
in
the diagram,
and
soft
solder the center
conductor.
3) Slide
the connector
body
onto the cable
and
solder.
4)
Screw
the coupling
ring
onto
the
connector body.
1
inch
=
25.4
mm
