Receive Data Rate

Enter N to use the dialog shown in figure 3-58 to set the Receive Data Rate for
the selected Demod's Home State.
Note that the valid range for this parameter will vary depending on the Demod-
ulation Type, Coding Rate, and FAST feature Data Rate.

Receive FEC Type

Enter O to use the dialog shown in figure 3-59 to set the Receive FEC Type for
the selected Demod's Home State. Turbo must be selected when operating in
Vipersat mode.

Receive Coding Rate

Enter P to use the dialog shown in figure 3-60 to set the Receive Coding Rate
for the selected Demod's Home State.
3-46

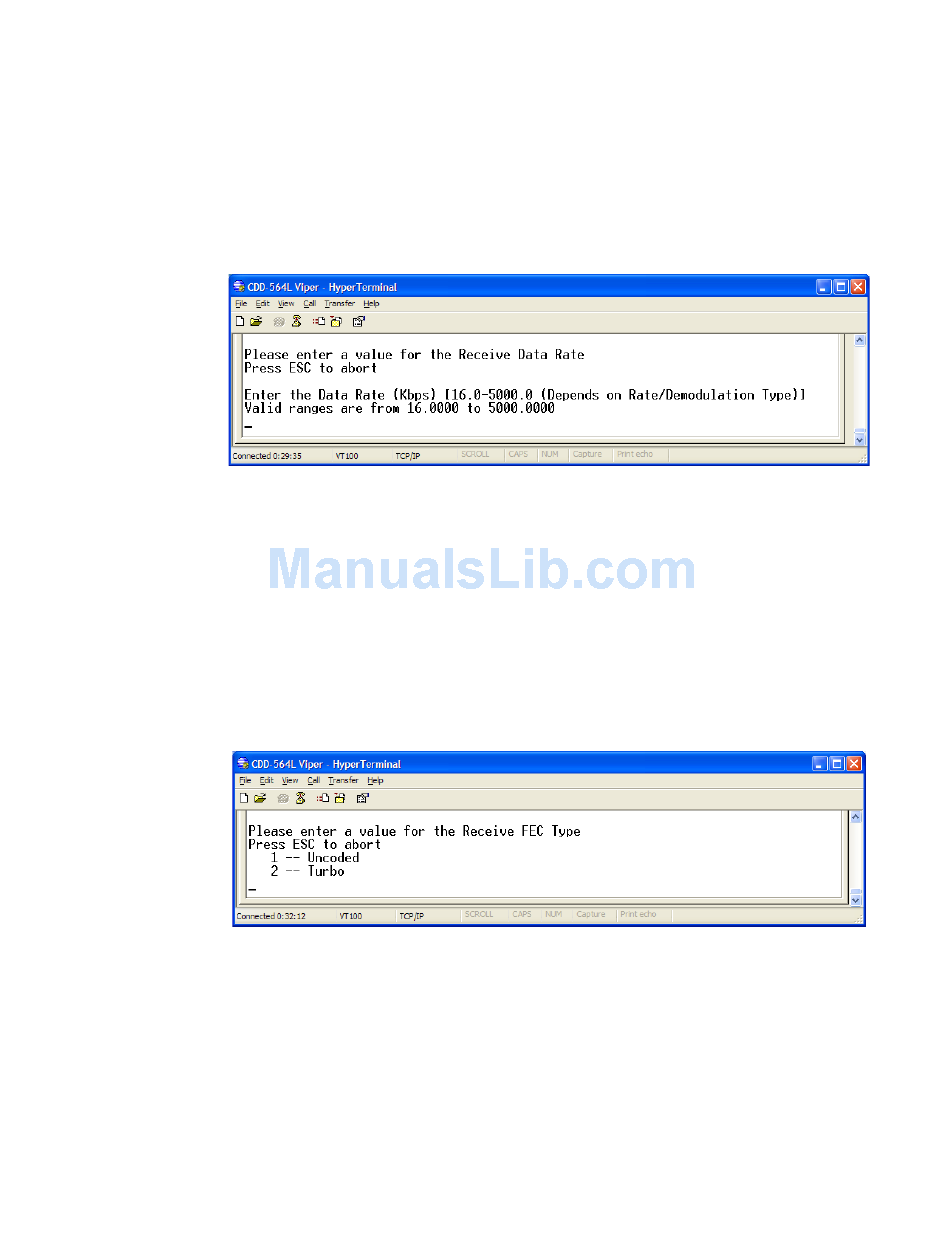

Figure 3-58
Receive Data Rate prompt
Figure 3-59
Receive FEC Type prompt
